EVH - 5150III 2X12 50W Combos
SKU: #385762
Model: #225-4000-010
Your Price:   $1,619.99 CDN
2 models to choose from:

Description

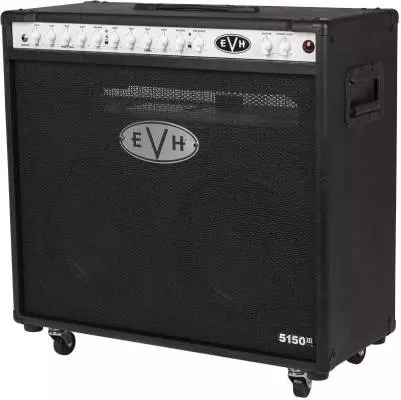

The EVH 5150III Combo is a tube combo amp with two Celestion G12M 8-ohm speakers and three channels (clean, crunch and lead). Powered by seven JJ ECC83 (12AX7) preamp tubes and two JJ 6L6 power tubes, it also features front-panel adjustable power output from 50 watts down to one watt.

Features include a single input, rear-panel selectable output impedance (4, 8 or 16 ohms), versatile controls (gain, low, mid, high, volume, master presence, rear-panel master resonance, power level, reverb), built-in DSP reverb, rear-panel MIDI input and preamp output, two rear-panel parallel speaker outputs, rear-panel effects loop and headphone jack (mutes power amp), and four-button footswitch (controls all three channels and reverb).

Construction features a custom-shaped birch cabinet with special internal baffling, vintage-style chicken-head control knobs, red jewel, recessed metal side handles, plastic top strap handle, and casters. Fitted cover optional.

Available in Black and Ivory.

ELECTRONICS

Voltage: 120V - 2254000010, 120V - 2254000410
Effects Loop: 1/4" - (Send/Return)
Inputs: One - 1/4"
Headphone Jack: 1/4" Stereo
Line Out: One - (1/4")
Extension Speaker Jack: Two 1/4" Parallel
Channels:Three - (Clean, Crunch, and Lead)
Power Handling: Adjustable-50 watts RMS Max Down to 1 watt
Controls: Gain, Low, Mid, High, Volume, Master Presence, Rear Master Resonance, Power Level, Reverb

HARDWARE

Cabinet Material: 7-Ply 5/8" Birch Plywood
Pilot Light Jewel: Red Jewel
Handle: Two Spring-Loaded Side Handles and One Molded Plastic Top Handle
Cover/Grill Cloth: EVH Woven with Large Logo and Perforated Grille Panel
Output Impedance: 4, 8 or 16 ohms (Selectable)
Amplifier Length: 12" (30.4 cm)
Amplifier Width: 27.5" (70 cm)
Amplifier Height: 25" (63.5 cm)
Amplifier Weight: 84 lbs (38.10 kg)
Effects: Reverb

SPEAKERS

Speaker: Two - 12" Celestion G12M
Speaker Impedance: 8 ohms

TUBES

Preamp Tubes: 7 JJ ECC83 (12AX7)
Power Tubes: 2 JJ 6L6

MISCELLANEOUS

Unique Features: Midi Channel and Reverb switchable, master resonance control

ACCESSORIES

Footswitch: 4-Button Footswitch Included
Casters: Pop-out Casters Included
Knobs: Chicken-Head Style Pointer
Accessories: 4-Button EVH 1/4" Footswitch. Ch1, CH2, CH3, Reverb Included

Reviews



evh 5150iii 50 watt combo
Features Quality
Value Overall
Product Experience I own it Closest Store Ottawa Ontario
I had this amp in the 50 watt head version.It was good but I didn't like the volume difference between the green and blue channels. Tried many other amps still not happy.I noticed this version as a combo and was blown away. I feel the speakers make a difference with this amp. Also the volume jump from the green to blue channel wasn't there. The first one I owned had some issues so I traded it for another one .The second one was much better and has zero issues.Overall very happy with the amp.As a note the amp has tons of gain so maxing everything will not make this amp sound good a little goes a long way. I love the attenuator works great! It's a little on the heavy side about the same as a 4 by 12 cabinet.

Posted by Tim on Nov 25, 2013


Everything your other amps aren't...
Features Quality
Value Overall
Product Experience I own it Closest Store Woodstock Ontario
I have wanted a 5150 amp for ever. This one finally had everything I wanted in one box. The verb is great, the pseudo attenuator is handy, and it has serious gain and thump. What else is there you need from an amp? But beware, big and heavy, it has casters for a reason. Best amp purchase I have ever made, got mine in ivory, cool factor 10 :)

Posted by anonymous on Sep 14, 2013
