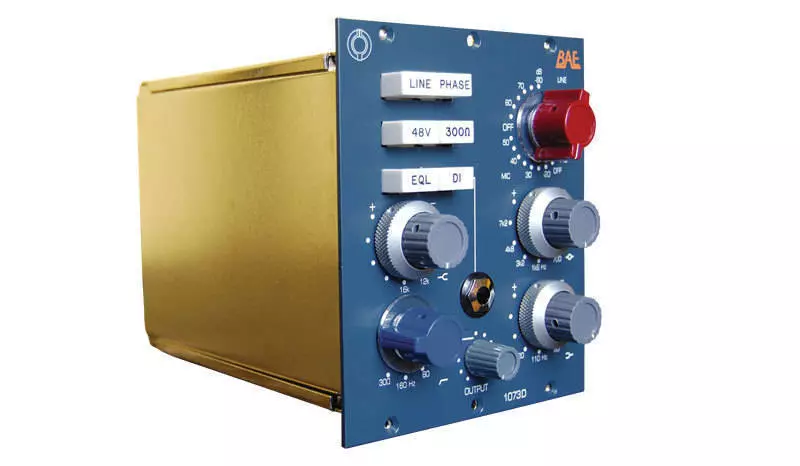

BAE Audio 1073 Deluxe 500 Series Module Preamp
Additional Photos:
Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.
High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
Phase Button: 180
Frequency Response
10Hz to -3dB at 55kHz
3 Band Equaliser
HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
SPECIFICATIONS
High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
Mic Input Impedance: ≈1200/300 Ω
Line Input Impedance: 10k Ω
DI Input Impedance: ≈150k Ω
Output Impedance: 35 Ω
Common Mode Rejection Ratio: 100dB min @ 60Hz
Maximum Output Level: +27.4 dBu @ 600Ω
Power Requirements: +/- 16VDC - 120mA
Gain dB: 0 to 70 dB
Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
Weight: 5 LBS / 2.72 KG
Dimensions in Inches (Module/Rackmount): 4.5W x 5.25H x 5.5D
