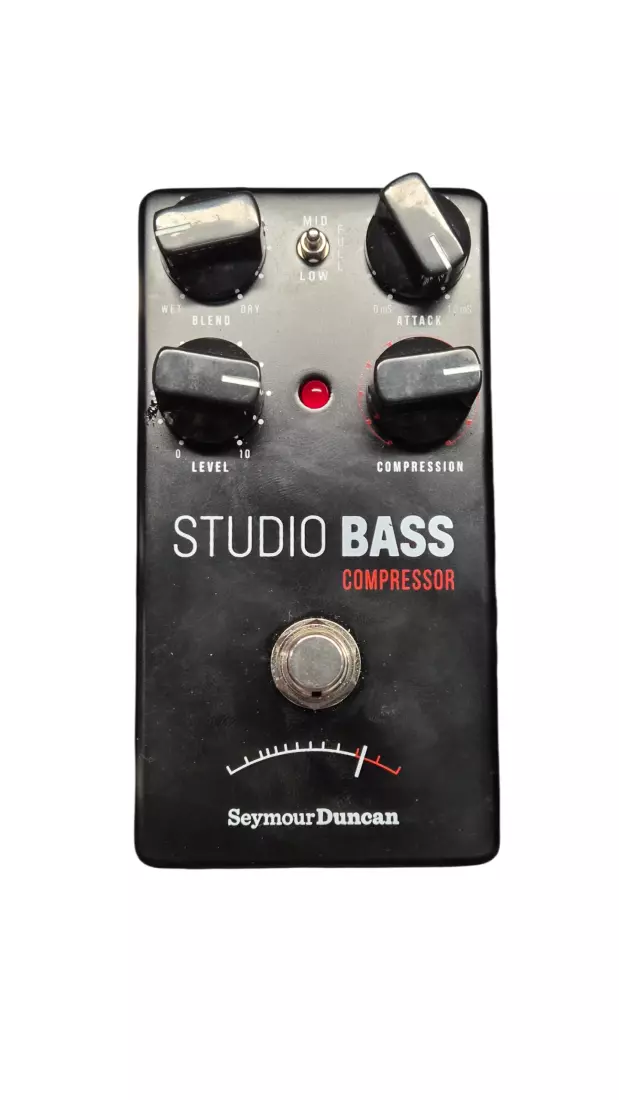

Seymour Duncan - Studio Bass Compressor

Description

This versatile studio-grade compressor is a must have for any bass player looking to maximize their sound, with a range of tones from subtle to super-squashed. One of the secrets to the Studio Bass's power is its 3-position mini-toggle and blend knob, which give you near limitless control over your tone by letting you mix uncompressed tones alongside the affected sound. Blend in your unadulterated clean signal, a mid boost that will help you cut through the busiest mixes, or a fat low-end growl.

Use Studio Bass as a clean boost for solos, or as an 'always-on' pedal to form the heart of your sound.

Typical applications for the Studio Bass include:
* Accentuate picking and single note runs
* Increase sustain
* Even out all of the notes

Specifications
Compression Ratio: Soft-knee, adjustable from 1:1 to > 20:1
Maximum Compressor Gain: +33dB
Attack Speed: Adjustable from 8ms to 27ms
Input Impedance: 1 Megohm
Output Impedance: 2.75K ohms maximum
Maximum Input Level: 3 Vrms
Distortion: < 0.3% at 300mV RMS output at 1 kHz
Noise referred to Input: -110dBV, 400 Hz 20 kHz, input shorted
Compressor Type: Voltage Controlled Amplifier (VCA)
Power: 9V battery or 9V to 18 Vdc regulated adapter, center pin negative polarity
Current Consumption: 21mA operate, 19mA bypass
Dimensions: 2.60" wide X 5.0" long X 1.45" high
Weight: 0.67 lbs.
