Description

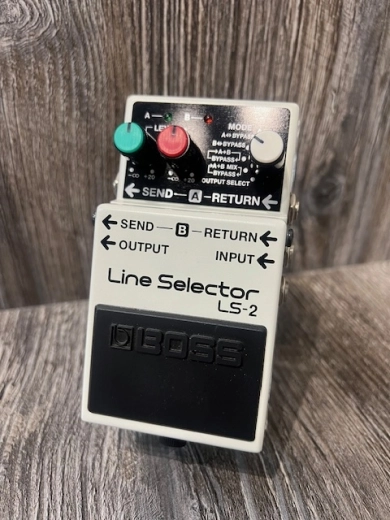

LS-2: Line Selector
The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
- Compact line selection pedal for connecting and switching between multiple amplifiers and effects devices
- Provides two line loops with Level control and six looping modes
- Can supply power to several BOSS compact pedals when used with an AC adaptor
- The ideal power supply and master switching unit for multiple effects setups
Input Impedance: 1 M ohms
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Residual Noise Level: 85 dBu or less (IHF-A, Typ.)
Connectors
INPUT Jack, OUTPUT Jack, RETURN A/ B Jack, SEND A/ B Jack, DC In/Out
Power Supply: DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
Current Draw: 25 mA (DC 9 V)
Accessories
Dry Battery 9 V type (6F22/9 V)
Option: AC Adaptor (PSA-Series)
Size and Weight ( incl. battery )
Width: 73 mm / 2-7/8 inches
Depth: 129 mm / 5-1/8 inches
Height: 59 mm / 2-3/8 inches
Weight: 0.4 kg / 0 lbs. 15 oz.
