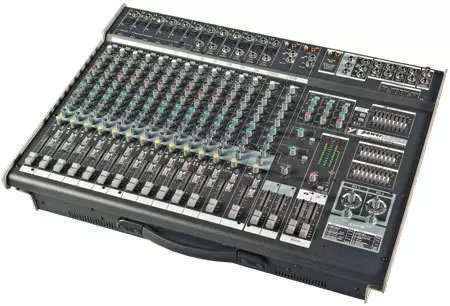

Yorkville Sound PowerMax 16-Channel 3200-Watt Powered Console
Additional Photos:
This product is no longer available.
Yorkville has set the standard for professionally featured high powered mixing consoles with the PowerMAX PM16-2. With four integrated amplifiers delivering 3200 watts, the Yorkville PowerMAX can drive virtually any medium or large club venue for a typical band with an ample powered stereo front-of-house mix and two additional powered monitor mixes. Built for maximum flexibility, the four 800-watt amplifiers in PowerMAX mixers can be assigned in any number of useful configurations using the integrated patch bay on the top panel.
Standard professional mixer features include mid-frequency sweep controls, switchable hi-pass filtering, two monitor sends, aux send, two effects sends, mute and solo switching with AFL/PFL select, stereo graphic EQ for mains, two monitor graphic EQs, and two integrated digital effects processors.
The PowerMAX PM16-2 includes twelve mono mic/line balanced channel inputs and two stereo line level channels (13-16). Mono channels one to six feature Yorkville's group-defeatable Channel Overload Protection circuit.
PowerMax powered desk mixers are designed to be the most powerful all-in-one solution for the working musician. Innovative features like multiple high power integrated amplifiers (as many as four assignable 800-watt amps in the PM16 and PM22) ensure ample power for mains and monitors. Fully featured mixers sections that include Solo, Mute, AFL and PFL levels on every channel, two pre-fade monitor sends and two post fade effect sends, versatile EQ's and two on-board digital effect processors ensure perfect mixes can happen easily night after night.
Two sets of stereo input channels (which can be used for additional microphone inputs) and two Hi-Z input channels for direct connection to acoustic instruments allow PowerMax mixers to be configured for almost any live music application or installation quickly and easily. Efficient cooling is via our exclusive SilentFan system which incorporates four 80mm variable-speed fans and ensures that the PowerMAX mixers do in fact stay cool.
Innovative 9-band graphic EQ's with additional high and low shelving controls allow effective tone shaping and feedback control without external EQ's or additional processing. Two 9-band mono EQ's (PM16 and PM22) allow for even more versatile monitor mixing with two discrete mixes for two fully independent powered monitor feeds from the console.
Other typically-Yorkville features include scratch-resistant vinyl-coated front panels, metal phone jacks, phantom power, balanced XLR, 1/4" phone and dual RCA inputs, gold plated connectors, high quality epoxy circuit boards coated with thick copper laminate and precision low-noise components. Naturally the PowerMAX mixers come with Yorkville's unbeatable two year, unlimited (even if you break it!) transferable warranty.*
Features:
• 4 x 800 watt Integrated Amplifiers
• 2 x 24bit Internal Stereo Multi-Effect Processors
• 2 x Pre-fade Auxiliary Sends (Monitors)
• 3 x Post-fade Auxiliary Sends (Effects and Aux)
• Stereo 9-band Graphic EQ (Mains)
• 2 x 9-band Mono Graphic EQ's (Monitors)
• 3-band Channel EQ's with Mid Sweep (Mic Channels)
• 4-band EQ's (Stereo Channels)
• Solo AFL/PFL & Mutes on All Input Channels
• Switchable 80Hz Hi-pass Filter on All Mic Input Channels
• Defeatable Channel Overload Protection (C.O.P.)
• Selectable Speaker Processor Output (50/80Hz Boost)

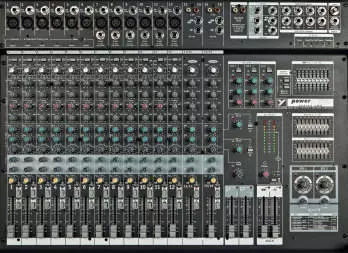

• Top Mounted Output Patch Bay
• Global 48V Phantom Power

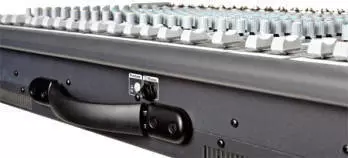

• Integrated Carry Handle
Specifications
• Number of Channels: 16
• Channel Inserts: 7 to 12
• Mono Channel EQ: (ch.1 to 12) High, Mid, Mid Sweep, Low
• Stereo Channel EQ: (ch.13 to 16) High, High Mid, Low Mid, Low
• Channel Effects: All Channels
• Monitors Effects: Yes
• Balance Controls: 13 to 16
• Pan Controls: 1 to 12
• Channel Overload Protection: 1 to 12
• Inputs - XLR (bal): Ch. 1 - 12
• Inputs - 1/4 IN: Ch. 1 - 16
• Inputs - RCA (unbal): Stereo Sets
• Solo Switches: All Channels, Mon1, Mon2, EFX Returns
• Mute Switches: All Channels
• Hi Pass Switches: Channels 1 to 12
• Activity / Solo LED: All Channels
• Clip / Mute LED: All Channels
• Phantom Power: 48 V + LED indicator
• VU Meter: 2 x 12 LEDs with Floating Peak
• Headphone Monitor Features: Level, AFL/PFL Switch, 1/4 inch Stereo
• Internal Effects: 24 Bit stereo, 16 Effects with Parameter Pot
• Auxiliary Sends : 1 TRS
• Effects Send: 2 (1 Internal , 1 Internal/External)
• Effects Return: 2 stereo pairs on 1/4 inputs
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: 1 Stereo RCA
• Max Gain to Line Out -Mic Input (dB): 72
• Max Gain to Line Out -Line Input (dB): 56
• Master EQ -1 (type/Channels/Range -dB): Graphic / Stereo / 9 Band 63 Hz - 16,000 Hz
• Monitor EQ -1 (type/Channels/Range-dB): Graphic / Stereo / 9 Band 63 Hz - 16,000 Hz
• Monitor EQ -2 (type/Channels/Range-dB): Graphic / Stereo / 9 Band 63 Hz - 16,000 Hz
• Main Outputs (Line Level): Amp A/B (1/4 inch TRS)
• Main Amp Inputs (Line Level): Amp A/B (1/4 inch TRS)
• Monitor Outputs (Line Level): Mon 1/2 (1/4 inch TRS)
• Monitor Amp Inputs (Line Level): Amp C/D (1/4 inch TRS)
• Outputs - Amp A - 1/4 IN Jacks: 2
• Outputs - Amp A - Speakon 4-pin : 1
• Outputs - Amp B - 1/4 IN Jacks: 2
• Outputs - Amp B - Speakon 4-pin: 1
• Outputs - Amp C - 1/4 IN Jacks: 2
• Outputs - Amp C - Speakon 4-pin: 1
• Outputs - Amp D - 1/4 IN Jacks: 2
• Outputs - Amp D - Speakon 4-pin: 1
• Mixer - Signal to Noise Ratio (dB): greater than 100
• Mixer - Freq Resp (Tone and EQ Flat,2dB): 20 Hz - 20,000 Hz
• Mixer- Input Ref Noise to line out @150 Ohms(dBv): -117 (@ 150 Ohms (dBv))
• Mixer THD (Main out w/ -10dB input): less than 0.03%
• Amp A-Power Output@8 Ohms (0.1 PER THD 1kHz): 600
• Amp A - Power Output @ 4 Ohms: 800
• Amp B-Power Output@8 Ohms (0.1 PER THD 1kHz): 600
• Amp B - Power Output @ 4 Ohms: 800
• Amp C-Power Output@8 Ohms (0.1 PER THD 1kHz): 127
• Amp C - Power Output @ 4 Ohms: 127
• Amp D-Power Output@8 Ohms (0.1 PER THD 1kHz): 127
• Amp D - Power Output @ 4 Ohms: 127
• THD - 1kHz (dB): 0.001
• THD - 20Hz-20kHz (dB): 0.5&
• Hum and Noise (un / Aweight -dB): -103
• Typical crosstalk -1 kHz (dB-: less than -60
• Input Impedance - Bal/Unbal (Ohms): 22,000 / 12,000
• Input Sesitivity (Vrms Sine): 1.4 V
• CMRR @ 60Hz (min/typ): 54 dB / 66 dB
• Max Votage Gain (dB): 32
• Power Consumption (typ/max): 660 VA / 1800 VA
• Protection: Thermal / Load / DC
• Cooling: 4x Variable Speed DC Fan
• Transformer Type: Toroidal
• Finish: Scratch Resistant Vinyl-Coated Aluminum
• Console Lamp Connector 12V DC (BNC): Yes
• Other Features: Main Amp / Mon Amp Configuration Switch
• Dimensions (DWH, inches): 19 x 25.8 x 5.2
• Dimensions (DWH, cm): 48.3 x 65.5 x 13.2
• Weight (lbs/kg): 48.5 / 21.9
