Roland - SYS-530

Description

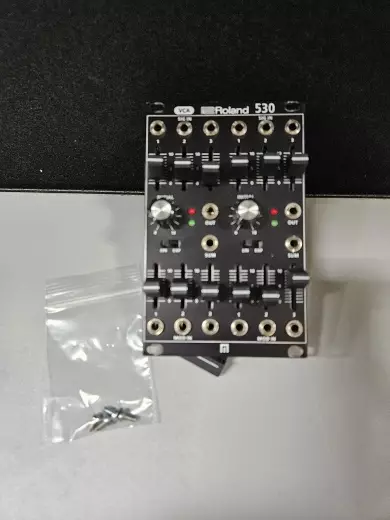

SYSTEM-500 530 Modular Dual VCA

The 530 Dual VCA (voltage controlled Amplifier) features two independent voltage controlled amplifiers for controlling the loudness of audio signals. Each VCA has three sliders for an audio input mixer, three sliders to mix CV inputs, and a selector switch for linear or exponential response modes.

Classic System. New Format.

Newly designed in Eurorack format, the SYSTEM-500 delivers the classic character and functionality of the original SYSTEM-100M modular synthesizer with the advantages of a modern instrument. The SYSTEM-500 consists of Eurorack format modules that you can mix and match in any combination to create the ultimate Roland modular synthesizer. Each module is completely analog and has been designed for maximum compatibility with the world of contemporary synthesizer and effects modules. The SYSTEM-500 is a compact, powerful system that opens up vast possibilities for sound design and musical exploration.

SPECIFICATIONS for 530 Dual VCA:

Controllers:
SIGNAL IN 1 slider
SIGNAL IN 2 slider
SIGNAL IN 3 slider
MODULATION IN 1 slider
MODULATION IN 2 slider
MODULATION IN 3 slider
LINER/EXPONENTIAL switch
INITIAL knob

Indicator:
LOAD Indicator
OVERLOAD Indicator

Connectors:
SIGNAL IN 1 jack: Miniature phone type
SIGNAL IN 2 jack: Miniature phone type
SIGNAL IN 3 jack: Miniature phone type
OUT jack: Miniature phone type
SUM jack: Miniature phone type
MODULATION IN 1 jack: Miniature phone type
MODULATION IN 2 jack: Miniature phone type
MODULATION IN 3 jack: Miniature phone type

Power Supply:
Eurorack power

Current draw:
50 mA (+12 V)
35 mA (-12 V)

Accessories:
Eurorack installation screws (4 pcs)
Eurorack power cable
