IK Multimedia

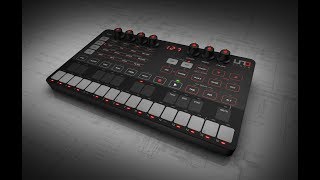

UNO Synth Analog Monophonic Synthesizer
Additional Photos:
Product Videos :
YouTube Video
IK Multimedia has designed the Uno Synth to combine portability with a powerful analog synth engine. This highly flexible synthesis engine not only excels in producing the rich, warm, punchy, deep bass sounds that are the core of a high-quality monophonic synth, it's also perfectly designed to bring a wide sonic palette of leads, drones, arps, sequences, sweeps and effects.
A powerful synth engine gives a professional sound, courtesy of the all-analog signal path and wide range of features. The UNO Synth features 2 VCOs, noise generator, resonant multimode VCF and VCA, alongside 2 independent VCOs with saw, triangle and pulse waveforms. The waveforms have a continuously variable shape including PWM of the square waves, plus a separate white noise generator.
The UNO Synth also includes a 2-pole OTA-based analog resonant sweepable multimode filter with overdrive, and 7 LFO waveforms to modulate Pitch, Filter, Amp, and continuous oscillator wave shapes including PWM.
The UNO Synth's 100 built-in presets feature an associated arpeggio and sequence, so you can find inspiration straight away. 80 of those presets are fully writable, letting you store your go-to sounds for instant access. More than 40 controls are included on the top panel of the UNO Synth for direct and intuitive control over multiple parameters - perfect for beginners.
While UNO Synth is monophonic nature, its two independent oscillators can be tuned differently to also generate interesting pad-like interval sounds as well as octaves. Pulse width modulation of each oscillator provides the ability for a single oscillator to sound like two while the second oscillator can be tuned to an octave or interval for advanced modular-style timbres from the greatest classic synths.
Features
• All-analog audio path with 2 VCOs with continuously variable waveshape, noise generator, resonant multimode VCF and VCA
• 2 independent analog VCOs with Saw, Triangle and Pulse waveforms with continuously variable shape including PWM of the square wave and a separate white noise generator
• A 2-pole multimode OTA-based sweepable analog resonant multimode filter with LPF, HPF, BPF
• LFO with Sine, Triangle, Square, Up Saw, Down Saw, Random and Sample-and-Hold to modulate Pitch, Filter and Amp
• AD (Filter) + AR (Amp) envelopes (full ADSR control available via MIDI CC or software editor)
• 40 onboard controls and LED display
• 10 mode, 4-octave arpeggiator
• Real-time and step edit 16-step sequencer with 20 automatable parameters
• Onboard multi-touch 27-note chromatic and scale keyboard with 13 scales
• Sync Delay audio effect and 5 performance effects
• Self-tuning with auto-tune calibration
• USB MIDI and 2.5 mm jack MIDI IN/OUT (cables included)
• Audio In to daisy chain other audio devices with no need for a mixer
• Mac/PC software Editor/librarian
• Complete MIDI implementation with all parameters and clock can be controlled via MIDI CC
• Battery (4xAA) or USB powered
• Ultra-portable and lightweight
In the Box:
- UNO Synth
- 1x Micro USB to USB cable
- 2x MIDI jack 2.5mm to DIN cables
- 4x AA batteries
UNO Synth Specifications
Synthesis
• Type: Analog
• Polyphony: 1 voice
• Synthesis structure: 2 VCO, Noise generator, 1 VCF, 1 VCA, 2 EG, 1 LFO
• VCO variable shape waveforms: Triangle, Sawtooth, Pulse with variable pulse width
• VCF: 2-pole resonant multimode filter with Cutoff, Resonance, Env Amount, Drive
• LFO: 7 shapes (Sine, Triangle, Square, Saw Up, Saw Down, Random, Sample & Hold), Rate
• Modulation Destinations: Amp, Pitch, Filter, PWM, Waveshape (PWM and Waveshape via MIDI CC)
• EG: 2 for Filter and Amplitude (full ADSR is available via MIDI)
Preset
• 100 Presets (20 factory non-writable, 80 user)
Keyboard and controls
• 7 Knobs (4 matrix, 3 fixed)
• 13 Selectable scales (Chromatic, Major, Minor, Major Pentatonic, Minor Pentatonic, Major Blues, Minor Blues, Harmonic Minor, Mixolydian, Dorian, Klezmer, Hungarian Gypsy, Spanish Gypsy, Japanese, South-East Asian)
Sequencer
• 16-step sequencer
• Real-time and step recording with parameter recording
• Real-time parameter recording per-step
• 3 directions: Forward, Backward, Forward and Backward
• Selectable length between 1 and 16 steps
Arpeggiator
• 10 Mode Arpeggiator
• 4 octave range
• Hold control
Effects
• Delay
• Dive, Scoop, Vibrato, Wah, Tremolo
Connections
• Audio Out: Mini-jack 3.5mm stereo (mono summed)
• Audio In: Mini-jack 3.5mm stereo (mono summed)
• 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
• 1 Micro USB
Power
• 4x AA Batteries
• Micro USB connector
Dimensions: 25.6cm/10.1" x 15cm/8.9" x 4.9cm/1.93"
Weight: 400g/14.1oz (batteries excluded)
A powerful synth engine gives a professional sound, courtesy of the all-analog signal path and wide range of features. The UNO Synth features 2 VCOs, noise generator, resonant multimode VCF and VCA, alongside 2 independent VCOs with saw, triangle and pulse waveforms. The waveforms have a continuously variable shape including PWM of the square waves, plus a separate white noise generator.
The UNO Synth also includes a 2-pole OTA-based analog resonant sweepable multimode filter with overdrive, and 7 LFO waveforms to modulate Pitch, Filter, Amp, and continuous oscillator wave shapes including PWM.
The UNO Synth's 100 built-in presets feature an associated arpeggio and sequence, so you can find inspiration straight away. 80 of those presets are fully writable, letting you store your go-to sounds for instant access. More than 40 controls are included on the top panel of the UNO Synth for direct and intuitive control over multiple parameters - perfect for beginners.
While UNO Synth is monophonic nature, its two independent oscillators can be tuned differently to also generate interesting pad-like interval sounds as well as octaves. Pulse width modulation of each oscillator provides the ability for a single oscillator to sound like two while the second oscillator can be tuned to an octave or interval for advanced modular-style timbres from the greatest classic synths.
Features
• All-analog audio path with 2 VCOs with continuously variable waveshape, noise generator, resonant multimode VCF and VCA
• 2 independent analog VCOs with Saw, Triangle and Pulse waveforms with continuously variable shape including PWM of the square wave and a separate white noise generator
• A 2-pole multimode OTA-based sweepable analog resonant multimode filter with LPF, HPF, BPF
• LFO with Sine, Triangle, Square, Up Saw, Down Saw, Random and Sample-and-Hold to modulate Pitch, Filter and Amp
• AD (Filter) + AR (Amp) envelopes (full ADSR control available via MIDI CC or software editor)
• 40 onboard controls and LED display
• 10 mode, 4-octave arpeggiator
• Real-time and step edit 16-step sequencer with 20 automatable parameters
• Onboard multi-touch 27-note chromatic and scale keyboard with 13 scales
• Sync Delay audio effect and 5 performance effects
• Self-tuning with auto-tune calibration
• USB MIDI and 2.5 mm jack MIDI IN/OUT (cables included)
• Audio In to daisy chain other audio devices with no need for a mixer
• Mac/PC software Editor/librarian
• Complete MIDI implementation with all parameters and clock can be controlled via MIDI CC
• Battery (4xAA) or USB powered
• Ultra-portable and lightweight
In the Box:
- UNO Synth
- 1x Micro USB to USB cable
- 2x MIDI jack 2.5mm to DIN cables
- 4x AA batteries
UNO Synth Specifications
Synthesis
• Type: Analog
• Polyphony: 1 voice
• Synthesis structure: 2 VCO, Noise generator, 1 VCF, 1 VCA, 2 EG, 1 LFO
• VCO variable shape waveforms: Triangle, Sawtooth, Pulse with variable pulse width
• VCF: 2-pole resonant multimode filter with Cutoff, Resonance, Env Amount, Drive
• LFO: 7 shapes (Sine, Triangle, Square, Saw Up, Saw Down, Random, Sample & Hold), Rate
• Modulation Destinations: Amp, Pitch, Filter, PWM, Waveshape (PWM and Waveshape via MIDI CC)
• EG: 2 for Filter and Amplitude (full ADSR is available via MIDI)
Preset
• 100 Presets (20 factory non-writable, 80 user)
Keyboard and controls
• 7 Knobs (4 matrix, 3 fixed)
• 13 Selectable scales (Chromatic, Major, Minor, Major Pentatonic, Minor Pentatonic, Major Blues, Minor Blues, Harmonic Minor, Mixolydian, Dorian, Klezmer, Hungarian Gypsy, Spanish Gypsy, Japanese, South-East Asian)
Sequencer
• 16-step sequencer
• Real-time and step recording with parameter recording
• Real-time parameter recording per-step
• 3 directions: Forward, Backward, Forward and Backward
• Selectable length between 1 and 16 steps
Arpeggiator
• 10 Mode Arpeggiator
• 4 octave range
• Hold control
Effects
• Delay
• Dive, Scoop, Vibrato, Wah, Tremolo
Connections
• Audio Out: Mini-jack 3.5mm stereo (mono summed)
• Audio In: Mini-jack 3.5mm stereo (mono summed)
• 2 x MIDI 2.5mm mini-jack to DIN cables (IN/OUT)
• 1 Micro USB
Power
• 4x AA Batteries
• Micro USB connector
Dimensions: 25.6cm/10.1" x 15cm/8.9" x 4.9cm/1.93"
Weight: 400g/14.1oz (batteries excluded)
Media
Youtube video product demo
Q & A
There are currently no questions for this product.
Reviews
3.133.12.172
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
KILLER with Ultimate Patches bundle 0 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Chilliwack, British Columbia
Based on the ultimate patches uno demo on youtube, this synth is SO capable although you'd never know it from other videos demonstrating it.
Very happy with my purchase.
Posted by Moniqua on Feb 25, 2019
Very cool 4 of 5 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Windsor, Ontario
Pros:
This is not a toy. IK has designed a dual vco analog mono-synth full of features. Oscillators might not be as 'thick' or 'bouncy' as more much more pricy mono-synths, but there are awesome sounds here. For the price, it has a sequencer with a hundred presets, arpeggiator with lots of control. Has effects including Wah and Delay. Totally fun synth!
Cons:
Bat life is very limited (advertised as up to 10 hrs - couldn't get more than 3 using Energisers). With batteries there are no issues with noise, but who wants to replace AAs every three hours?
Noise from the USB might need to be dealt with: either by isolating usb from other usb toys or through a high quality mixer/amp system. Still, I'll flag this as an issue because the unit seems to have high-gain out (one out for both headphones and line) - I had to fiddle with it until it was ok (sometimes you can hear the oscillators - I have picky ears). But hey, pay more 20X the price and there is still always something - nature of the beast.
Posted by Jack on Dec 10, 2018
Great sounding true analog VCO synth 2 of 2 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I own it
Closest Store Kamloops, British Columbia
Can't go wrong with the price - sounds superb and very retro(wave)!
Posted by Dale on Oct 3, 2018
