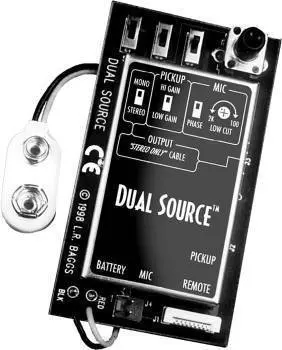

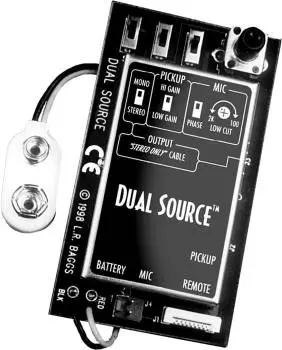

L.R Baggs Dual Source

The Dual Source System is a miniature onboard microphone/pickup mixing system that features all-discrete class A circuitry. It seamlessly combines our high-tech Ribbon Transducer with a high quality FET condenser capsule for an affordable, simple-to-use, one- cord mix. By using clever and efficient design, we've added these features without raising the price or compromising the quality.

The Pickup: The Element Pick-up is a minature internally mounted microphone/pickup mixing system that seamlessly combines our patented Element transducer with a high quality FET condenser microphone. The ultra-quiet preamp mounts non-destructively inside of the instrument and features all discrete audiophile circuitry for our signature quality sound and a great one-cord mix right out of box. The preamp controls have ample flexibility to fine tune the response to your individual guitar.

The Microphone: The Dual Source mic is a high quality omni-directional FET condenser capsule encased in a small block of acoustically transparent foam. It mounts easily on the back of the inside of the guitar with Velcro. It is designed to use the entire back surface as a "pressure zone." This minimizes the effect of standing waves and hot spots inside of the guitar. Consequently, the sound is closer to that of an outside microphone than with other internal mic placements. This location also gives increased protection against feedback.

The Electronics: If you have ever wondered how we can make such great sounding stuff for such a low price, this is it - we do more with less than any audio designer that we know of. Not only does this make for the purest possible sound but it actually reduces the cost. The entire Dual Source signal path, for example, contains only six transistors and a few film caps. We also insisted on all discrete Class A circuitry, with no negative feedback, for the lowest noise and most sweet, transparent sound possible.

Features

Element undersaddle pickup
Onmidirectional FET condenser microphone
All discrete miniature preamp/mixer
Mono or split stereo operation
Phase reverse on pickup channel
Tunable low cut filter for microphone
Battery Bag battery retention
Prewired strapjack harness
Remote control II



Specifications

Size: 3.3" x 2.3" x 1.9"
Weight: 117 grams w/battery
Battery Type: Single 9V
Current Consumption: 2.3mA
Battery Life: > 200 hours (alkaline)
Low Cut Filter: Fixed, 12dB/Oct. @ 37Hz
Signal to Noise: -92dB, unweighted
Output Stage: Pure Class A
Output Level: -10dB
Output Impedance: 1200 Ohm
