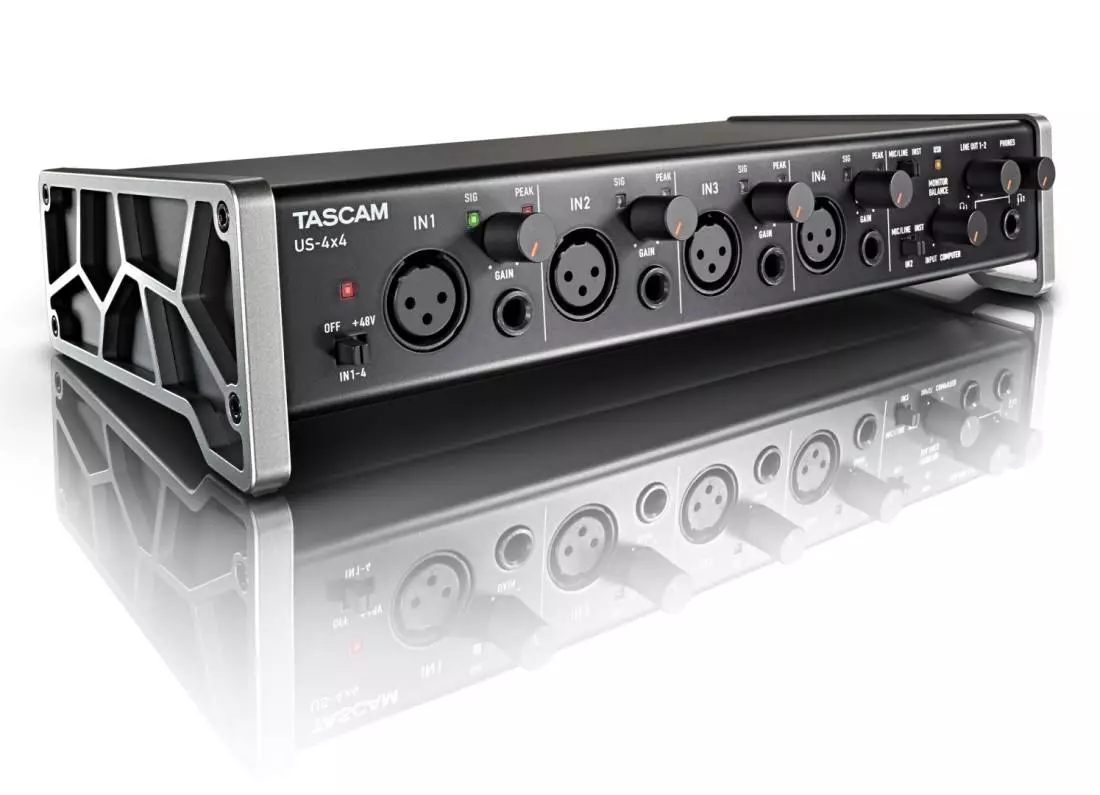

Tascam US-4x4 USB 2.0 4-in/4-out Audio/MIDI Interface
Additional Photos:
Product Videos :
TASCAM's US-4x4 combines great audio quality and ergonomic design for a powerful 4-in/4-out USB 2 audio interface. Four of TASCAM's Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without colouring the source.
The US-4x4 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The interface also includes a copy of Steinberg Cubase LE for Windows and Mac.
With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-4x4 is the ultimate 4-channel interface for home, project, and mobile studios.
FEATURES AT A GLANCE
• Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
• NE5532 op-amps used at the audio input and output stages
• Up to 96kHz/24-bit recording
• Support for Windows and Mac OS X operating systems
• USB 2.0 computer connection
• Connect with iPads and other iOS devices
• +48V phantom power for all inputs
• Two switchable high-impedance inputs
• Microphone preamp gain range of 57 dB
• Direct monitoring function for zero-latency monitoring
• Tough all-metal casing for durability
• Angled design provides excellent usability on a desktop
• Balanced analog TRS output jacks suitable for connection to powered monitors
• Standard TRS headphones output jack
• Separate controls for line and headphones output volumes
• MIDI input and output
• Output sources can be selected in the setting panel
• Input sound monitoring can be set to stereo or mono
• Input muting function eliminates noise from unused inputs
• USB class compliant 2.0 support
• License card included for Steinberg Cubase LE
• Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band)
Unique features for the US-4x4
• Four Ultra-HDDA mic preamplifiers
• Four XLR or TRS (MIC/LINE) inputs with full +48V phantom power
• Four TRS analog balanced outputs
• Two headphone outputs each with 45mW/ch output power
• Dedicated AC adapter is included
SPECIFICATIONS
Sampling frequency: 44.1k/48k/88.2k/96kHz
Quantization bit rate: 16/24bit
Analog audio inputs
MIC IN
Connector: XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance: 2.2k ohms
Nominal input level
GAIN:MAX: -65dBu (0.0004Vrms)
GAIN:MIN: -8dBu (0.3090Vrms)
INST IN
Connector: 6.3mm (1/4") TS-jack (T：HOT, S：GND), UNBALANCED
(When set to "INST" at MIC/LINE.INST switch)
Input impedance: 1M ohms
Gain: 57dB
LINE IN
Connector: 6.3mm (1/4") TRS-jack (T：HOT, R：COLD, S：GND), BALANCED
(When set to "MIC/LINE" at MIC/LINE.INST switch)
Input impedance: 10k ohms
Analog audio outputs
LINE OUT
Connector: 6.3mm(1/4")TRS-jack(T：HOT, R：COLD, S：GND), BALANCED
Output impedance: 110ohms
PHONES
Connector: 6.3mm(1/4") stereo phone jack
Maximum output level: 45mW+45mW or more; (THD+N 0.1% or less, 32ohms loaded)
MIDI IN / OUT
Connector: Din 5-pin
Format: Standard MIDI format
USB
Connector: USB B type 4-pin
Format: USB2.0 HIGH SPEED
Power
Power: Dedicated AC adapter (GPE248-120200-Z, included)
Power consumption: 5W
Dimensions and Weight
Dimensions: 11.62" W x 2.56" H x 6.3" D (296mm W x 65mm H x 160mm D)
Weight: 3.53lb (1.6kg)
Misc
Bundled software: Cakewalk SONAR X3 LE, Ableton Live 9 Lite
Accessories: AC adapter(GPE248-120200-Z), USB cable, Steinberg Cubase LE license card, User's manual, warranty card
