Electro-Harmonix

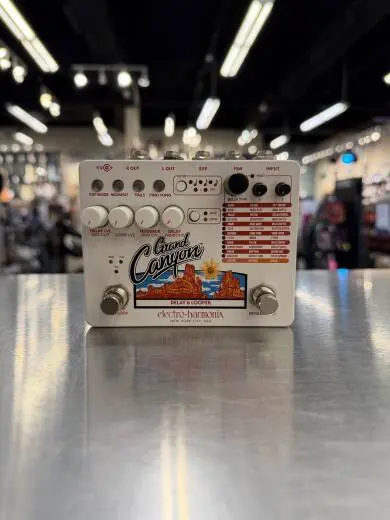

Grand Canyon Delay & Looper Pedal
Additional Photos:
Product Videos :
13 Modes to Choose From
Echo: Pristine 24-bit digital delay with available bit crush/sample rate reduction and low/high pass filtering
Mod: Modulated delay, yields rich flanger, chorus, vibrato, warble and more
Multi: Multi-tap delay, set the exact number of echo repeats up to 31. Includes adjustable swell or decay volume envelopes on repeats
Reverse: Reverse delay, an easy-to-use reverse delay with an intelligent pick detection algorithm for great sounding reverse echoes
DMM: Deluxe Memory Man, re-creates the luscious tone of EHX's legendary bucket-brigade delay pedal
Tape: Tape Delay, simulates the organic sound of an analog tape, echo machine including tape distortion, wow and flutter
Reverb: Plate reverb plus echo. A reverberant echo where each repeat is followed by a wash of gorgeous plate reverb. Can also be used as a pure reverb without the delay
Pitch: EHX's critically acclaimed polyphonic pitch shifting plus digital delay provides pitch-shifted echoes and cascading echo repeats
Shim: Shimmer generates a rich octave-shifted wash of shimmering soundscapes
Sample/Hold: Sample and hold, senses a note being played and produces echoes indefinitely until another note is detected
Drum: Magnetic drum echo that faithfully emulates a classic Binson Echorec style delay. Features an assortment of playback head configurations that let you create musical, rhythmic, echo patterns
Double: Thickens up a mono signal or creates a stereo spread. Includes detune and delay time offset of the left and right outputs
Looper: Looper with up to 16 minutes of recording time. Includes unlimited overdubs, undo/redo, dedicated stop button, loop fade-out, reverse and speed adjust
Specifications
• Advanced multi-function delay and looper with up to three seconds of delay time
• 12 effect types that cover a ton of tonal real estate to fuel your creativity: ECHO, MOD, MULTI, REVERSE, DMM, TAPE, REVERB, PITCH, SHIM, SAMPLE/HOLD, DRUM, DOUBLER
• Tails Feature: Select whether the echoes fade out naturally or stops immediately when the pedal is switched to bypass mode
• Tap tempo with nine tap divide subdivisons
• Up to 16 minutes of recording time on the fully featured looper
• Loop audio remains in the Grand Canyon until you erase it, even after removing power
• 13 presets can be saved or recalled
• 3-button footswitch connector for remote operation
• EHX 9.6VDC-200mA power supply included
• Current Draw: 150mA @ 9VDC
• Dimensions: 4" (W) x 4.75" (L) x 2.25" (H)
Media
Q & A
Reviews
