American DJ

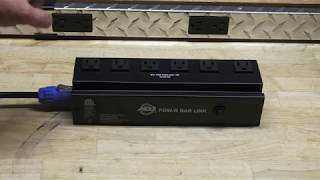

The ADJ POW-R BAR LINK is a forward-thinking tool for any working entertainer, stage or installation that helps make powering electronics easier. It incorporates 6 surge-protected AC power sockets, a locking powerCON IN cable and a powerCON through connection to link multiple POW-R BAR LINK units. The POW-R BAR LINK has a robust metal case design and is built to last the rigors or touring and staging. It is only available with 120V Edison sockets to be sold in North America.

Features
• Six surge-protected AC 3-prong Edison power sockets
• PowerCON in and through to link to other POW-R BAR LINKs
• Shelf for placing mobile phone or tablet while charging
• Heavy-duty metal construction designed to withstand the rigors of the road
• M10 bolt on rear to attached to a clamp and hung on truss

Electrical Specifications
Maximum AC Output Current: 15 amps
Operating Voltage: 120V AC, 60Hz
Spike Protection Mode: Line to neutral
Spike Clamping Voltage: 185 VAC peak @ 3000 amps
Energy Dissipation: 1800 joules
Maximum Surge Current: 6000 amps
Maximum Continuous Operating Voltage: 130 VAC RMS
Built-in circuit breaker in ON/OFF switch

Dimensions/Weight
Length: 10.5" (268 mm)
Width: 3.3" (84 mm)
Horizontal Height: 2.5" (65 mm)
Weight: 3.0 lbs (1.3 kg)

What's Included
Line Cord: 6-foot, captive, 14 AWG, with 3-conductor Edison powerCON locking plug
