SPL

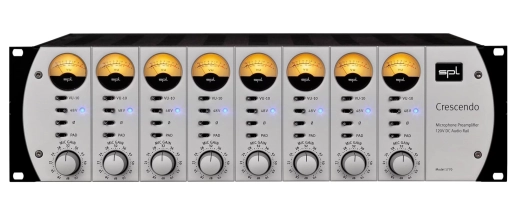

Crescendo 1770 8-Channel, 120V Microphone Preamplifier
Additional Photos:
The Crescendo features a fully balanced signal flow. The input stage uses 10 pairs of matched PNP Transistors (Differential Input Transistors) for extremely low noise and a very high common mode rejection. Each of the eight input stages has six 5th generation 120V SPL SUPRA Operation Amplifiers. The transformerless design of the input/output stages guarantees highly linear amplifying. The output stages operate as current amplifier and therefore provide Class-A operation with more than 6mA quiescent current.
Specifications
Frequency Range
• 20-50kHz, -3dB
Mic Preamp Gain
• 70dB
Input Impedance
• 10 kOhm
Output Impedance
• 65dBu/1kHz
• 30dB gain >75dBu/1kHz
THD/N
• 60dB gain (0.04%)
• 30dB gain (0.008%)
*10dB gain (0.00009%)
E.I.N
• 60dB gain (150 Ohm, 129.5dB)
• 60dB gain (40 Ohm 134.4dB)
Power Consumption
• 230V: 51.6W
• 115V:50.5W
