24-in, 12-out audio interface with premium preamps, easy SoundGrid connectivity and rugged design the perfect stagebox for the eMotion LV1 live mixer.

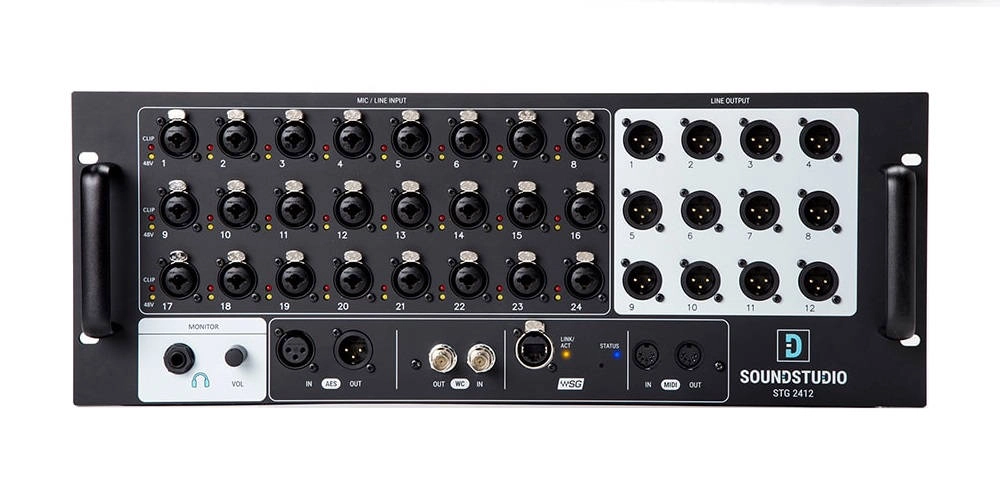

SoundStudio STG-2412 is a rugged stage box with 24 analog inputs and 12 line outputs, designed for both stage and studio applications. All connections on this 4U rack-mountable device are on the front panel, except the mains connection and power switch, which are on the rear panel.

In addition to analog mic and line inputs and line outputs, there are inputs and outputs for AES, word clock, and MIDI. There's also a SoundGrid-compliant Ethernet port network. All device configurations including Preamp and Clock are software controlled.

STG-2412 operates within in a SoundGrid Ethernet network, so it's an ideal interface for the Waves eMotion LV1 or MultiRack. The SoundGrid network can also be used with a DAW for recording.

What's in the box?
1 Cat 6 Ethernet cable
2 Mains cables
3 Mains safety clips
4 Registration card with serial number

Mixing, Processing, and Recording
STG-2412 uses Waves SoundGrid protocol to connect to an eMotion LV1 mixer, to a MultiRack processor, and to any DAW. A typical SoundGrid network consists of a host computer, a SoundGrid server, and I/O devices, all connected with Cat 5e (or better) Ethernet cables via a 1GB Ethernet switch.

Software Drivers
The STG-2412 stage box can be used with a number of Waves SoundGrid software applications, including the eMotion LV1 live mixer, the MultiRack live plugin host, and SoundGrid Studio.

Specifications
XLR Input
Input Gain: Adjustable from 0 dB to 60 dB in steps of 1dB
Frequency Response:
+0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain)
+0/- 0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain)
Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0
EIN (Gain 60, 150 ohms): -128 dBu A weighted
THD+N (Measured at 1 kHz @ +4dBu, Gain = +20): 0.0023%
Phase Response: +/- 10 Deg: 20 Hz to 20 kHz
Input impedance: 2k ohms
48V phantom power available per input

TRS Input
Input Gain: Adjustable from 0 to 60 dB in steps of 1dB
Frequency Response:
+0/-0.2 dB, 16 Hz to 21 kHz @ 48 kHz sample rate (+4dBu input @ +20 dB gain)
+0/- 0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain)
Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0
EIN (Gain 60, 150 ohms): -128 dBu A weighted
THD+N (Measured at 1 kHz @ +4dBu, Gain = +20): 0.0023%
Phase Response:
+/- 10 Deg 20 Hz to 20 kHz
Input impedance: 10k ohms

XLR Balanced Outputs
Selectable maximum output level: +18 dBu or + 24 dBu
Frequency Response:
+0/-0.2 dB 16 Hz to 22 kHz @ 48 kHz sample rate
+0/-0.2 dB 17 Hz to 40 kHz @ 96 kHz sample rate
THD+N (Measured at 1 kHz, Gain = 0): 0.001%
Output impedance: 40 ohms

Headphones output
1 watt per channel into 32 Ohm headphones.

Digital I/O
AES-3, AES-EBU Stereo Output. Output sample rate 44.1 kHz to 96 kHz
Word clock input: Standard 5 Volt square wave. 50% duty cycle.
Word clock output: 1X sample rate Standard 5 Volt square wave. 50% duty cycle.
Word clock Input: 1X sample rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Power: Universal input power supply 100V-240 VAC, 50/60 Hz, 1.0 Ampere
Dimensions: 482 x 177 x 254 mm

Weight: 8.9 kg (19.6 lb)
