EarthQuaker Devices

Swiss Things Pedalboard Reconciler

SKU: # 702665   |   Model: # EQDSWIS   |    Product Reviews1 Reviews  Write a Review

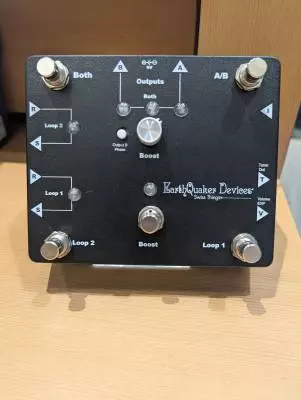

Swiss Things Pedalboard Reconciler

Additional Photos:

Swiss Things Pedalboard Reconciler
Swiss Things Pedalboard Reconciler
Swiss Things Pedalboard Reconciler

Product Videos :

YouTube Video EarthQuaker Devices Swiss Things Pedalboard Reconciler
YouTube Video L&M @ NAMM 2019: EarthQuaker Devices
Your Price: $339.00 CDN
or from $36 CDN/mo

Buy Online

 Add to Cart

Buy In-Store

Swiss Things combines two true-bypass Flexi-Switch enabled effects loops, a Flexi-Switch AB-Y box with transformer isolation between outputs, a buffered tuner output, 20dB of clean boost with adjustable gain, an expression pedal output for volume control and a quiet, high headroom output buffer into a compact pedalboard-friendly signal routing junction box that lives at the top-right corner of your pedalboard and really ties your rig together without any signal loss.

Features

  • Use as many pedals as you'd like without tone-suck

  • Quickly and easily bypass or engage all of your effects with one click

  • Use Flexi-Switch Technology with every pedal in your setup

  • Eliminate volume pedal tone-suck by using any expression pedal to control volume

  • Use multiple amps without phase issues, ground loops, or extra noise

  • Tidy up your rig, shorten cable runs, and reduce tone loss by keeping all inputs and outputs in one location

Specs

Measures: 4.75″ x 5.65″ x 2.25″ with knobs
Current Draw: 40mA
Input Impedance: 1M Ohm
Output Impedance: 1K Ohm
Power: This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. EarthQuaker Devices always recommends pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. Do not run at higher voltages.

Media


EarthQuaker Devices Swiss Things Pedalboard ReconcilerWatch Video
Youtube video product demo
L&M @ NAMM 2019: EarthQuaker DevicesWatch Video
Youtube video product demo

Description: Cory from EarthQuaker Devices shows us two new pedals at NAMM 2019 - the Dispatch Master and the Swiss Things.


Q & A


There are currently no questions for this product.

Reviews


18.209.209.28
claudebot
This is the way. And it has BOOST! 1 of 1 customers found this review helpful
Features
Quality
Value
Overall
Product Experience   I own it
Closest Store   Vancouver, British Columbia
I have two pedalboards - one that is Pink Floyd dedicated, and one that does “everything else”. I needed a way to bring the two into one amp, and be able to have one guitar input. This pedal is straight up genius. One loop for the Dark Side, one loop for the “big board”, and a dedicated tuner loop - plus an expression pedal loop. Add in a variable boost, and this truly is the Swiss Army Knife of pedal / loops / reconciliation systems.
Genuine godsend of a pedal, and it’s made in Ohio. Five stars isn’t enough.
