JBL 1 Series 104 Compact Powered Desktop Reference Monitor

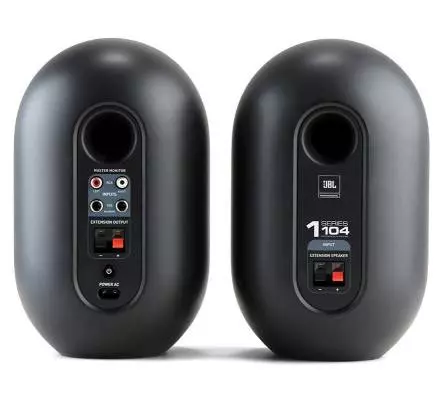

Additional Photos:

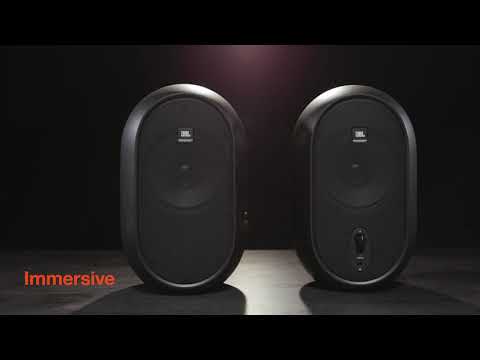

Product Videos :
With JBL 104 Reference Monitors, you'll hear true clarity and detail, with no colouration. The 104s deliver crisp highs and rich bass just as intended. They're optimized for desktop placement, with neutral low-frequency performance. And their smooth off-axis response means you can monitor with confidence in a wide sweet spot.
KEY FEATURES
- Master and extension speaker sold as one set
- Coaxial woofer design with 4.5-inch (118 mm) LF driver and .75-inch (19 mm) softdome HF driver
- Integrated 60-watt Class D power amplifier distributes 30 watts to each speaker
- Acoustically optimized for desktop placement
- Three sets of inputs allow connection with professional equipment, personal music players and consumer products
- Smart features include front-panel volume control and headphone jack with automatic speaker mute
INCLUDED ACCESSORIES
- (1) extension monitor speaker wire (2-conductor, 2 meters)
- (1) 3.5 mm to RCA audio cable
- (1) regional power cable
- (1) quick setup guide
SPECIFICATIONS
LF Transducer: 4.5 in (118 mm)
HF Transducer: 0.75 in (19 mm), soft dome
Power Amp: 60 W (30 W each speaker), Class D
Maximum Continuous SPL*: 89 dB
Maximum Peak SPL: 102 dB
Frequency Range: 60 Hz 20 kHz
Signal to Noise Ratio: 75 dBA (A-Weighted)
Coverage (Horizontal x Vertical): 120 deg x 80 deg
Input Connectors:
• 2 x 1/4-inch (6.5 mm) balanced (+4 dBu);
• 2 x RCA (-10 dBV);
• 1 x 1/8-inch (3.5 mm) unbalanced (-10 dBV)
Output Connectors:
• 1 x 3.5 mm (1/8") stereo headphone with auto speaker mute
Current Draw: 85 watts
Enclosure Type: Ported
Dimensions (H x W x D): 247 x 153 x 124 mm (9.72 x 6.02 x 4.88 in)
Net weight: Master Monitor: 4.54 lb (2.06 kg); Slave Monitor: 3.81 lb (1.73 kg)
