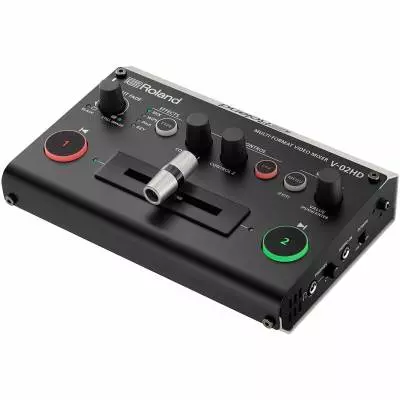

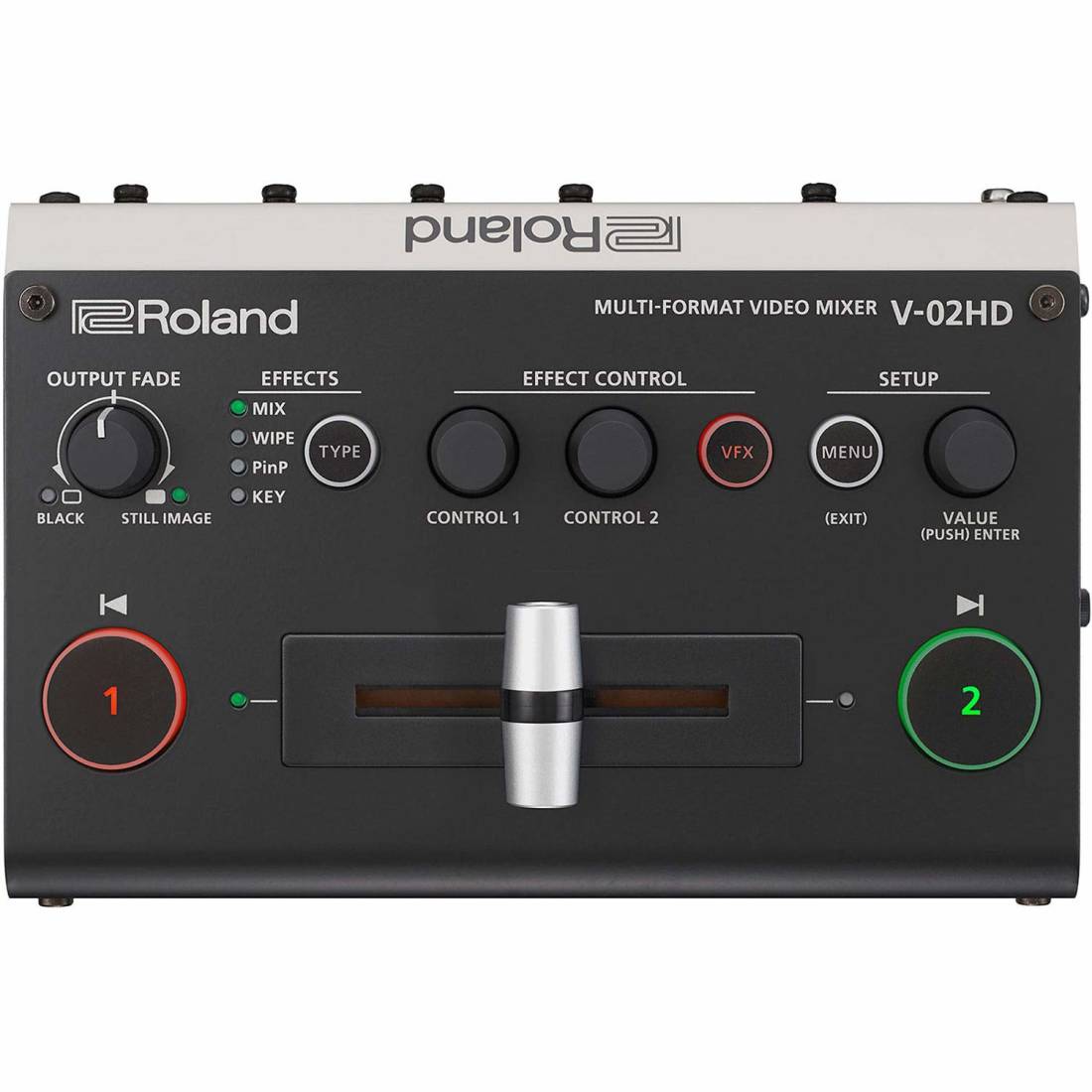

Roland V-02HD Multi-Format Video Mixer

V-02HD
Events or productions often bring serious challenges that are easily solved if you have the right equipment. Rolands versatile V-02HD multi-format video mixer replaces several standalone units; a simple switcher, high-quality scaler, input expander, audio solution and inline video effects / composition. Save on space and headaches by packing a V-02HD; the portable-yet-powerful device that lets you concentrate on producing your event or shooting your scenes, rather than trouble-shooting your gear.

The V-02HD offers 14 visual effects, five composition effects for titling, a keying effect for green screen, and a PiP function. It incorporates a T-bar for seamless switching and supports multiple HD video resolutions up to 1080p60 with 10-bit 4:4:4 color. Designed to integrate with standard video production workflows, the minimal-latency V-02HD can also be used to add that extra input you find yourself needing when all options on your larger mixer are already in use. Compact as it is, the V-02HD doesnt skip on audio features. It both embeds and de-embeds audio for flexible input and output and incorporates three-band EQ and dynamics. A built-in audio effects library includes presets for common situations like interviews, ambient sound capture, and wind noise reduction when shooting outdoors.

SPECIFICATIONS
VIDEO
• Video Processing: 4:4:4 (Y/Pb/Pr), 10-bit

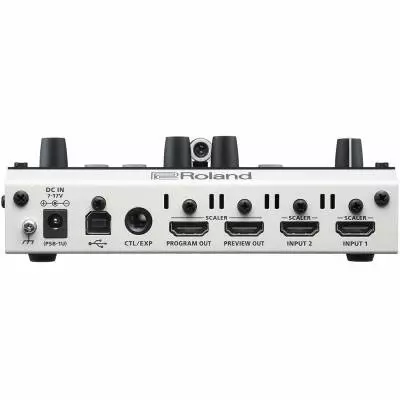

• Input Connectors: INPUT 1--2: HDMI type A x 2 (HDCP and Multi-format Supported)
• Output Connectors: PROGRAM OUT: HDMI type A, PREVIEW OUT: HDMI type A (HDCP and Multi-format Supported)
• Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
• Output Formats: 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 800/60 Hz), FWXGA (1366 x 768/60 Hz)
SXGA (1280 x 1024/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
• Video Effects: Transition: CUT, MIX (DISSOLVE), WIPE (9 types)
Composition: PinP (SQUARE, CIRCLE, DIAMOND), KEY (Luminance Key, Chroma Key)
Visual Effects (14 types): MOZAIC, WAVE, RGB REPLACE, COLORPASS, NEGATIVE, COLORIZE, POSTERIZE, SILHOUETTE, EMBOSS, FINDEDGE, MONOCOLOR, HUE OFFSET, SATURATION OFFSET, VALUE OFFSET
• Others: Flip horizontal, Flip vertical, Still Image Capture, Still Image Playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
AUDIO
• Audio Processing: Sampling rate: 24 bits/48 kHz
• Audio formats: Linear PCM, 24 bits/48 kHz, 2ch
• Input Connectors: INPUT 1--2: HDMI Type A x 2

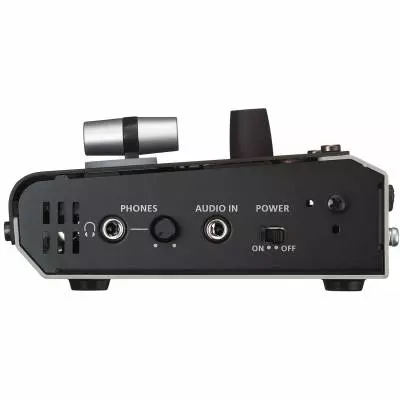

AUDIO IN: Stereo miniature type
• Output Connectors: PROGRAM OUT: HDMI type A
PREVIEW OUT: HDMI type A
PHONES: Stereo miniature type
• Input Level: AUDIO IN: -10 dBu (Maximum: +8 dBu)
• Input Impedance: AUDIO IN: 45 k ohms
• Output Level: PHONES: 92 mW + 92 mW (32 ohms)
• Output Impedance: PHONES: 10 ohms
• Audio Effects: Delay, High pass filter, Compressor, Noise gate, Equalizer, Multi-band compressor, Limiter, Test tone output
OTHERS
• Other Connectors: USB: USB B Type (for backup from PC, for remote control from iPad), CTL/EXP:1/4-inch TRS phone type
• Other Functions: Preset Memory (8 types), Panel lock function, EDID Emulator, Auto Scan, Auto Input Detect
• Power Consumption: 10.0 W
• Dimensions: 160mm x 108mm x 51mm (6-5/16" x 4-1/4" x 2-1/16")
• Accessories: Startup Guide, AC adaptor, Power cord, Cord hook
