iZotope

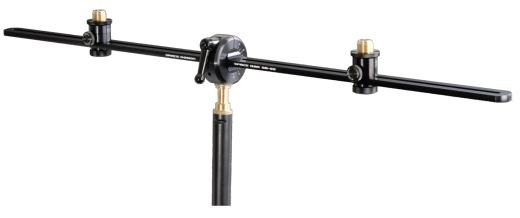

Stereo Microphone Positioning System

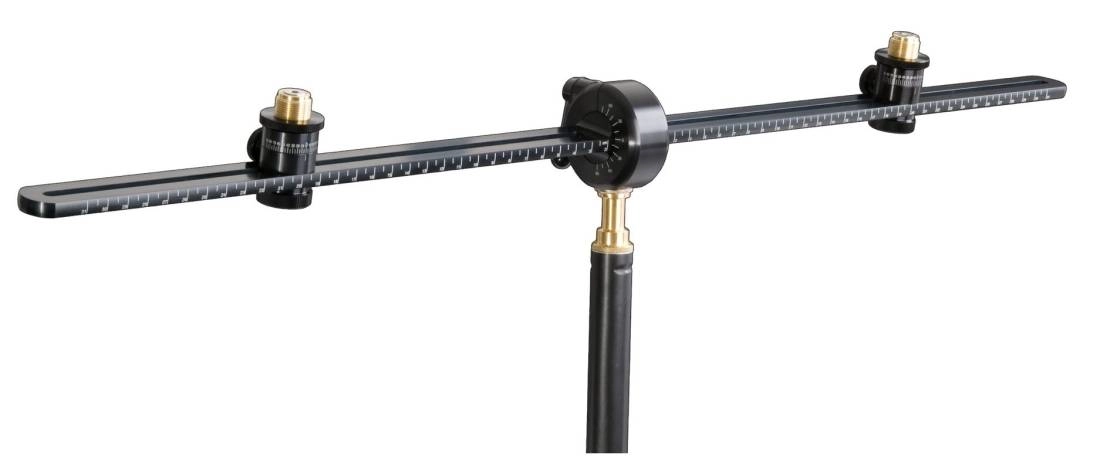

The Spacebar microphone positioner allows for precise and repeatable setting of microphone capsule spacing, angle of incidence, and rotation around the x axis. With precision scales for angle and distance engraved on the Spacebar components, it becomes easy to make perfectly measured and repeatable stereo microphone setups.

As well as being able to precisely set microphones in standard stereo configurations (i.e. XY, ORTF, NOS, and AB 50cm), the Spacebar allows for exact settings through the entire continuum of angle and spacing. This allows the user to adjust the stereo microphone array and tailor the pickup field to suit virtually any recording environment.

The Spacebar system is precision fabricated from machined aircraft aluminum, brass, and stainless steel. Each system consists of a center stand clamp, horizontal bar, and microphone holders. The SB-30 and SB-66 are both supplied with two microphone holder assemblies and an additional tall microphone holder. The taller microphone holder body can be used to raise one microphone to avoid interference if the mic spacing requires that the microphone bodies overlap.

Features
• 2 microphone holder assemblies
• Tall microphone holder for overlapping microphone configurations
• High-quality aircraft aluminum, brass, and stainless steel construction
• Minimum Spacing: 7cm (2.75)
• Maximum Spacing: 61cm (24)
