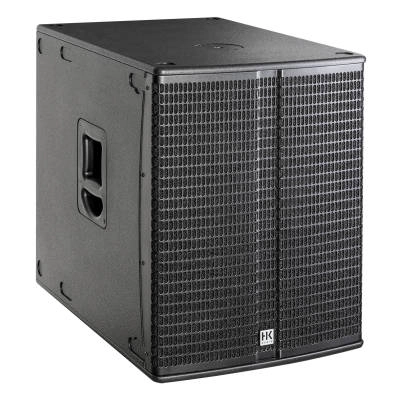

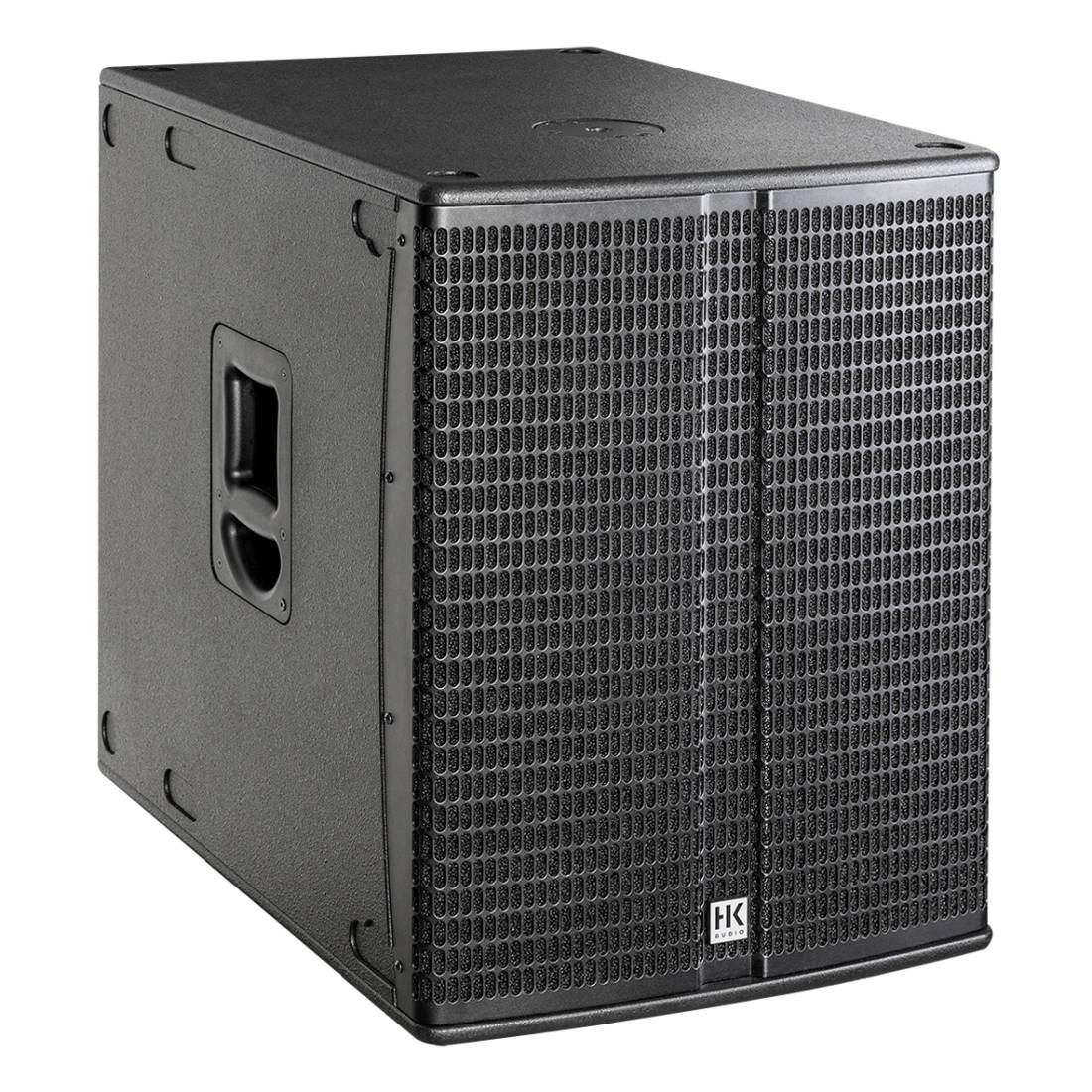

HK Audio LINEAR SUB 1800 A Active Subwoofer
Additional Photos:
LINEAR SUB 1800 A - an 18" bass reflex subwoofer - is packed full of low end. Unrivaled power, SPL of up to 132 dB and thumping bass (all the way to 38 Hz) make this powered sub the ideal add-on to mid/high units from the LINEAR 3 family when you need just a little more loudness and low end. LINEAR SUB 1800 A can also be used in combination with mid/high units from the LINEAR 5 family, or as a bass extension to the ELEMENTS BIG BASE system.
Features
• Compact powerful subwoofer
• 1200 watts
• 1x 18″ Speaker
• 132 dB Max SPL Peak @ 10% THD (halfspace)
• Ideal add-on to mid/high units from the LINEAR 3 family
• Can also be used in combination with LINEAR 5 mid/high units, or as a bass extension to the ELEMENTS BIG BASE system
• Rugged wood enclosure
• Adjustable X-over frequency
• Integrated HK Audio MultiGrips
Details
• Max SPL: 130dB half space (@ 10% THD)
• Max SPL peak: 132 dB half space (@ 10% THD)
• Max SPL calculated: 133 dB half space
• Frequency response: +/- 3 dB: 42 Hz X-Over
• Frequency response -10dB: 38 Hz X-Over
• Power Rating: 1200 W
• Amplifier: Class D
• Active protection circuits: Under-voltage, thermal, short circuit, and over-current protection, Subsonic 24 dB/oct. peak limiter
• LF Speaker: 1x 18"
• Cut-off Frequency active: 100/120 Hz variable with 24 dB/oct.

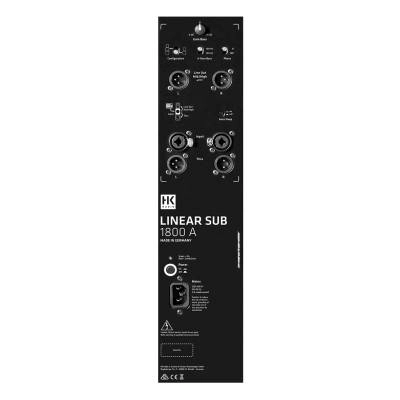

• Connections: 2x XLR Combo In bal., 2 x XLR Thru bal., 2x XLR-Mid/High Out
• Input Sensitivity: +4 dBu @ Gain center-notched

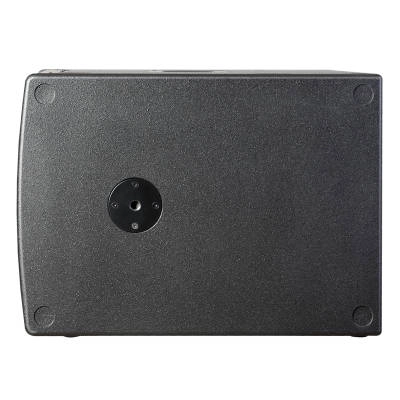

• Pole mount: 1x M20 (K&M)

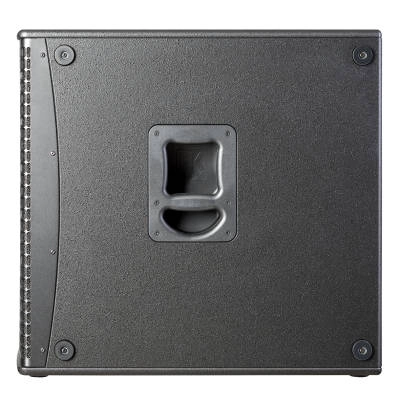

• Handles: 4x HK Audio MultiGrip
• Enclosure: MDF 16 mm
• Grille: 2 mm metal grille backed with black acoustic foam
• Finish: Acrylic enamel, black
• Optional accessories: Protective cover, Stereo Pole Add-On M20, tilt unit, 100 mm casters
• Dimensions (WxHxD): 51.0 x 67.0 x 72 cm
• Weight: 42 kg / 92.6 lbs.
