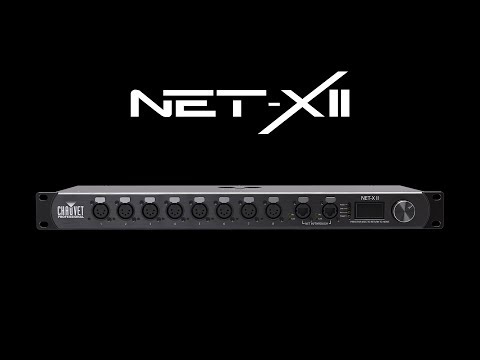

Chauvet DJ Net-X II - Art-Net to DMX Adapter

All-in-One Lighting, Networking and Data Distribution
Net-XII is a versatile rack-mountable Ethernet-to-DMX node, which also functions as a merger for two controllers on either Ethernet or DMX inputs. It has the ability to record up to 10 DMX presets, which can be triggered remotely. Net-X II has two 5-pin DMX inputs and eight 5-pin DMX outputs all optically isolated, and can output up to eight universes simultaneously. The eight 5-pin DMX outputs can be individually assigned to either of the two DMX inputs (or the Ethernet inputs to mix network inputs with DMX inputs in a single device). LTP and HTP merging fully supports network protocols sACN, Art-Net or DMX to merge two incoming controllers to any DMX output. It has RDM over network functionality. Net-X II provides a reliable platform for novice users with its preset configuration library, while providing experts with a highly customizable network infrastructure for complex control systems.

Features
• 5-pin DMX splitter/distributor
• Art-Net/sACN to DMX converter, up to 8 universes
• DMX to Art-Net/sACN converter, up to 8 universes
• Merge two 5-pin DMX universes into a single universe, or merge 2 NET controllers (Art-Net or sACN) into the same universe, then convert to standard 5-pin DMX for the outputs
• HTP (highest takes priority) and LTP (latest takes priority) merge functions supported
• Backup settings and configurations with same or other NET-X IIs
• Webserver supported for remote configuration and backup/update
• Integrated Record function allows you to record looks from a controller and save them into memory (10 shows in memory, 100 steps each) to trigger up to 4 shows/zones simultaneously using the 5-wire Phoenix cold contacts on the rear of the unit
• Supports RDM over Art-Net for remote fixture management

Specifications
Optical
Dimensions: 19 x 6.22 x 1.73 in (483 x 158 x 44 mm)Weight: 4.6 lb (2.1 kg)Threaded Bolt: M12Exterior Color: BlackHousing Material: SteelRackmount: 1U
Construction/Physical
• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Device Data Inputs: Neutrik etherCON (1 total) and 5-pin XLR (2 total)
• Device Data Outputs: 5-pin XLR (8 total)
• Device Date Throughputs: Neutrik® etherCON® (1 total)
• Cable Length (power): 5 ft (1.5 m)
Control
• Control Protocol: Art-Net, DMX, sACN
• Merge Support: Yes
• Protocol Merging: (2) Art-net consoles, (2) DMX consoles, (2) sACN consoles
Electrical
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 11 W, 0.09 A @ 120 V, 60 Hz
• Power and Current: 14 W, 0.06 A @ 208 V, 60 Hz
• Power and Current: 14 W, 0.06 A @ 230 V, 50 Hz
Certifications
• CE
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 F to 113 F (-20 C to 45 C)
What's Included
• Net-X II
• Neutrik powerCON power cord
• Phoenix connector
