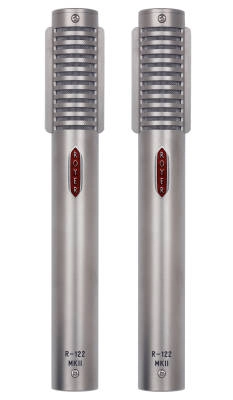

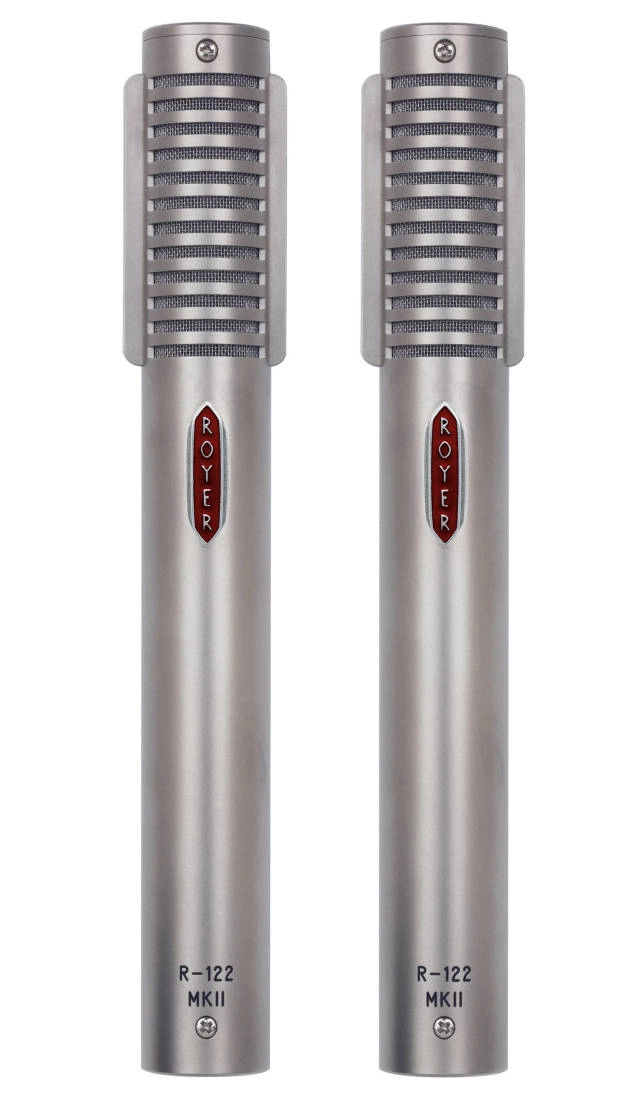

Royer R-122 MKII Live Active Ribbon Microphones - Matched Pair
RO-R122MK2LMP
In-Store
The R-122 MKll Live is visually differentiated by its red logo. The ribbon element thickness is increased from 2.5-microns to 4-microns, giving the microphone greater durability and a slightly reduced high end response. Highs are often rolled off in live performances, but due to the R-122 MKll Lives smooth high frequency response, it needs less eqing than is usually required with condenser and dynamic microphones.
The Pad
The R-122 MKll's switchable -15 dB pad is positioned before the microphone's electronics and, when engaged, eliminates headroom-related distortion or preamplifier overload on even the loudest sound sources. Wide open electric guitars are no problem. With the pad in, the R-122 MKll's output is actually 2 dB lower than Royer's flagship R-121.
The Bass Cut
When switched in, the R-122 MKll's bass cut starts filtering at 100 Hz, 6 dB per octave, effectively reducing the mic's bass buildup due to proximity effect. This smooth filter is extremely useful on close-miked electric guitars when less bottom end is desired.
Figure-8's On Stage
The R-122 MKll Live's pickup pattern is figure-8, which can be used to control stage bleed with great effect. Side rejection in the null points is strong- simply position the mics "ears" to face the offending instrument(s) and bleed will be virtually eliminated. The top and bottom of the microphone are also null points. If monitors are in close proximity to the rear side of the microphone, a positioning adjustment can place the monitors output in the mic's null, isolating the monitor from the mic's pickup areas.
Patented Offset Ribbon Technology
The R-122 MKll Live's proprietary offset ribbon transducer is the first of its kind, positioning the ribbon element closer to the front (logo) side of the microphone. This arrangement gives the ribbon more room to move within the prime magnetic field while maintaining full frequency response on high SPL applications. It's an integral piece of the magic of all Royer R-series microphones.
Features
• Phantom powered circuitry provides high output and impedance matching
• -15 dB pad before the mic's electronics gives more headroom when activated.
• Bass cut filter reduces proximity effect and bass below 100 Hz when activated
• High SPL Capabilities
• No distortion up to maximum SPL rating
• Extremely low residual noise
• Ribbon element is not affected by heat or humidity
• Absence of high frequency phase distortion
• Equal sensitivity from front or back of element
• Consistent frequency response regardless of distance
• Rear side of mic records slightly brighter when three feet or closer to sound source
Applications
• Drum Overheads
• Percussion Instruments
• Electric Guitar
• Acoustic Guitar
• Solo Brass
• Horn Sections
• Solo Saxophone
Specifications
Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics.

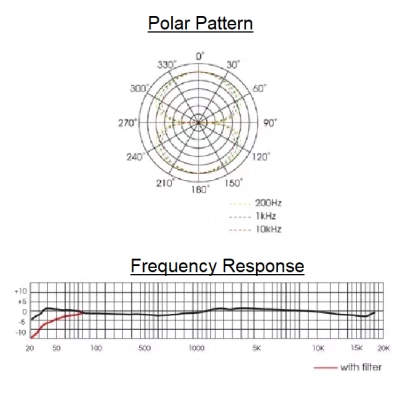

Polar Pattern: Figure-8
Generating Element: 4-micron aluminum ribbon
Magnets: Rare Earth Neodymium
Frequency Response: 30 - 15,000 Hz +/-3 dB
Sensitivity: -36 dB (re. 1v/pa +/-1 dB)
Switchable Pad: -15 dB
Switchable Bass Cut: 100 Hz (6 dB per octave)
Self-Noise: < 18 dB
Output Impedance: 200 Ohms, balanced
Output Connector: Male XLR 3-pin (Pin 2 Hot)
Rated Load Impedance: 1K-Ohm minimum
Maximum SPL: 135 dB @ 30 Hz
Power Requirements: 48-Volt Phantom Only
Supply Current: 4 mA
Dimensions: 206mm x 25mm (8 1/8" x 1")
Weight: 309 grams (10.9 oz)
Accessories: Protective wood case, mic sock
