Yorkville Sound Elite Series Powered Subwoofer - 2 x 10 inch Woofers - 720 Watts

Departments > Pro Audio & Recording > Subwoofers > Speakers - Subwoofer-Powered > Yorkville Sound > Elite Series Powered Subwoofer - 2 x 10 inch Woofers - 720 Watts
Add to Wish List
SKU: # 325077
Model: #

LS701P

This product is no longer available.
Yorkville's powered lite subwoofers reflect the synergistic advantage of integrating electronic and acoustic elements into one attractive package that is very versatile, transportable and, above all - great sounding! These enclosures offer the ultimate in 'plug and play' convenience while maximizing sonic performance. Advanced sensing circuitry offers sonically transparent limiting and thermal driver protection for maximum reliability.

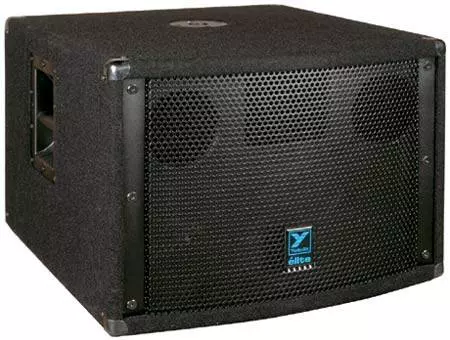

The lite LS701P is a low profile, compact high-output, powered subwoofer with two 10-inch cast-frame speakers and a built-in 1200 Watt (Peak) power amplifier.

The precisely tuned band-pass enclosure of the LS701P provides rock-solid low frequency output previously available only from much larger cabinets. In fact, the unique combination of high-excursion woofers, electronic control and proprietary, series-loaded box design results in higher acoustic output than many single 18" enclosures which are 30-50% larger!

LS701P - Black Ozite (Carpet) Finish
LS701PB - Black Ultrathane (Paint) Finish

Features:
• Integrated 1200 Watt Amplifier (Peak - 720 Watts Program)
• 2 x 10-inch Woofers
• Max SPL 138dB Peak (131dB Continuous)
• 45Hz - 125Hz Frequency Response
• Paralleled 1/4-inch Selectable Line or Speaker Level Inputs
• Excursion, Peak and Thermal Woofer Protection
• Integrated All Metal Speaker Pole Mount Adaptor
• Solid 5/8-inch (15mm) Birch Plywood Construction
• Made in Canada

Specifications:
• System Type: Subwoofer
• Active or Passive: Active
• Program Power (Watts): 720 Watts (1200 Watts Peak)
• Max SPL (dB): 138dB Peak (131dB Continuous)
• Frequency Response (Hz +/- 3dB): 45 - 150
• Driver Configuration: 2 x 10 inch, Cast Frame Woofers
• LF Protection: Electronic Limiting (excursion, thermal, clip)
• Cooling Scheme: Passive Convection
• Power Cable: Yes
• Power Switch: Yes
• Power Consumption (typ/max): 300/480VA (4A@60hz, 2A@50hz)
• Inputs: L & R Male/Female XLR Links
• Inputs - 1/4 IN Jacks: 1 In, 1 Link Out (line or speaker level)
• Inputs - XLR: L & R Male/Female XLR Links
• Level Controls: Main Volume
• EQ Controls: High Frequency Cut-Off
• Other Controls / Features: Selectable line or speaker level input
• Ground lift switch
• Corners: Black Steel
• Feet: Plastic Glides
• Bar Handles: 2 side mounted
• Enclosure Materials: 15mm (5/8inch) 11-ply Russian Birch
• Grille: Heavy gauge perforated metal
• Covering / Finish: Black Ozite (Carpet)
• Optional Covering / Finishes: Black Ultrathane Paint (LS701PB)
• Dimensions (DWH xbackW COM inches): 24.5 x 24 x 17.5
• Dimensions (DWH xbackW COM cm): 62.1 x 61 x 44.5
• Weight (lbs/kg): 94.5 / 42.9
