Departments > Pro Audio & Recording > Mixers > Mixers - Digital > PreSonus > StudioLive 32SX Scalable 24/32 Ch 26 Bus Digital Mixer


StudioLive 32SX Scalable 24/32 Ch 26 Bus Digital Mixer

SKU: # 713705   |   Model: # 2779200403   |    Product Reviews1 Reviews  Write a Review

StudioLive 32SX Scalable 24/32 Ch 26 Bus Digital Mixer

Additional Photos:

StudioLive 32SX Scalable 24/32 Ch 26 Bus Digital Mixer
StudioLive 32SX Scalable 24/32 Ch 26 Bus Digital Mixer

Product Videos :

YouTube Video
YouTube Video
Your Price: $4,159.99 CDN
or from $192 CDN/mo

Buy Online

 Add to Cart

Buy In-Store

Power Meets Efficiency.

Loaded with the processing power, studio-grade audio quality, and flexible routing options that made StudioLive mixers famous, the StudioLive 32SX is the perfect compact 32-channel digital mixing solution. Powered by the dual-core PreSonus FLEX DSP Engine, the StudioLive 32SX digital mixer is equipped with 40 mixing channels, 26 mix buses, and 286 simultaneous processors-including 4 stereo reverberation systems, and Fat Channel plug-in models on every input and mix. The low profile of the StudioLive 32SX makes it an ideal solution for any mixing environment where desk real estate is at a premium. The split-fader workflow lets you manage 32 input channels in two fader layers, while still providing access to your mix outputs on eight additional faders. With 32 XMAX mic preamps and 16 balanced mix outputs, the StudioLive 32SX packs connectivity and power into an efficient use of space.

The Scalable Digital Mixer.
The StudioLive 32SX digital mixer and the complete PreSonus StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mixes. Connect a StudioLive 32R to use as a remote stage box or monitor mixer. Multiple StudioLive Series III digital mixers can be networked, allowing you to route audio to and from any device on the audio network thanks, to the flexibility of Digital Patching onboard your StudioLive 32SX digital mixer and in UC Surface remote mixer software.

The Best Music Recording Software, Included!
Studio One revolutionized music recording, making common mixing and production tasks as easy as drag-and-drop. Tight integration with StudioLive 32SX digital mixers allows you to control preamp levels and more right from the Studio One software console. Press the DAW button on your StudioLive 32SX, and your Studio One controls are right under your fingertips on your digital mixer. Studio One control can be toggled on and off, allowing you to quickly switch between your live mix and your production mix with the press of a button. Studio One Artist is included with the StudioLive 32SX, so you can start recording right out of the box.

Remote Control Your Digital Mixer from Anywhere- On Any Device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS, Windows, iPad and Android. Control your monitor mixes with QMix-UC for iPhone, iPod touch, and Android devices. Whether you're adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 32SX digital mixer, remotely controlling your mix from anywhere just got easier.

The Digital Mixer Built to Record Music.
With 128 (64x64) channels of recording over USB, you can record every input channel and bus on your StudioLive 32SC for the ultimate recording rig. Each channel can independently access its analog input or its dedicated digital return from your computer. Ten vintage EQ and classic compressor Fat Channel plug-in models are included and can be used onboard your mixer, as well as within Studio One. When you're ready for more signal processing options, PreSonus offers four Fat Channel plug-in collections with 15 additional models. Fat Channel plug-ins can be inserted on every input channel and output bus, giving you extensive, studio-style processing while mixing and recording.

Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies; these are real-deal workhorses that you'll rely on for countless mixes.

• Powered by the new dual-core PreSonus FLEX DSP Engine to provide the most processing of any digital mixer in its class
• 40 input-channel digital mixer with 25 touch-sensitive motorized faders
• 26 mix buses
• 286 simultaneous processors
• State Space-Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
• FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
• 128-channel (64x64) recording over USB
• Onboard multi-channel SD recorder (34x34) with true Virtual Soundcheck mode
• Remote control every mix function from your computer, iPad, or Android tablet with UC Surface
• Capture 3.0 multitrack software included
• Advanced Studio One integration (Studio One Artist Included)

Microphone Preamplifier
Input Type: XLR Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, +/-0.5 dBu
Input Impedance: 1 kΩ
Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
Gain Control Range (+/- 1 dB): 0 dB to +60 dB
Maximum Input Level (unity gain): +12 dBu
Phantom Power (+/-2 VDC): 48 VDC, switchable per channel
Line Inputs
Grade: 1/4" TRS Female, balanced
Frequency Response to Main Output (at unity gain): 20-20 kHz, 0.5 dBu
Input Impedance: 10 kΩ
Maximum Input Level: +18 dBu
Tape Inputs
Grade: RCA Female, unbalanced (stereo pair)
Maximum Input Level: +12 dBu, +/-0.5 dBu
XLR Outputs
Grade: XLR Male, balanced
Maximum Output Level: +24 dBu, +/-0.5 dBu
Output Impedance: 100Ω
Line Outputs
Grade: 1/4" TRS Female, balanced
Maximum Output Level: + 18 dBu, +/-0.5 dBu
Output Impedance: 100Ω
Tape Outputs
Grade: RCA Female, unbalanced (stereo pair)
Maximum Output Level: + 18 dBu, +/-0.5 dBu
Output Impedance: 100Ω
Headphone Output
Grade: 1/4" TRS Female, active stereo
Maximum Output: 100 mW / ch. @ 60Ω load
Frequency Response: 20 Hz - 20 kHz (+/-0.5 dB)
S / N ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd
Digital Audio and Control
ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
USB Recording Port: USB 2.0, Type-B
AES / EBU output: XLR Male
Network Control Port: RJ-45
AVB Audio Network Port: Locking XLR Ethernet
Internal Processing: 32-bit, floating point
Sampling rate: 48 kHz, 44.1 kHz
A / D / A Bit Depth: 24
Reference Level for 0 dBFS: +18 dBu
Total System Latency: 1.9 ms (local routing, analog in-analog out, all processing active)
Power / Environmental
Connector: IEC
Input-Voltage Range: 90 to 230 VAC (+/-10%)
Power Requirements (continuous): 85W
Recommended Ambient Operating Temperature: 0⁰ to 40⁰ Celsius / 32⁰ to 104⁰ Fahrenheit
Dimensions: 25.98" x 22.97" x 6.51" / 65.98cm x 58.38cm x 16.54cm
Weight: 30 lbs. / 13.6 kg


Watch Video
Youtube video product demo
Watch Video
Youtube video product demo

Q & A

There are currently no questions for this product.

CCBot/2.0 (
Un vrais montre en miniature du son 110%/100 3 of 4 customers found this review helpful
Product Experience   I own it
Closest Store   Longueuil, Quebec
en 2017 j'ai été le premier a l'acheter au Québec je résidais a Longueuil. c'est une machine dont mes mots ne sauraient décrire a la juste valeur ou capacité. ils est complexe mais en même temps un vrais montre du son de studio. très puissant pour les Lives . si vous êtes très rigoureux en qualité de son ce produit est pour vous . contrôle a distance par ios ou androïde ou Windows je le note110%/100 . depuis 2017 le prix presque le même.
Posted by michel on Aug 9, 2022
Was this review helpful? Vote helpful Vote not helpful flag this review

Available In Gear Hunter

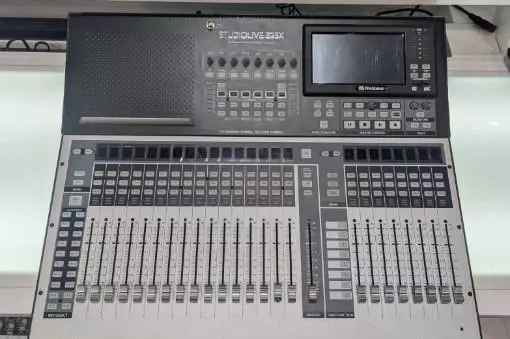

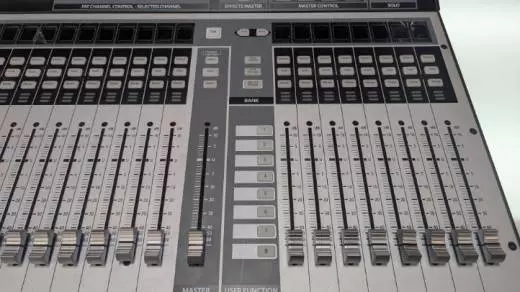

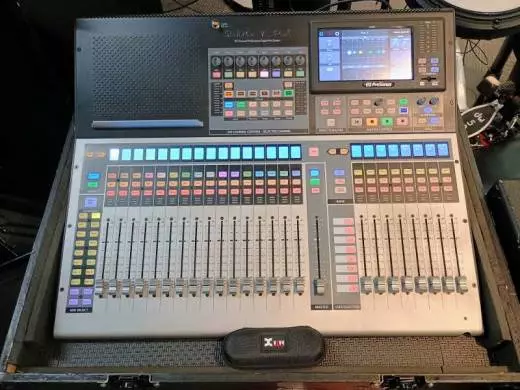

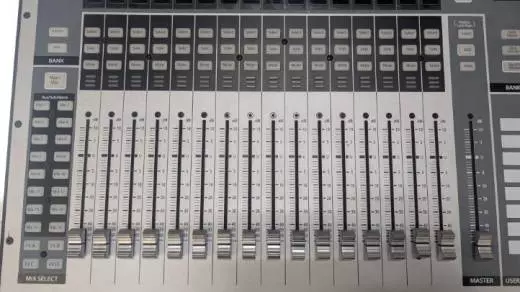

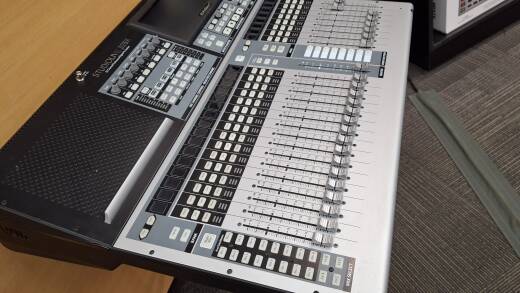

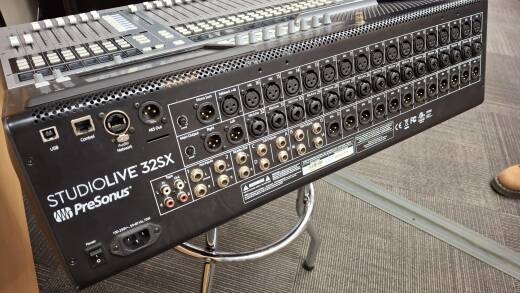

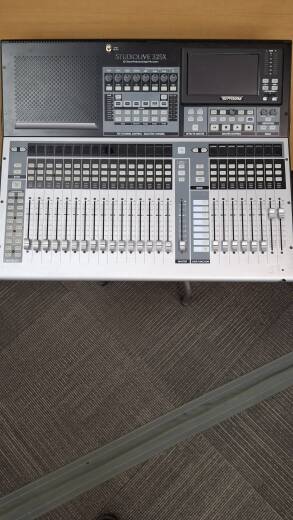

Store Special Product - PreSonus - Studiolive 32SX
