Turbosound IQ15 2500W 2-Way 15'' Powered Loudspeaker

The 2,500-Watt iQ15 is a powered two-way loudspeaker ideally suited for a wide range of portable and fixed installation, music and speech sound reinforcement applications. The driver complement includes an 15" low frequency driver with a low mass voice coil for improved transient response, and a high temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction.

Equipped with a very efficient and lightweight two channel KLARK TEKNIK Class-D power amplifier, the iQ15 provides an impressive 2,500 Watts of output power. A high degree of control over the loudspeaker system's performance is managed by a sophisticated, but easy to use KLARK TEKNIK Digital Signal Processor (DSP), which provides dynamic EQ for remarkable full range response at low volume levels, and transparent limiting for the utmost clarity at high output levels - and long-term reliability. iQ15's advanced DSP speaker modelling presets include detailed and accurate models of some of the audio industry's most-respected loudspeakers.

Spatial Contour Control
KLARK TEKNIK also developed a highly versatile Spatial Contour Control (SCC) DSP function, which allows the user to easily optimise the iQ15's frequency response for the physical speaker placement. This advanced functionality provides frequency compensation for stand, floor, wall or ceiling placement, much like the adjustments commonly found on studio reference monitors.

ULTRANET Technology
The iQ15 also features our proprietary ULTRANET technology, which allows the use of CAT5 cables for transmitting pristine multi-channel audio signals and other information between ULTRANET-enabled products, such as digital mixers and personal monitor systems. This digital distribution networking not only eliminates the potential for RFI and crosstalk so common to analogue methods, but also significantly reduces the setup or installation time required. An onboard USB port provides access for remote control of the iQ15 via PC computer, as well as DSP and speaker modelling firmware updates.

Features
• 2 way full range loudspeaker for portable PA and installation applications
• 2,500 Watt power featuring Klark Teknik Class-D technology
• Klark Teknik Digital Signal Processing for total system control
• Speaker modelling includes accurate models of industry standard speakers
• SCC (Spatial Contour Control) compensates frequency response in relation to physical speaker placement
• ULTRANET digital audio networking connects to mixers and other sources
• 15" low frequency driver with low mass voice coil for improved transient response
• High temperature 1" compression driver with copper-clad aluminium voice coil for extended high frequency reproduction
• Fully featured user interface with LCD display for ease of navigation
• PC remote control software downloadable at turbosound.com
• Lightweight fibre glass reinforced composite enclosure
• Dual angle pole mount for accurate audience coverage
• Multiple internal rigging points for installation applications
• Mains input and link output on Neutrik powerCON connectors

Specifications
System
Frequency response:
• 50 Hz 18 kHz 3 Db
• 42 Hz 20 kHz -10 dB
Nominal dispersion: 75⁰ H x 55⁰ V @ -6 dB points
Maximum SPL: 132 dB peak
Crossover type: Active
Transducers:
• 1 x 15" (387 mm) LF driver
• 1 x 1" (25.4 mm) HF compression driver
Limiter: Independent HF, LF, peak and rms
Amplifier
Maximum output power: 2,500 W
Type: Class-D
Protection: Short circuit, open circuit, thermal

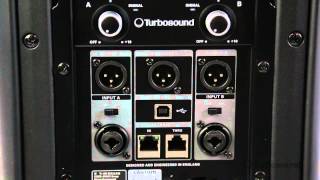

Connectors:
• Input A / B
• 2 x combo jack/XLR
Sensitivity: Line +4 dBu, mic -22 dBu, switchable
Input impedance: 20 kO unbalanced, 40 kO balanced
Maximum input level: +21 dBu
Output A / B: 2 x XLR Linked to input
Mix output: XLR, balanced
Output impedance: 100 O unbalanced, 200 O balanced
Ultranet input/link: 2 x RJ45
Mains Supply: Neutrik powerCON input 20A and link 15A
Controls
DSP:
• 2 x gain controls (channels A and B)
• 2 x Line/Mic switch
Mixer section:
• 2 x gain controls (channels A and B)
• 2 x Line/Mic switch
User DSP Functions
Factory EQ presets: Positioning, Sound mode, Sound modeling, FBQ
Display: LCD 128 x 32, blue backlit
Delay: 0 - 300 ms
Equalisation: High and low shelving EQ, 2 x parametric EQ
Limiter: Zero attack input limiter
Presets: 20 total presets, 19 user-definable
Crossover: High Pass L-R 24 dB/oct
Protection: Lock-out function for all settings
Power Supply
Power consumption: 150 W @ 1/8 max power
Voltage (fuses): 120 V~, 60 Hz (T 15 A H 250 V)
Enclosure
Dimensions: 711 x 450 x 381 mm (27.9 x 17.7 x 15.0")
Net weight: 26.1 kg (57 lbs)
Flying hardware: M10 x 3 points
