BOSS

Katana MkII takes the acclaimed Katana guitar amp series to the next level, turbocharging the core platform with more sounds, more effects, and more features. Newly voiced variations are now available for all five amp characters, doubling the tonal options. And the onboard effects categories have been expanded from three to five, providing even more real-time processing to choose from. The usability has been ramped up too, with a power amp input for modelers and multi-FX, easy stereo expansion for dual amp setups, updated editor software, and many other enhancements.

Katana-100 MkII MAIN FEATURES

• Stage-ready 100-watt combo amp with a custom 12-inch speaker
• Tube Logic design approach produces class-defying power, authoritative punch, and cutting presence
• Five unique amp characters (Clean, Crunch, Lead, Brown, and Acoustic), plus newly voiced variations for each
• Five independent effects sections (Booster, Mod, FX, Delay, and Reverb), with three selectable variations in each
• Dedicated Pedal FX for foot-controlled wah and pedal bend
• Updated BOSS Tone Studio software for customizing your sound with over 60 different BOSS effects, channel and global EQs, adjustable routing, and much more
• Power Amp In for preamps, modelers, and multi-effects
• Stereo Expand out to link with a second Katana MkII (100-watt models only)
• Eight Tone Setting memories for storing and recalling all amp and effect settings
• Power Control for achieving cranked-amp tone and response at low volumes
• Three Cab Resonance options (Vintage, Modern, and Deep), selectable in BOSS Tone Studio
• Mic'd cabinet emulation on the line, USB, and phones/recording outputs, with three Air Feel settings available in BOSS Tone Studio
• Optional GA-FC foot controller provides complete amp control, including Tone Setting selection, effects on/off, expression pedal control, and more
• Connections for up to two footswitches or an expression pedal
• Effect loop, with selectable series/parallel operation and adjustable level in BOSS Tone Studio
• Pro setups available at BOSS Tone Central

SPECIFICATIONS

Rated Power Output: 100 W

Nominal Input Level
• INPUT: -10 dBu (1 M ohm)
• AUX IN: -10 dBu (20 k ohms)
• RETURN IN: -10 dBu (100 k ohm)

Speaker: 30 cm (12 inches) x 1

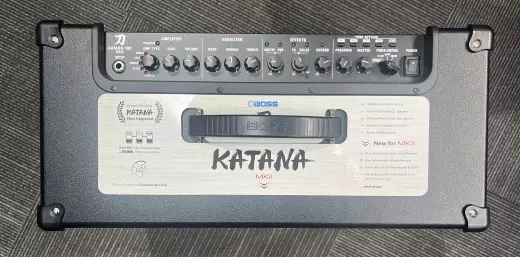

Controls:
• POWER switch
• MASTER knob
• PRESENCE knob
• POWER CONTROL switch (STANDBY, 0.5 W, 50 W, 100 W)

[AMPLIFIER]
• VARIATION button
• AMP TYPE knob (ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN)
• GAIN knob
• VOLUME knob

[EQUALIZER]
• BASS knob
• MIDDLE knob
• TREBLE knob

[MULTI EFFECT]
• BOOSTER button
• MOD button
• FX button
• DELAY button
• REVERB button
• TAP button
• BOOSTER knob
• MOD knob
• FX knob
• DELAY knob
• REVERB knob

[TONE SETTING]
• CH1-4 buttons
• PANEL button

[STEREO EXPAND]
STEREO EXPAND switch

Indicators: VARIATION, ACOUSTIC, CLEAN, CRUNCH, LEAD, BROWN, BOOSTER, MOD, FX, DELAY, REVERB, TAP, CH1, CH2, CH3, CH4, PANEL

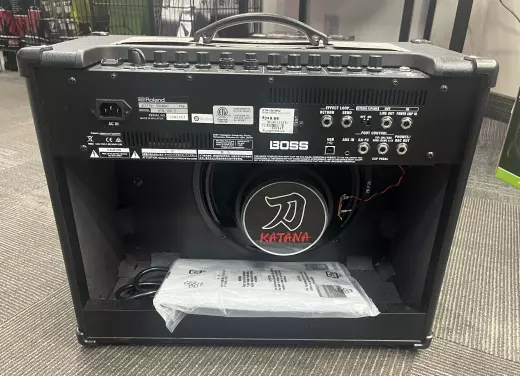

Connectors
• INPUT jack: 1/4-inch phone type
• POWER AMP IN jack: 1/4-inch phone type
• LINE OUT jack: 1/4-inch phone type
• SEND jack: 1/4-inch phone type
• RETURN jack: 1/4-inch phone type
• REC OUT/PHONES jack: Stereo 1/4-inch phone type
• EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
• GA-FC jack: 1/4-inch TRS phone type
• AUX IN jack: Stereo miniature phone type
• USB port: USB B type
• AC IN jack

Power Consumption: 77 W

Dimensions (Includes handle and rubber feet): 530 (W) x 248(D) x 484(H) mm / 20-7/8 (W) x 9-13/16 (D) x 17-1/2 (H) inches

Weight: 14.8 kg / 32 lbs 11 oz

Included Accessories:
• Owner's manual
• Power cord
• GA-FC sticker

*0dBu=0.775 Vrms
