Heritage Audio 1073 80-Series Microphone Preamp Module

Add to Wish List
SKU: # 721426
Model: #

HA1073

Your Price: $3,139.00 CDN

Online

In-Store

The Heritage Audio 1073 Microphone Preamplifier Module is an 80 series compatible 80 dB microphone and 10 dB line recording reproduction module based on the vintage 1073 designed by Rupert Neve. The remake is intended for recording engineers who want the classic Neve sound. This module features the same Class A circuitry, the same specifications, and the same construction techniques used in the original 1073.

The unit supports selectable HI-LO minimum balanced and floating input impedances that accommodate a range of microphone types including vintage ribbons. It includes a 16 dB selectable low frequency Baxandall shelving EQ at 35 Hz, 60 Hz, 110 Hz, and 220 Hz. For mid frequencies, the unit includes a dual inductor based 18 dB peaking fixed 'Q' equalizer with center frequencies at 360 Hz, 700 Hz, 1600 Hz, 3200 Hz, 4800 Hz, and 7200 Hz. An 18 dB per octave slope inductor based high pass filter switch allows you to cut below 50 Hz, 80 Hz, 160 Hz, or 300 Hz depending on the application. An EQ button allows for the equalizer to be turned on or off and a phase button allows you to flip the signal 180⁰.

Features
• 80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
• 10dB Class A Line Amplifier, Bridging input impedance, balanced and floating.
• Class A, single ended, 2N3055 driven high headroom output stage.
• High Frequency: +/-16dB shelving at 12 kHz, Baxandall type.
• Low Frequency: +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz, Baxandall type.
• Mid Frequency: +/-18dB peaking, fixed 'Q', selectable center frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz and 7.2kHz, dual inductor based.
• High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160 Hz & 300Hz, inductor based.

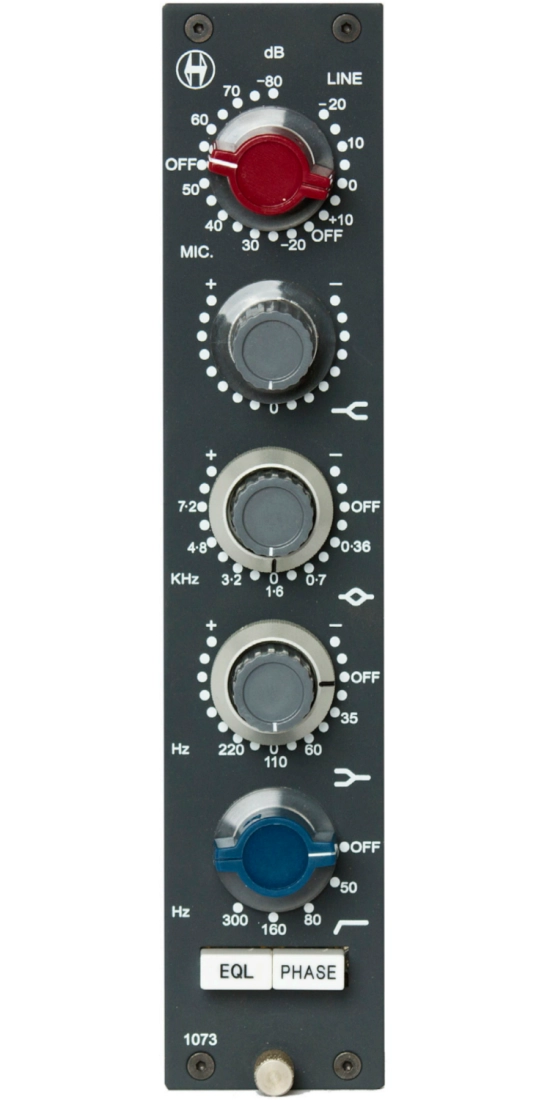

Controls
Input Gain Switch - 5dB steps from 20 to 80 in MIC mode. -10 to 20dB in LINE mode
High Shelf - Fixed at 12Khz
Mid Peak Band - 7.2, 4.8, 3.2, 1.6, 0.7, 0.36 Khz
Bass Shelf - 220, 110, 60 and 35 Hz
High Pass Filter - 300, 160, 80, 50 Hz
EQL - Switch Equalizer on/off
Phase - Flip Phase 180⁰

Specifications
Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.
Line input impedance: 10KOhms bridging, transformer balanced and floating.
Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
Maximum output: Greater than +26dBm into 600 Ohms, greater than +32dBu into 10KOhms.
THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB).
Maximum Gain: Slightly greater than 80dB.
Noise: Less than -100dBm.
Power consumption: 106 mA @24VDC.
