AKG

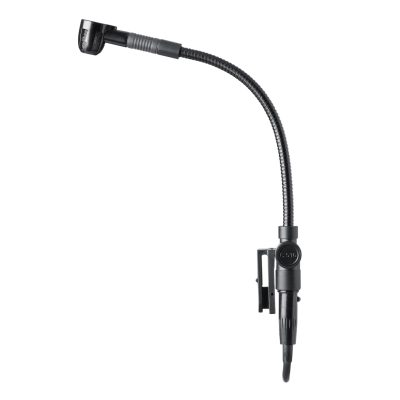

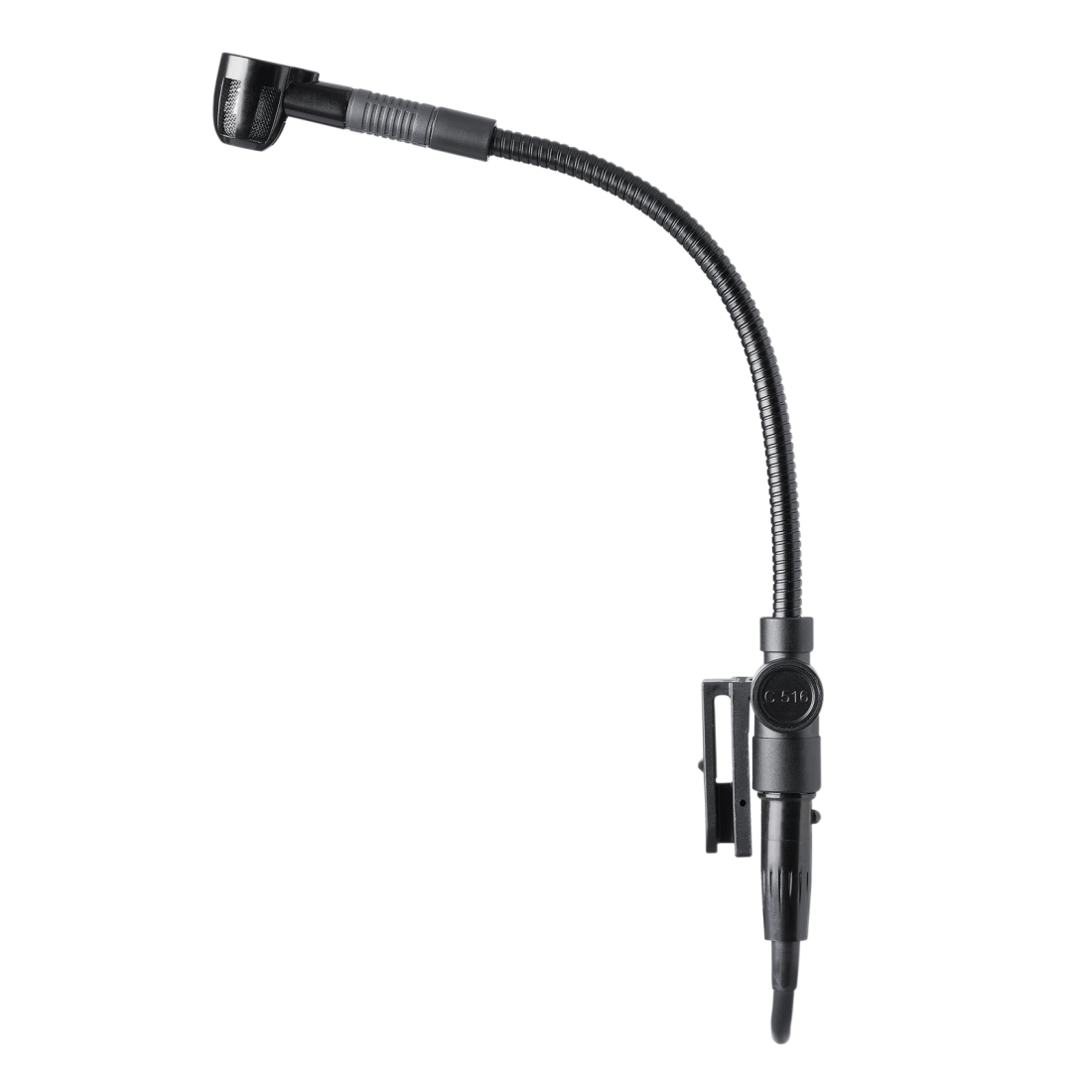

C516 ML Miniature Condenser Instrument Microphone

The C516 ML professional miniature instrumental microphone, part of the MicroMics family, is designed for use on accordions, pianos, guitar speakers and keyboard/organ cabinets. The C516 ML comes with a wide variety of mounting materials, such as screws and adhesive pads for easy installation on the instrument or amp, and an A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.
Features
• Cardioid polar pattern for problem-free use with high ambient noise rejection
• Flexible shock mount provides efficient suppression of mechanical and body noise
• Rugged, highly stable gooseneck ensures precise placement of the microphone
• Detachable microphone cable - easy to install and service
Included in the Box:
1 x C516 Microphone
1 x W44 Windscreen
1 x Microphone Bag
1 x Mini XLR to Mini XLR Cable (1.5 m/5 ft.)
1 x A400 Adaptor Plate
1 x Adhesive Compound
1 x Double-Sided Adhesive Rubber Plate
1 x H516 Mount Plate
3 x Self-Tapping Screws (2.9 x 13mm)
3 x Countersunk Bolts (3 x 30mm)
General Specifications
Type: Pre-polarized condenser microphone
Polar Pattern: Cardioid
Audio frequency bandwidth: 60Hz - 20kHz
Equivalent noise level: 31 dB-A
Sensitivity: 5 mV/Pa
Signal to Noise: 63 dB-A
Electrical impedance: 200 Ohms
Recommended load impedance: 2000 Ohms
Max. SPL for 1%/3% THD: 130/132 dB SPL
Powering Interface
Voltage: 2 to 12 V
Current: 2 mA
Dimensions (W x H): 47 x 235mm
Net Weight: 46 g
Cable length: 1.5 m (5 ft.)
Features
• Cardioid polar pattern for problem-free use with high ambient noise rejection
• Flexible shock mount provides efficient suppression of mechanical and body noise
• Rugged, highly stable gooseneck ensures precise placement of the microphone
• Detachable microphone cable - easy to install and service
Included in the Box:
1 x C516 Microphone
1 x W44 Windscreen
1 x Microphone Bag
1 x Mini XLR to Mini XLR Cable (1.5 m/5 ft.)
1 x A400 Adaptor Plate
1 x Adhesive Compound
1 x Double-Sided Adhesive Rubber Plate
1 x H516 Mount Plate
3 x Self-Tapping Screws (2.9 x 13mm)
3 x Countersunk Bolts (3 x 30mm)
General Specifications
Type: Pre-polarized condenser microphone
Polar Pattern: Cardioid
Audio frequency bandwidth: 60Hz - 20kHz
Equivalent noise level: 31 dB-A
Sensitivity: 5 mV/Pa
Signal to Noise: 63 dB-A
Electrical impedance: 200 Ohms
Recommended load impedance: 2000 Ohms
Max. SPL for 1%/3% THD: 130/132 dB SPL
Powering Interface
Voltage: 2 to 12 V
Current: 2 mA
Dimensions (W x H): 47 x 235mm
Net Weight: 46 g
Cable length: 1.5 m (5 ft.)
