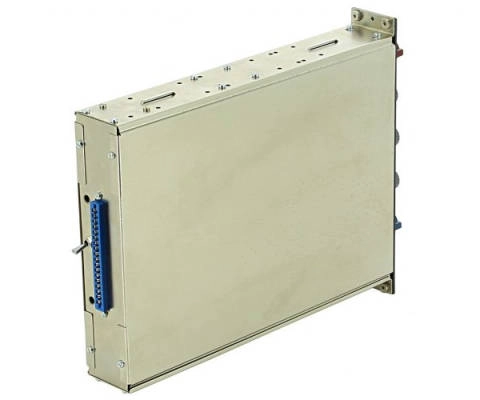

Heritage Audio 1084 80 Series Mic Preamp/EQ Module

Add to Wish List
SKU: # 721425
Model: #

HA1084

Your Price: $4,459.00 CDN

Online

In-Store

Based on the famous 1073, the Heritage Audio 1084 Microphone Preamplifier and EQ Module for 80 series rack enclosures adds additionally flexibility while preserving the original's legendary tone. The main differences are that this module includes three selectable high shelf frequencies instead of the fixed 12 kHz high shelf of the original 1073. It also features two selectable Qs in the mid band, while the hi Q is the same as in the 1073. Additionally, a five-frequency selectable passive LC low pass filter further expands the utility of the module to a wider range of recording applications.

The low pass filter is useful for sweetening overhead tracks by helping reduce the harsh or brittle quality of hi hats and cymbals. It can also help remove unwanted hiss and noise from bass-heavy tracks where a flat frequency response is required. By combining the high and low pass filter, special effects can be achieved such as telephone, radio, and TV sounds that have an analog warmth which is not possible just by using plugins.

The Lo Q option in the mid band makes heavy boosting sound natural and reduces the processing requirements for a particular sound.

Features
• 80dB Class A Microphone preamplifier, HI-LO selectable minimum input impedance, balanced and floating. High gain positions show a higher impedance, ideal for old ribbon mics.
• 10dB Class A Line Amplifier, Bridging input impedance, balanced and floating.
• Class A, single ended, 2N3055 driven high headroom output stage.
• High Frequency: +/-16dB shelving at 12 kHz, Baxandall type.
• Low Frequency: +/-16dB with selectable frequency shelving of 35Hz, 60Hz, 110Hz & 220Hz, Baxandall type.
• Mid Frequency: +/-18dB peaking, fixed 'Q', selectable center frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz and 7.2kHz, dual inductor based.
• High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160 Hz & 300Hz, inductor based.

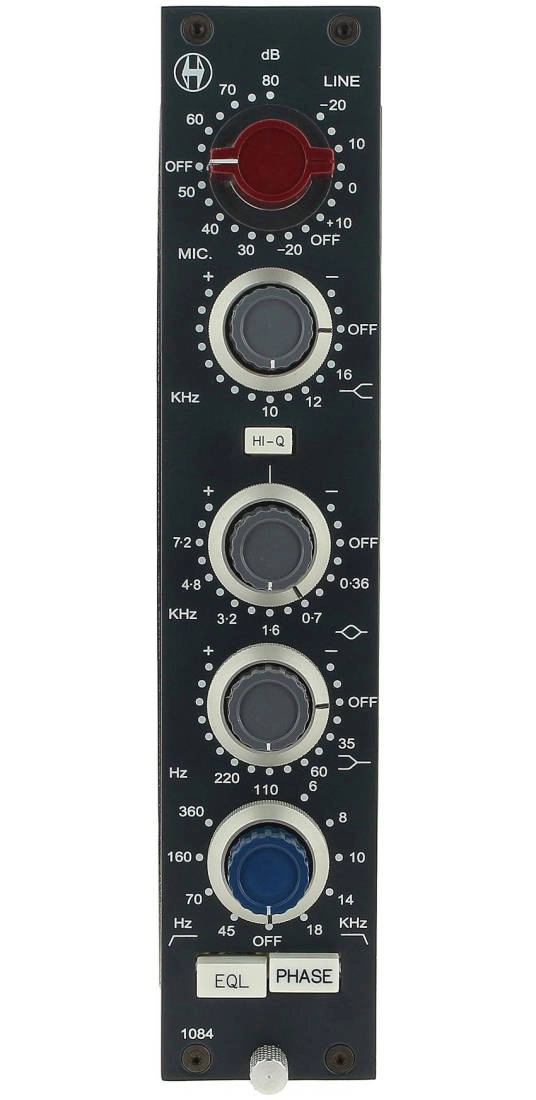

Controls
Input Gain Switch - 5dB steps from 20 to 80 in MIC mode. -10 to 20dB in LINE mode
High Shelf - Fixed at 12Khz
Hi Q - Switches the Q of the Mid Band
Mid Peak Band - 7.2, 4.8, 3.2, 1.6, 0.7, 0.36 Khz
Bass Shelf - 220, 110, 60 and 35 Hz
High Pass Filter - 300, 160, 80, 50 Hz
Lo Pass Filter - 6, 8, 10, 14, 18 KHz
EQL - Switch Equalizer on/off
Phase - Flip Phase 180⁰

Specifications
Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.
Line input impedance: 10KOhms bridging, transformer balanced and floating.
Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
Maximum output: Greater than +26dBm into 600 Ohms, greater than +32dBu into 10KOhms.
THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB).
Maximum Gain: Slightly greater than 80dB.
Noise: Less than -100dBu.
Power consumption: < 110 mA @24VDC.
