Heritage Audio

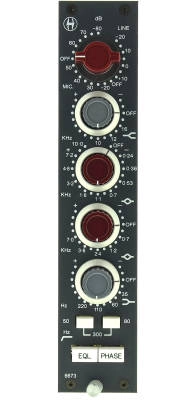

6673 80 Series Mic Preamp/EQ Module
Additional Photos:
The unit supports selectable HI-LO minimum balanced and floating input impedances that accommodate a range of microphone types including vintage ribbons. It includes a +/-16 dB selectable low frequency Baxandall shelving EQ at 35 Hz, 60 Hz, 110 Hz, and 220 Hz. For mids, the unit includes the 1073's +/-18 dB peaking fixed 'Q' equalizer with center frequencies at 240 Hz, 360 Hz, 530 Hz, 700 Hz, 1100 Hz, 1600 Hz, 3200 Hz, 4800 Hz, 7200 Hz, and 10,000 Hz. It also features the 1066's constant Q mid frequency EQ with +/-18 dB at 700 Hz, 1200 Hz, 2400 Hz, 3600 Hz, and 7000 Hz. An 18 dB inductor based high pass filter switch allows you to cut below 50 Hz, 80 Hz, or 300 Hz depending on the application. An EQ button allows for the equalizer to be turned on or off and a phase button allows you to flip the signal 180⁰.

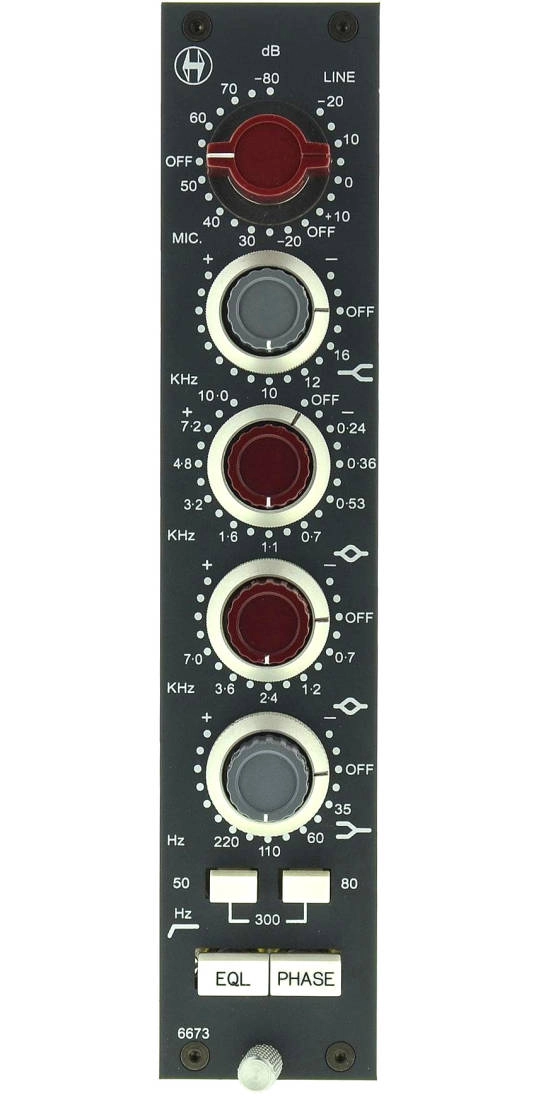

Controls
Input Gain Switch - 5dB steps from 20 to 80 in MIC mode. -10 to 20dB in LINE mode
High Shelf - 10, 12, and 16 Khz
1073 Expandable Mid Peak Band - 7.2, 4.8, 3.2, 1.6, 0.7, .36 KHz
1066 Mid Peak Band - 7.0, 3.6, 2.4, 1.2, 0.7 Khz
Bass Shelf - 220, 110, 60 and 35 Hz
High Pass Filter - 300, 160, 80, 50 Hz
EQL - Switch Equalizer on/off
Phase - Flip Phase 180⁰
Specifications
Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.
Line input impedance: 10KOhms bridging, transformer balanced and floating.
Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
Maximum output: Greater than +26dBm into 600 Ohms, greater than +32dBu into 10KOhms.
THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB).
Maximum Gain: Slightly greater than 80dB.
Noise: Less than -100dBu.
Power consumption: < 110 mA @24VDC.
