Heritage Audio
2264E 80 Series Compressor Limiter Module
Additional Photos:
The 2264E is fully Class A, including the same output stage found in the HA1073, which reacts in a much nicer way to compression than class A/B amplifiers. It is completely handmade and wired in the same fashion as the rest of the Heritage Audio 80 Series modules.

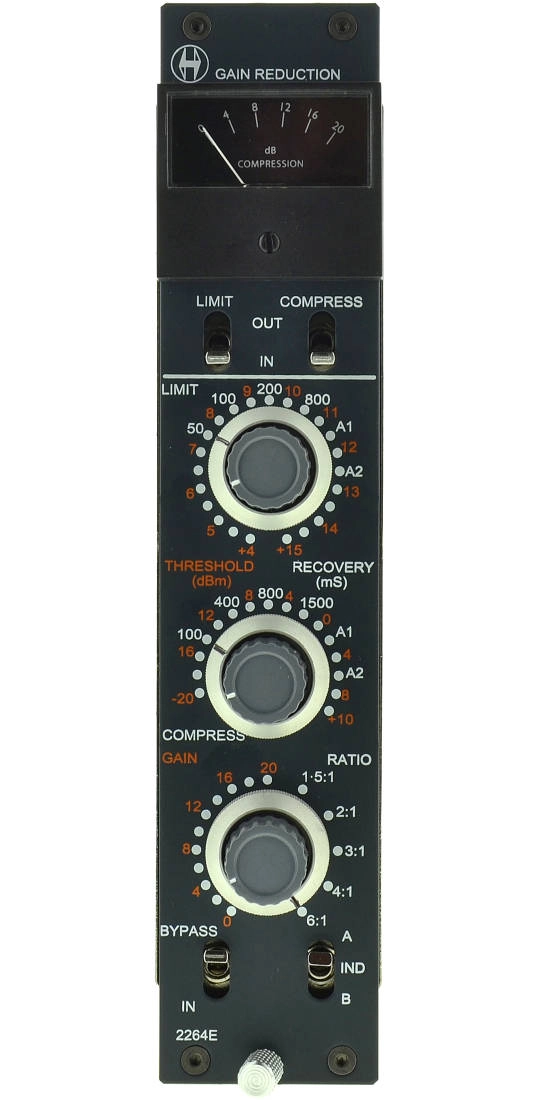

Readout/Controls
Gain Reduction - Analogue meter shows compression up to 20 dB
Limit - Switch Limit function On/Off
Compress - Enable compression and gain makeup
Limit Level - Sets the level at what limit begins, from +15dBm down to +4dBm in 0.5dB steps)
Limit Recovery - 6 different time options: 50ms, 100ms, 200ms, 800ms, Auto1 (100ms on peaks, 2secs on program material) and Auto2 (50ms on peaks, 5secs on program)
Threshold - Set minimum compression, from +10 to -20 dBu in 2 dB steps
Compressor Recovery - 6 different time options, 100ms, 400ms, 800ms, 1500ms, Auto1 (100ms on peaks, 2secs on program material) and Auto2 (50ms on peaks, 5secs on program)
Gain Makeup - 0 to 20 dB in steps of 2
Compress Ratio - 5 compression ratios, 1.5:1, 2:1, 3:1, 4:1 and 6:1
Bypass - Switch module in/out of signal path
IND - Allows the module to be linked to Buss A, Buss B, or independent
Specifications
Line input impedance: 10KOhms bridging, transformer balanced and floating
Output impedance: Less than 75 Ohms, transformer balanced and floating, 600 Ohms terminated
Maximum output: Greater than +26dBu, 600 Ohms terminated
THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz, at no gain reduction
Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB)
Maximum Gain: 20dB
Maximum Power consumption: Less than 120 mA @+24VDC
