Heritage Audio

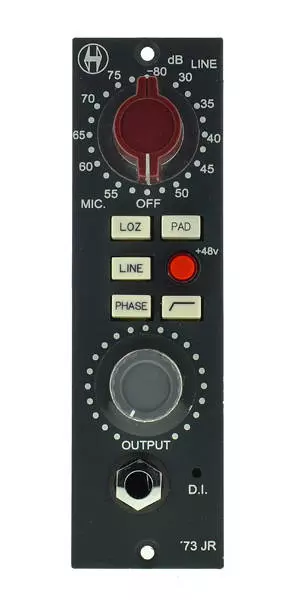

73JR 500 Series Mic Preamp Module
Additional Photos:
Employing only discrete circuitry and conventional components, the 73JR is a faithful 3 stage all class A 1073 preamp. Styroflex and tantalum capacitors have been used throughout. No corners were cut.
A useful all discrete class A hi pass filter has been added, essential for recording everything with the exception of probably kick drum and and bass.
The Line mode allows for reamping of prerecorded tracks and is perfect for adding some class A color to lifeless recordings.
The smart switched DI (automatically switches from MIC to DI mode when inserting a MONO 1/4" jack) is an all discrete class A JFET circuit ahead of the MIC transformer, so all the juice is there. Since its introduction in 2013, it has become a classic DI for bass.
Finally, special care has been taken with power handling, implementing internal +24v slow turn on regulation (about 20 seconds to reach full voltage).This makes your 500 series enclosure's power supply healthier and makes the 73JR independent of the rest of the slots.
Controls
Input Gain Switch - 5 dB steps from 30 to 80
Mic Input Impedance - 1200 ohm, 300 ohm when pressed
Mic Pad Push Button - 20 dB pad, ahead of input transformer
Line Push Button - Switches from mic/DI to Line
Phantom Power Switch - Phantom power On/Off
Phase Push Button - Flips the phase 180 degrees
High Pass Filter - -3 dB at 82 Hz, discrete class-A
Output Attenuator - Attenuates from 0 to -inf
D.I. Input - High impedance JFET
Specifications
Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.
Line input impedance: 10K Ohms bridging, transformer balanced and floating.
DI input impedance: Greater than 2 Megohms, unbalanced.
Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 ohms (factory terminated).
Maximum output: Greater than +26dBu into 600 ohms.
THD: Less than 0.025% at 1 Khz, less than 0.05% at 100Hz.
Frequency response: 20Hz (+0.3dB) to 20Khz (-0.2dB)
Maximum gain: Slightly greater than 80dB
Noise: Less than -100dBu.
Power consumption: 88 mA per rail @+-16VDC.
