Heritage Audio

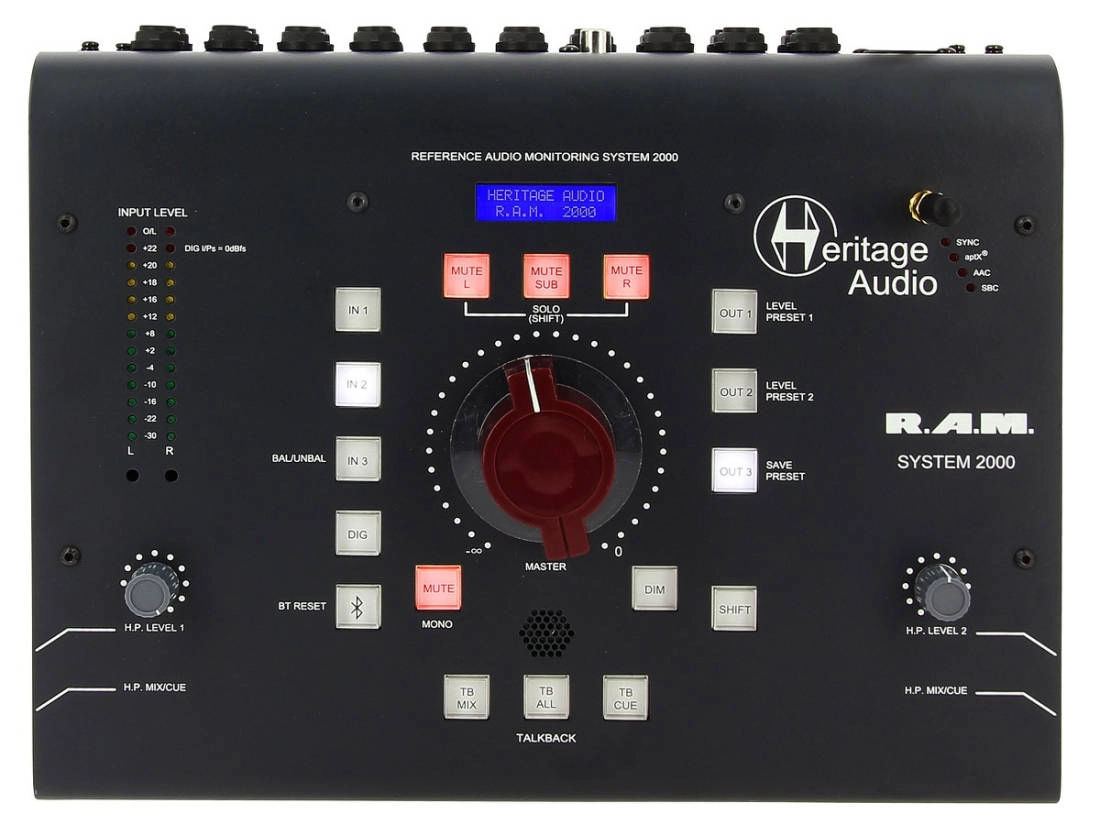

RAM System 2000 Desktop Monitoring System with Bluetooth
Additional Photos:
Product Videos :
Heritage Audio has combined their state-of-the-art analog circuitry for a superior transparency and ultra-low noise distortion with modern features like Bluetooth connection, to deliver audiophile-quality sound and feature sets tailored for project studios, commercial recording facilities, and post-production houses who deliver in 5.1 surround.
The three units are fitted with 64-step, gold-plated relay ladder attenuation for master level control - a feature usually found only on high-end large-format consoles. Our Bluetooth connectivity provides convenient wireless input for mobile devices. And with its classic RAF-gray cosmetics and prominent red Marconi knob, your RAM system will add a touch of class to your control room.
The RAM System 2000 features generous I/O, with three pairs of +4dBu balanced analog inputs and three stereo outputs, an independent pre-fader MIX OUT, independent stereo CUE I/O, a S/PDIF coax input, and pro-audio-quality Bluetooth input for easy mobile device integration. The 2000's two audiophile-grade diamond-buffer-based headphone amplifiers are capable of driving any headphones without noise or coloration. For easy recall of common settings, two user-assignable preset levels are provided. For communicating with talent, there's a built-in Talkback with console-style management. Lastly, Heritage Audio equipped the RAM System 2000 with an independent Subwoofer output that lets you effortlessly share your sub between different speaker pairs.
No More Mini Jacks
The RAM System 2000 Bluetooth device automatically recognizes your device's best Codec option and uses it for streaming. Apple's iTunes Store and You Tube use AAC as native so streaming from an iPhone or iPad will result in a lossless transmission, much better than an analog wired connection! The vast majority of Android devices have already adopted the amazing sounding Qualcomm® aptX™ Audio Codec which is nearly lossless and the standard that wireless high quality headsets and sound bars are adopting.
Features
• Designed for the studio that needs enhanced, mastering-grade stereo monitoring capabilities
• 64-step relay ladder attenuation for master level control in 1dB steps
• 3 pairs of +4dBu balanced analog inputs (input 3 is configurable for -10dBu unbalanced signals)
• Pro-audio-quality Bluetooth input for easy mobile device integration
• 3 stereo outputs
• DIM function; MUTE/SOLO for individual speakers
• 2 user-assignable preset levels for easy recall of common settings
• Built-in Talkback with console-style management, including Talkback to Cue, Talkback to Mix, and Talkback to All
• 2 high-level, ultra-high-current, audiophile-grade diamond-buffer-based headphone amplifiers, capable of driving any hi- or lo-Z headphones without coloration or noise
• State-of-the-art analog circuitry for superior transparency and ultra-low noise and distortion
• All gold-plated relay-based switching for every function, including inputs and outputs
What's Included
• RAM System 2000 main unit
• Power Supply labelled HA-PSU03
• Bluetooth antenna
• IEC Cable
• User Manual
Specifications
Maximum analog input level: Over +27.5 dBu
Digital input: Up to 24 bit/96 Khz. 0dBfs = +22 dBu at the output, all fader up.
Bluetooth input: AAC, aptX or SBC, 0dBfs=+22dBu at the output, all fader up.
DIM attenuation: -20db.
Maximum output level: Over +27 dBu into 600 ohms.
Noise: Better than -99 dBu.
THD: Better than .001% at 1Khz, balanced input to balanced output, all fader up.
