Heritage Audio

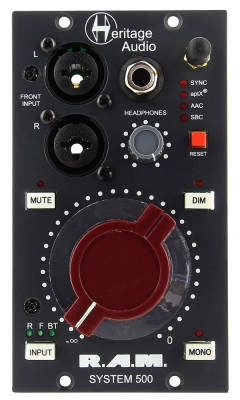

RAM System 500 Series Monitoring Module
Additional Photos:
Product Videos :
After two years of intensive research and development, the first element of the RAM systems came to life. The RAM System 500 is a fully unique product with no precedent in the industry, providing a mastering grade monitoring solution for the 500 series.
As a 500 series plug-in unit with double module width, it serves as a compact, zero-compromise monitoring station for home, project or mobile studios. It features one stereo speaker output and powerful headphone amp, two balanced stereo inputs and a Bluetooth input for convenient wireless connection to mobile devices. The RAM System 500 uses state-of-the-art analog circuitry for maximum transparency and minimal noise floor and distortion. The entire signal path, including the 64-stage relay attenuation system, is designed with gold-plated switching relays, archiving stereo accuracy and sound quality only found in systems costing 10 times as much.
Features
• Mastering-grade stereo monitoring for project/home studios
• Double-wide 500 Series module (requires compatible 500 Series chassis)
• 3 stereo inputs, including rear-chassis connections
• Front-panel stereo Neutrik Combo input
• Bluetooth wireless input (compatible with AAC, APTX, and SBC files)
• 1 stereo speaker output
• 1 high-current headphone output
• 20dB DIM, MUTE, and MONO functions
• 64-step relay ladder attenuation for master level control in 1dB steps
• High-level, ultra-high-current, audiophile-grade headphone amplifier will drive any hi- or lo-Z headphones without coloration or noise
• State-of-the-art analog circuitry for superior transparency and ultra-low noise and distortion
• All gold-plated relay-based switching for every function, including inputs and outputs
Specifications
Maximum analog input level: Over +27.5 dBu
Bluetooth input: AAC, aptX or SBC, 0dBfs = +22dBu at the output, all fader up
DIM attenuation: -20db
Maximum output level: Over +27 dBu into 600 ohms
Noise: Better than -99 dBu
THD: Better than .001% at 1Khz, balanced input to balanced output, all fader up
