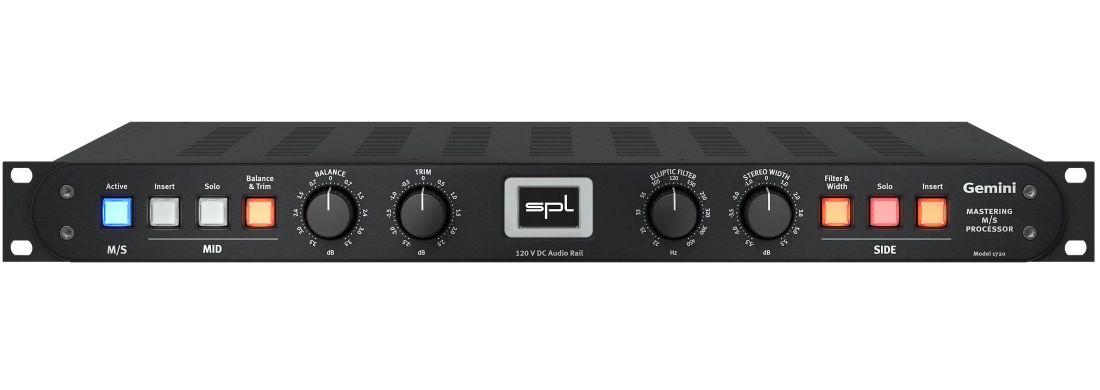

SPL Gemini Mastering M/S Processor - Black
Additional Photos:
Product Videos :
Gemini also provides the possibility to work on the stereo panorama. With the Balance control you can position the mid signal within the stereo panorama. With the Trim control, you can adjust the level of the mid signal in relation to the side signal. In connection with the Stereo Width control, the mixing ratio of both channels can be adjusted.
An Elliptical Filter, which can cut low frequency ratios of the side band is also provided.
Specifications
Inputs
Max. Input Level: +32.5 dBu
Input Impedance: 20 kOhms (bal.)
Outputs
Max. Output Level: +32.5 dBu
Output Impedance: 100 Ohms (bal.)
Noise (A-weighted, Insert, Balance & Trim, Filter & Width = active): -98,2 dBu
THD & N (at +20dBu): -110 dB
Common-Mode-Rejection (at 0 dBu): -79 dB
Transmission Bandwidth: 10 Hz-150 kHz
Power Consumption
0.11 Amp, 230V/50Hz, 24 Watt, 32 VA
0.22 Amp, 115V/60Hz, 24 Watt, 32 VA
Fuses
230V/50Hz: 0.5 Amp
115V/60Hz: 1 Amp
Dimensions
Standard EIA 19 Inch Housing/1U: 482 x 44 x 300 mm / ca. 19" x 1.73" x 11.8" (front panel excl.)
Weight: 5kg / 11 lb
