Trident Audio Developments 80B 500 Series Equalizer Module

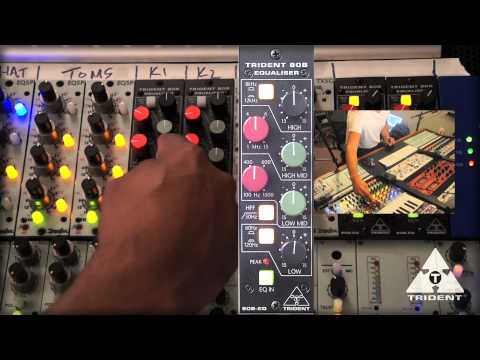

Product Videos :
The Series 80B 500 Series EQ incorporates a classic four band equaliser which is identicalto that employed in the Trident Series 80 console. It consists of frequency switchable high and low pass shelving sections, coupled with two swept low and high mid range bands and a switchable 50Hz, 12dB per octave filter. Both swept midranges have been carefully chosen for maximum effect on music programme and a good degree of overlap is provided.
Vintage Hardware - Re-Created
In the late '70s Trident Audio developed a new series of recording consoles to update Trident's sound for a new generation of musical talent. The result was the Trident Series 80, the sound of which quickly became a favorite among the top artists. The Series 80B doesn't just capture the sound of these legendary consoles, it is the exact same painstakingly re-created circuitry.
Tune Your Sound to Perfection

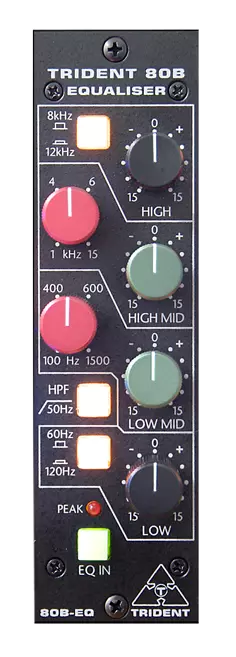

The Series 80B-500EQ is one of Trident's most sought after 4-band equalizers. Loaded with frequency-switchable high and low shelving sections, as well as sweepable low-mid and high-mid bands and a switchable 50Hz, 12dB per octave filter, the Series 80B gives you an exceptional degree of control over your sound. The Series 80B's highly resonant Q peaks are particularly favored by many top engineers for tuning instrument tones.
Features
• Four Band Eq
• Sweepable Mid Bands
• Lo Freq can be switched between 60 and 120Hz
• Hi Freq switchable between 8 and 12KHz
• Lo Mid sweepable from 100 to 1.5KHz
• Hi Mid sweepable from 1 to 15KHz
• 50Hz Hi Pass Switch
• Peak Overload LED
• Bypass Switch
