HK Audio

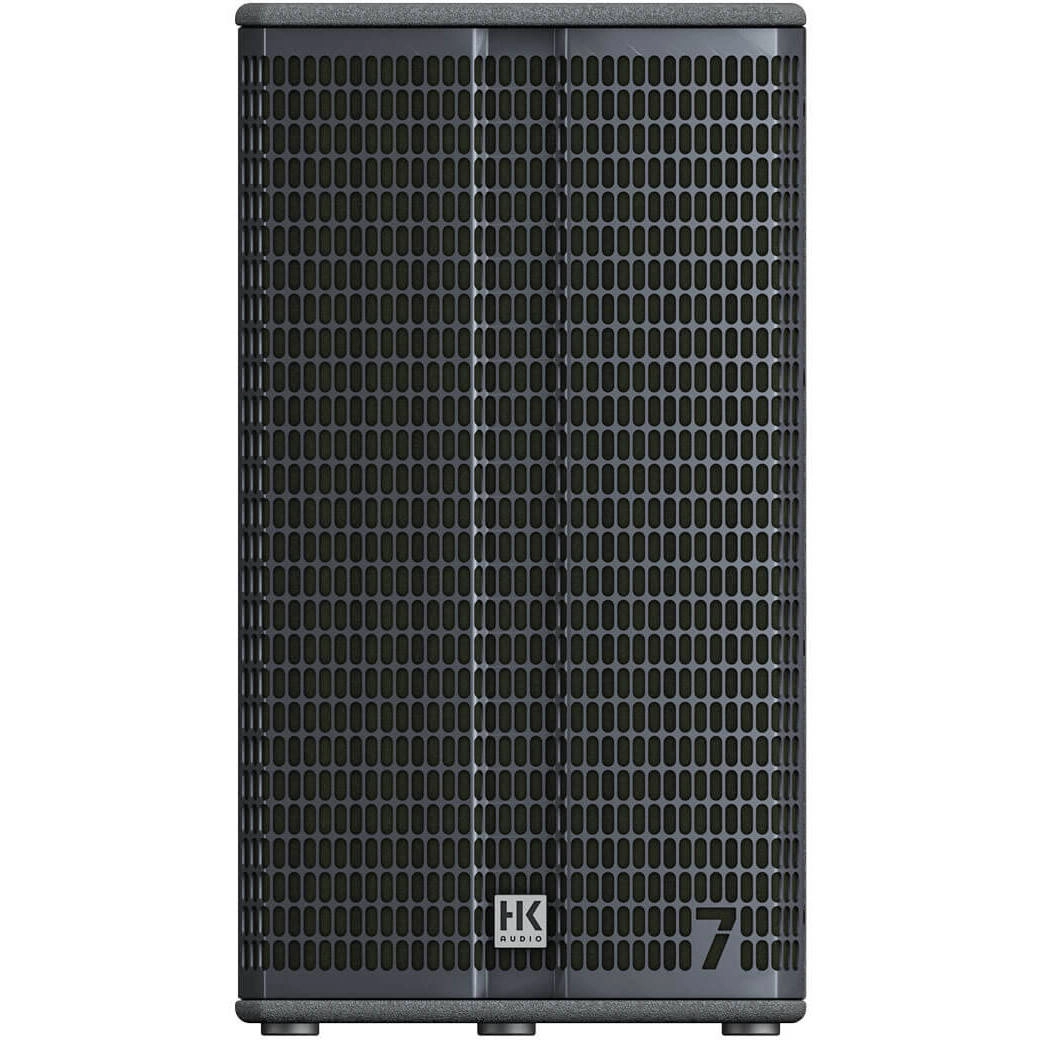

Linear 7 112 FA Active PA Speaker
Additional Photos:
The latest in audio technology
Although the LINEAR 7 lines visuals and hardware appointments lean heavily on the sleek look and rugged features of the LINEAR 5 series, these enclosures come with a complement of elegantly refined details. HK Audio engineers reinvented the cutting-edge technology inside LINEAR 7 and revamped the cabinets acoustics from the bottom up. Latest-generation high-performance loudspeakers and drivers, custom-designed horns, muscular Pascal Class-D amplifi ers, FIR filtering, a state-of-the-art DSP platform with awesome computing power and high-definition converters with a feature set as rich as this, the LINEAR 7 family is the precision audio tool of choice for demanding applications.
Cardioid pattern for real-world applications
While midrange and high frequencies are naturally more directional, low frequencies tend to radiate in all directions. Excessive bass levels can be quite the problem on and behind the stage. The more serious issue, though, is that promoters are increasingly making demands to limit the sound distribution range. And there is no alternative to cardioid technology when it comes to meeting specifications for low-range frequencies. With its hardware appointments and fi lter sets, the 18″ LINEAR 7 subwoofer provides a fast, easy way to configure effective cardioid setups.
Details

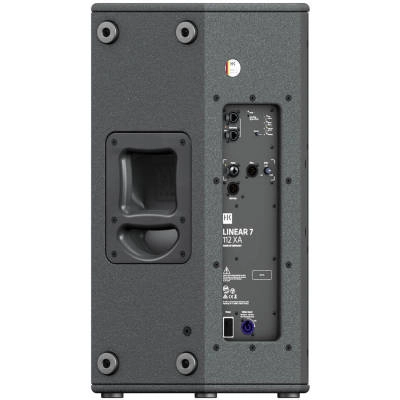

• All models in the LINEAR 7 family feature analog balanced inputs and outputs as well as professional Ethercon ports. All devices in the system can be daisy-chained if required that is, connected in series.
• Presets are available to tune fullrange and multifunctional models to serve as standalone speakers, monitors or to be combined with subwoofers. Confi guring cardioid bass setups is simple with the subwoofersʼ Cardio 1:1 and Cardio 2:1 settings.
• DSP Out is an XLR port that serves to integrate an added active speaker lacking network connectivity into a networked setup. This speakers volume, filtering, limiting and delay may then be controlled independently. For example, this option brings LINEAR 7 mid/high units and LINEAR SUBs together in the same network. The same goes for LINEAR 5 LTS models and the L7 118 Sub A subwoofer.
• A Powercon mains socket connects the speaker to the power supply. The L7 118 Sub A subwoofer provides a second Powercon socket, an elegant power routing solution for larger systems.
• Milan audio streaming: HK Audio are committing to the Milan Initiative and working on the implemention for future firmware updates providing the new and upcoming digital audio network standard.
• Peak power: 2,000 W
• Final stage: Class D, Bi-Amped
• Woofer: 12" (2.5" voice coil)
• Tweeter: 1" (1.75" voice coil)
• Horn: 70 x 50 CD, rotatable
• Crossover frequency: Apx 1.8 kHz, FIR
• Analog inputs: XLR / 6.3 mm jack
• Analog Thru: XLR
• DSP out: XLR
• Networking: 2x Ethercon
• DAN protocol (audio streaming): Milan (certification in preparation)
• DSP functions: fully parametric 10-band EQ with variable filter characteristics, high pass filter, low pass filter, polarity, level, delay, limiter
• Operating systems for remote software: Windows, Mac OS (App for iPad follows)
• Sampling rate: 96 kHz
• Latency: 2.6 ms
• Mains connection: Powercon
• Power adapter: Automatic switching power supply (100 to 240 Volt)
• Flypoints: 5 x M8 for AP-8
• Flyframe: TB + TA-28N45N
• Clustering angle: 35
• Front grille: 2 mm powder-coated metal grid, black acoustic foam
• Cabinet: 15 mm birch multiplex / hybrid MDF housing surface
• Finish: Environmentally friendly Warnex acrylic paint
• Handles: 2x MultiGrip

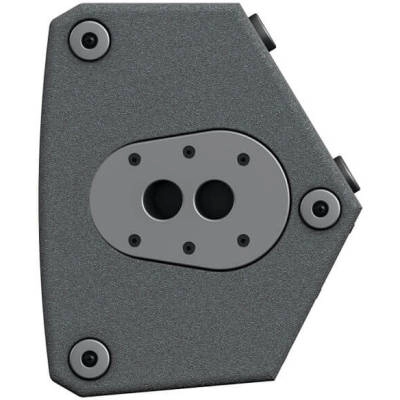

• Stnd Adapters: Duo Tilt (3 deg / 7 deg )
• Dimensions: 37 x 67 x 36.5 cm
• Weight: apx. 24 kg
