RANE Seventy 2-Channel Precision Battle Mixer for Serato DJ

Departments > Pro Audio & Recording > DJ > DJ - Mixers - Tabletop > RANE > Seventy 2-Channel Precision Battle Mixer for Serato DJ
Add to Wish List
SKU: # 726310
Model: #

SEVENTY

Your Price: $1,999.00 CDN

Online

In-Store

2-Channel Solid Steel, Precision Performance Battle Mixer for Serato DJ


Introducing the SEVENTY, the latest addition to RANE's solid steel, Serato DJ battle-ready mixer family. Built from the same intricate DNA that makes every RANE product a standout, the SEVENTY introduces unique new features and an intuitive workflow to push DJ performances to the next level. Packed into a solid, portable mixer, the SEVENTY has the toughness for week-in/weekout touring, satisfying even the most demanding DJs who insist on no-compromise durability, functionality and expressive creativity.

MAG FOUR Faders
In addition to an ultra-intuitive layout, the SEVENTY introduces three new ultra-light MAG FOUR faders. This new design is the lightest yet and delivers high-quality patented technology, along with an external crossfader tension-adjust.

FX, Loops & Instant Doubles
The SEVENTY's all new intuitive layout has been engineered to put the DJ's creative performance capability firmly in the driving seat. Six radio-style FX buttons give instant access to the internal post-fader Flex FX and Serato DJ's software FX. The dual dedicated loop sections and Instant Double buttons are laid out for immediate, easy access.

Performance Pads
Center stage on the SEVENTY are 16 Akai Professional dual layer MPC pads with independent mode controls per deck including Hot Cue, Pitch 'n Time, Saved Loops, Sampler, Roll and Transport.

Mixer Mainstays
Everything you demand from a mixer is here, perfectly positioned with your performance in mind. A 3-band isolator EQ, plus dedicated high/low pass filters per channel; Serato playlist navigation and control; dual diecast aluminum FX paddles with 180-degree rotation; a radiant OLED display for accurate visual feedback of core mixer parameters. Combine all of this with an industry-leading signal-to-noise ratio of 114dB, the RANE SEVENTY raises the standard of DJ performance to new heights in its category.

Flexible Connectivity
With the SEVENTY, any performance scenario is covered. Two DJs can perform simultaneously and handover effortlessly via the unit's dual USB connections. Performance-driven connectivity, including switchable Phono/CD inputs per deck, an RCA Aux line input per deck and an RCA Session input/output for battle teams, provides complete hook-up flexibility. With balanced XLR master outputs, dual 3.5mm and 1/4-inch headphone outputs, and 1/4-inch jack booth outputs, whatever your next set needs, the SEVENTY provides. Rounding out the SEVENTY's arsenal of inputs are two switchable line/microphone combo inputs, outfitted with independent level and tone controls, plus echo level for both microphones.

Seamless Handoffs
Make complicated handoffs a thing of the past - with RANE's SEVENTY, two DJs can perform simultaneously and handover effortlessly via the unit's conveniently located dual USB connections. Are you seeking the authentic DJ experience while retaining all the modern functionality your performance demands? This is your answer! SEVENTY features assignable USB controller inputs for RANE TWELVE motorized control turntable alongside input controls on each deck to switch between dual USB inputs, phono, line and aux channel inputs.

Features
• Intuitive High-Performance Layout
• (3) MAG FOUR contactless faders
• External crossfader tension-adjustment control
• Solid steel construction & front guard handle protection
• (6) Dual post-fader internal FLEX FX engines
• Serato DJ FX controls
• Independent pad modes for each channel
• (32) MIDI-Assignable Pads
• Browse and track select controls
• Intuitive Instant Double buttons, toggle as Sync On-Off or Silent Cue mode
• Dedicated loop controls
• Dual diecast aluminum 180 degree rotatable FX paddles
• RANE TWELVE Connection Hub
• Dual microphone inputs
• Industry leading signal-to-noise ratio of 114dB
• Dual USB connections for DJ handoffs
• 16 Akai Professional MPC performance pads

Technical Specifications
Digital Audio
Converters: AKM High Definition Audio; 24-bit PCM, 48kHz
Digital Signal Processing: 32-bit, floating point, double precision
Dynamic Range (A-weighted, unity gain)
ADC: 114dB
DAC: 114dB
CD Input to Analog Output: 114dB
CD Input to USB Output: 114dB
USB Input to Analog Output: 114dB

INPUTS
Microphone 1/2 (Combo XLR/1/4 [6.35 mm] TRS, Mic/Line switchable)
Analog Gain: 30dB (Mic), 4.75dB (Line)
Maximum Input: 0.126Vrms (Mic), 2.3Vrms (Line)
Gain Trim: Off to +20dB (unity at center)

Aux Inputs 1/2 (RCA stereo pairs)
Maximum Input: 4Vrms
Dynamic Range (A-weighted): 114dB

CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
CD: Line
Maximum Input 4Vrms
Dynamic Range (A-weighted): 114dB
Phono: RIAA
RIAA Curve: +0.1/-0.2dB
Gain (@ 1kHz): 30dB
Maximum Input (@ 1kHz): 126mV

Session Input (RCA stereo pair)
Maximum Input: 4Vrms
Dynamic Range (A-weighted): 114dB

OUTPUTS
Main Outputs (XLR)
Frequency Response: 20Hz to 20kHz (+/- 0.2dB)
Maximum Output; 8Vrms
THD+N (@ 1kHz, 4Vrms): 0.002%

Booth Outputs (1/4"/6.35mm TRS)
Frequency Response: 20Hz to 20kHz (+/- 0.2dB)
Maximum Output: 8Vrms
THD+N (@ 1kHz, 4Vrms): 0.002%

Session Outputs (RCA stereo pair)
Frequency Response: 20Hz to 20kHz (+/- 0.2dB)
Maximum Output: 4Vrms
THD+N (@ 1kHz, 2Vrms): 0.002%

Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS)
Maximum Output Voltage: 4V (no load)
THD+N (@ 1 kHz, 2 Vrms): 0.003%
Output Power: 96mW (50 ohms)
Controls: On/Off muting

GENERAL
Display: 1.6" OLED (diagonal)
Pads: (16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
Faders: (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)

Connectors
(2) XLR outputs (Main)
(2) 1/4" (6.35mm) TRS outputs (Booth)
(4) RCA stereo input pairs (Deck 12)
(2) XLR / 1/4 (6.35mm) TRS inputs (Mic 12)
(1) RCA stereo input pair (Session)
(1) RCA stereo output pair (Session)
(1) 1/4" (6.35mm) TRS output (Headphones)
(1) 1/8" (3.5mm) TRS output (Headphones)
(1) 1/4" (6.35mm) TRS input (Footswitch)
(2) USB Type-A ports (Deck 12 USB Controllers)
(2) USB Type-B ports
(1) IEC power cable input

Power
Connection: IEC
Voltage: 100240V, 50/60Hz
Consumption: 30W

Dimensions (width x depth x height): 11.2" x 17.5" x 4.13" (285 x 445 x 105mm )
Weight: 12.3 lbs. (5.6kg)
There are currently no reviews for this product, be the first to write one!

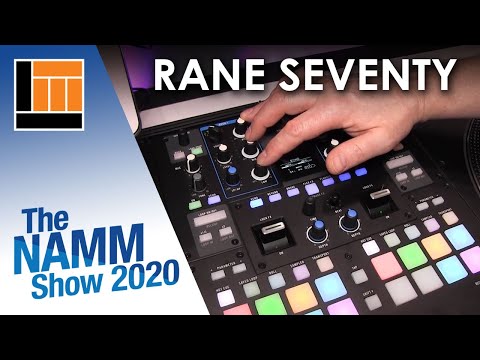

Introducting RANE SEVENTY - Your New Battle Companion
