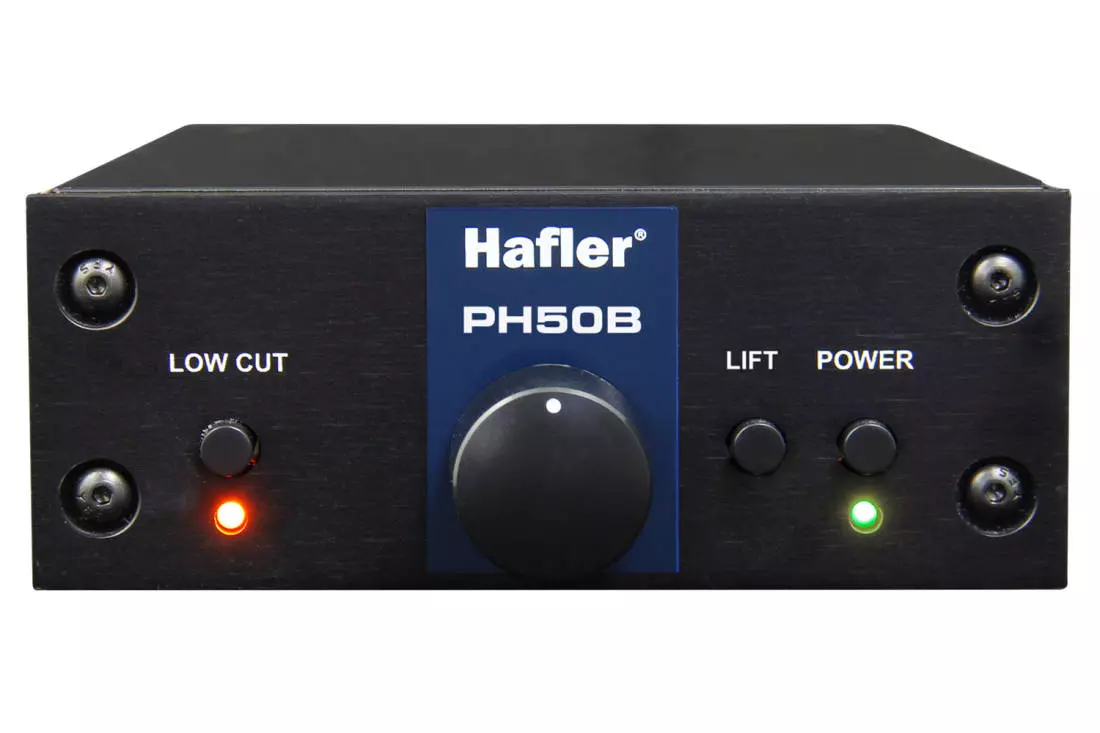

Hafler PH50B Moving Magnet Phono Stage

The Hafler PH50B is a high performance phono stage for moving magnet (MM) cartridges, with the ability to easily connect to HIFI playback systems or pro audio recording and playback equipment. It features a well-defined RIAA curve to preserve the source material and an exceptionally low noise profile for quiet distortion-free operation.

Features
Controls: Low pass cut off
Switches: Low pass ON, power
Low-cut filter: 20Hz to 500Hz
Filter Slope: 12dB / Octave

Specs
Audio circuit type: Active operational amplifier
Frequency response: RIAA curve
Total harmonic distortion (THD+N): 0.008%
Dynamic range: 95dB
Input impedance: 47K Ω
Maximum input: -21dBu
Gain - RCA: 34dB
Gain - XLR: 40dB
Clip Level - RCA: +10dBu
Clip Level - XLR: +16dBu
Output Impedance - RCA: 400 Ω
Output Impedance - XLR: 200 Ω
Equivalent Input Noise: -119dBu
Noise Floor: -84dBu
Intermodulation distortion: 0.04%
Size (W x D x H): 7" x 4-1/2" x 2" / 191 x 229 x 51mm
