Mutable Instruments

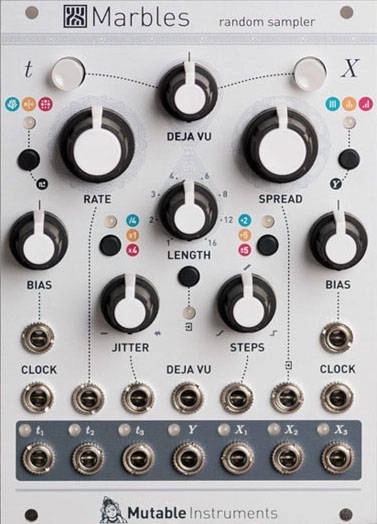

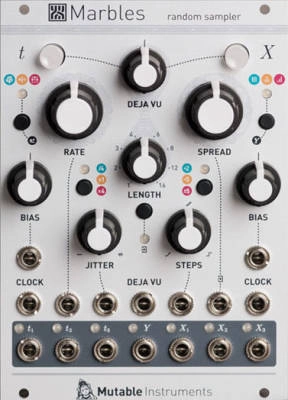

Marbles
This product is no longer available.
Controlled Chaos, Repeatable Randomness
Marbles is a source of random gates and voltages, which offers an extensive amount of (voltage) control on all the different flavors of randomness it produces.
The module gives the musician many different ways of imposing structure on the random events generated by the module: synchronization to external clocks, control of the repetition or novelty of the generated material, quantization of the voltages, or randomization of gates or voltages generated by traditional sequencers.
t: the random gate generator
Marbles either follows its own internal clock, or locks onto an adjustable multiplication/division of an external clock (or regular rhythmic pattern). This regular clock is perturbed by a process simulating an instrumentist playing along a click and trying to catch up on their errors - from perfect accuracy to complete chaos.
From this imperfect master clock, a 2-channel random rhythm is generated, using one of the following processes: random coin toss (similar to Branches), random ratcheting, or random drum pattern generation (similar to a randomly modulated Grids).
X: the random voltage generator
This generator produces 3 channels of random voltages, each of them clocked by the individual outputs of the t section, or by a common external clock signal.
Complete control on the distribution of the output voltages is provided: concentrated or spread-out, quantized or unquantized, smoothed or steppy, centered or biased towards a specific voltage. The same transformations can be performed on an external CV, for sample-and-hold or shift-register operation.
An auxiliary slowly fluctuating random voltage output (Y) is also available for self-patching fun!
Specifications
Analog random source
All inputs: 100k impedance, DC to 3.2kHz.
Maximum input clock rate: 1kHz for the t Section, 8kHz for the X section.
32kHz refresh rate.
14-bit DAC with accurate software calibration - error below 1mV.
12-bit CV capture.
Output levels: -5V to +5V for CVs (largest setting), 0V to +8V for gates.
Input CV range: -5V to +5V.
Front panel with Computer Modern labels, just like on your calculus textbook.
Marbles is a source of random gates and voltages, which offers an extensive amount of (voltage) control on all the different flavors of randomness it produces.
The module gives the musician many different ways of imposing structure on the random events generated by the module: synchronization to external clocks, control of the repetition or novelty of the generated material, quantization of the voltages, or randomization of gates or voltages generated by traditional sequencers.
t: the random gate generator
Marbles either follows its own internal clock, or locks onto an adjustable multiplication/division of an external clock (or regular rhythmic pattern). This regular clock is perturbed by a process simulating an instrumentist playing along a click and trying to catch up on their errors - from perfect accuracy to complete chaos.
From this imperfect master clock, a 2-channel random rhythm is generated, using one of the following processes: random coin toss (similar to Branches), random ratcheting, or random drum pattern generation (similar to a randomly modulated Grids).
X: the random voltage generator
This generator produces 3 channels of random voltages, each of them clocked by the individual outputs of the t section, or by a common external clock signal.
Complete control on the distribution of the output voltages is provided: concentrated or spread-out, quantized or unquantized, smoothed or steppy, centered or biased towards a specific voltage. The same transformations can be performed on an external CV, for sample-and-hold or shift-register operation.
An auxiliary slowly fluctuating random voltage output (Y) is also available for self-patching fun!
Specifications
Analog random source
All inputs: 100k impedance, DC to 3.2kHz.
Maximum input clock rate: 1kHz for the t Section, 8kHz for the X section.
32kHz refresh rate.
14-bit DAC with accurate software calibration - error below 1mV.
12-bit CV capture.
Output levels: -5V to +5V for CVs (largest setting), 0V to +8V for gates.
Input CV range: -5V to +5V.
Front panel with Computer Modern labels, just like on your calculus textbook.
