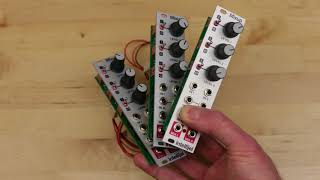

Intellijel Mixup Chainable Mono/Stereo Audio Utility Mixer

Stereo audio is becoming more popular in the rack as more effects make it over to eurorack. Mixup makes is easy to combine your mono and stereo sources into a single stereo mix. You have mute and level control over the first three channels and, using a rear connector, you can chain multiple Mixups together into a hidden 5th stereo channel without using up channels on the front panel.

Mighty Mini Mixer
Mixup is a versatile, expandable audio mixer for eurorack format. It has eight inputs (6 on the front panel) and two outputs. Inputs 1 and 2 are single-channel mono inputs, each with its own mute switch and level control; Input 3 is a dual-channel stereo input with a shared mute and level control; and input 4 is an auxiliary unity-gain, non-mutable stereo input.

Features
• Mixes up to eight channels to a stereo output.
• Mute switches and level knobs for channels 1 to 3.
• Chain-able with other Mixup modules.

Specifications
Width: 6HP
Depth: 29mm
Power:
• 15mA @ 12V
• 16mA @ -12V
