Yorkville Sound Triamp Freestanding Enclosure
Additional Photos:
Great Additions
Description

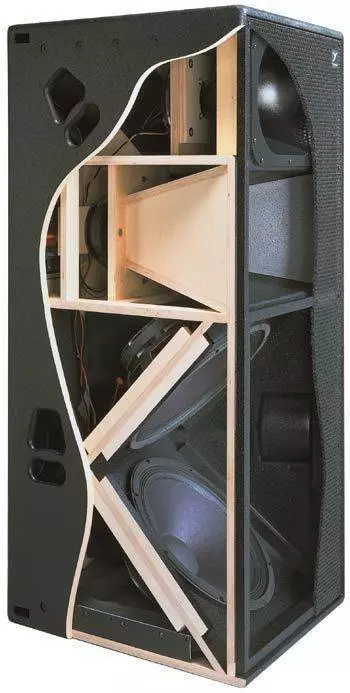

Two low cone mass B&C 15" woofers are mounted in a quasi-horn loaded configuration resulting in astonishing lowband efficiency. The small footprint Baltic birch enclosure uses high rigidity bracing and incorporates an extremely flexible top and bottom ATM Fly-Ware flytrack and internal bumper system for accurate yet cost effective 'flying'.
A specific analog stereo four-way processor (TX8P) has been engineered and is available for the TX8 to ensure maximum system performance.
Features:
• High efficiency, compact trapezoidal enclosure designs
• Advanced horn technology for controlled application of leading edge drivers from world-renowned manufacturers
• Ultra-low distortion at extreme sound pressure levels
• Rock solid 13-ply Baltic birch enclosures with rigid bracing
• Accurate, flexible ATM Fly-Ware AMTS series internal bumper and flytrack system
• Excellent 'flown' performance in accurately formatted arrays
• Outstanding long distance projection
• Consistent box to box production using advanced quality assurance methodology & CAD/CAM technology
• Fool proof protection & crossover networks using dependable and simple to use yet highly advanced analog signal processors
• Speakon eight pin interconnects throughout
• Enclosure dimensions configured for optimum truck pack
• Optional, rugged dollys for selected cabinets
Specifications:
• System Type: 3-Way Trapezoid
• Active or Passive: Passive
• Biamp Operation Only: Yes
• Sensitivity (dB @1Watt/1m): HF:110, MF:109, LF:104
• Max SPL (dB): 134
• Frequency Response (Hz +/- 3dB): 60 - 19k
• HF Driver(s): 1 x 2 inch ceramic with titanium diaphragm
• HF Program Power (Watts): 120
• HF Impedance (Ohms): 8
• HF Horn: Custom waveguide, phase plug coupled
• HF Dispersion ( DEG H x DEG V): 60 x 40
• MF Driver(s): 1 x 8 inch, cast frame
• MF Program Power (Watts): 100
• MF Impedance (Ohms): 8
• MF Horn: Waveguide
• MF Dispersion ( DEG H x DEG V): 60 x 30
• LF Driver(s): 2 x 15 inch cast frame
• LF Program Power(Watts): 800
• LF Impedance (Ohms): 4
• LF Horn: 90 degree hybrid manifold
• Total Power (Watts): 1020
• Inputs - Speakon 4-pin: 1 (subwoofer out)
• Inputs - Speakon 8-pin: 2
• Flying Hardware: ATM top, bottom and sides
• Included Hardware: 17 inch flytrack, bar and quickpin slots
• Optional Flying Hardware: Swivel ring, eyebolt, shackle, bar, quickpin
• Bar Handles: 8
• Enclosure Materials: 18mm / .71 inch - 13-ply baltic birch plywood
• Grille: 16 gauge perforated metal
• Covering / Finish: Black Ultrathane Paint
• Processor (optional): TX8P
• Dimensions (DWH xbackW COM inches): 23.9 x 23.9 x 50 x 11.3
• Dimensions (DWH xbackW COM cm): 60.7 x 60.7 x 127 x 28.7
• Weight (lbs/kg): 214.5 / 97.3
