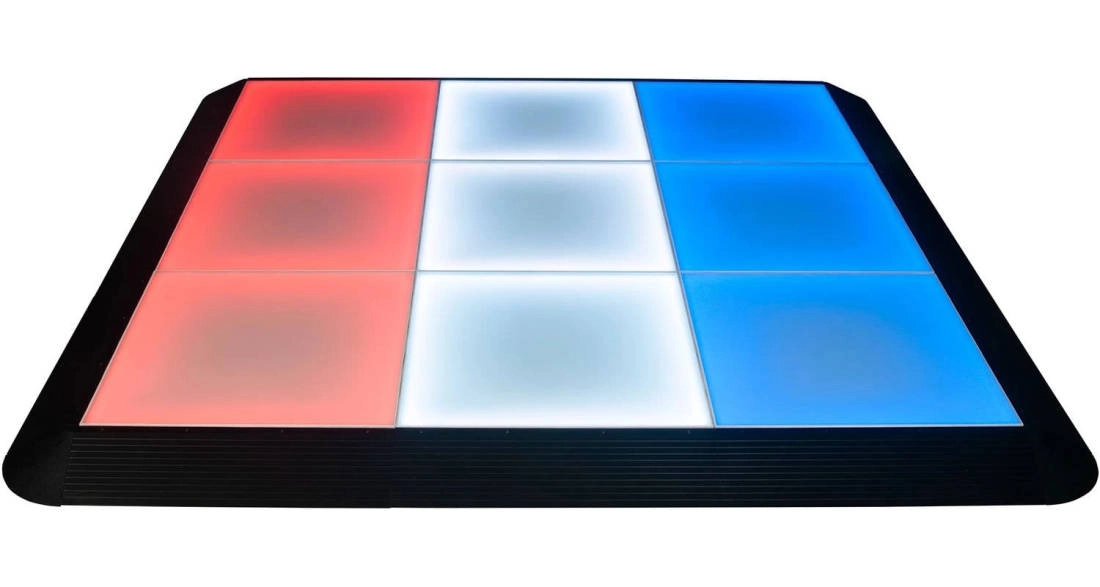

American DJ MDF2 9-Panel LED Magnetic Dance Floor System
Additional Photos:
Product Videos :
The panels fit together together quickly and easily thanks to an innovative magnetic locking system as well as a convenient cable-free power and data transmission arrangement that connects adjacent units in a row. Power and DMX control is then supplied to each row via a dedicated power ramp (MDF2PR) which features 3-pin XLR input and output sockets alongside proprietary 4-pin 24V DC power connections. Power is supplied to the system by a choice of dedicated power supply units designed to supply different quantities of panels (9, 15, 20 or 40), while a complete range of accessories is also available. These include edging ramps (for the three other sides) and corner ramps as well as a dedicated 9 panel flight case and special tool for lifting panels from the middle of a dancefloor.
Thanks to its easy-to-setup design, the MDF Series is ideal for temporary event use by mobile entertainment and event production companies. However, it is also suitable for permanent installation in nightclubs and bars looking to create a uniquely eye-catching dancefloor. The panels and accessories are all available individually, but can also be purchased in a complete pack of 9 panels (MDF433) complete with all cables, ramps and a flight case.
System Includes
(9x) MDF2 (MDF200) - Dance Floor Panels
(9x) MDF2DR (MDF401) - Dummy Ramp
(16x) MDF2FCB (MDF352) - Floor connection bracket
(4x) MDF2CR (MDF417) - Corner Ramp
(3x) MDF2PR (MDF384) - Power Ramp
(1x) MDF2PSUX9 (MDF232) - 200W Power Supply
(1x) MDF2MPC16 (MDF297) - 16 foot power cable to ramp
(1x) AC3PDMX15 (AC3PDMX15) - 15 foot 3-pin male to female DMX Cable
(1x) MDF2FC9 (MDF216) - Flight Case for 9 Panels and accessories
Specifications
Input Voltage: DC 24V
Max Power Consumption: 15W
Input Signal: DMX512 (3-Pin XLR)
Control Mode: DMX-512, Manual, Auto-Programs, Sound
Active DMX Channel Mode: 3, 5, 7, & 10 Channel Modes
Light Source: RGB 3-in-1
Visual Angle: 160⁰
Brightness: High Brightness
Surface Material: Tempered Glass
Base Material: ABS
Bearing Weight: 61.5 lbs./ft2 (300 kgs/m2)
Working Temperature: -4⁰~113⁰F (-20⁰~45⁰C)
Weight: 26.57 lbs. (12.05 Kgs)
