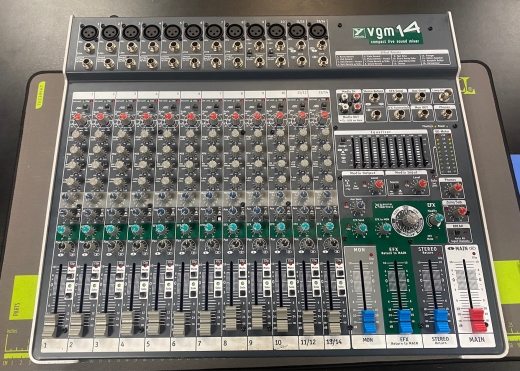

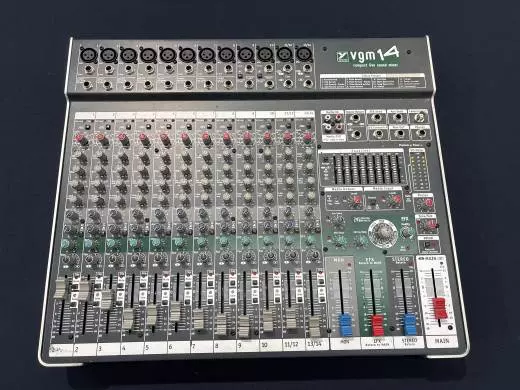

Yorkville Sound 14 Channel Compact Desk Mixer

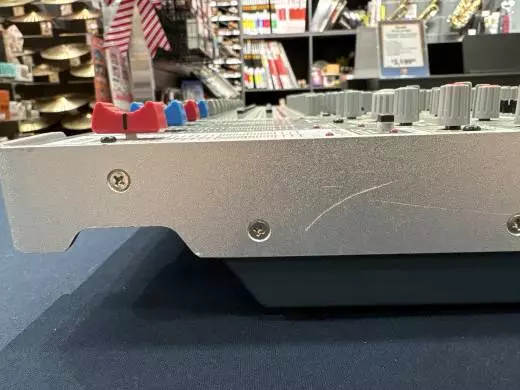

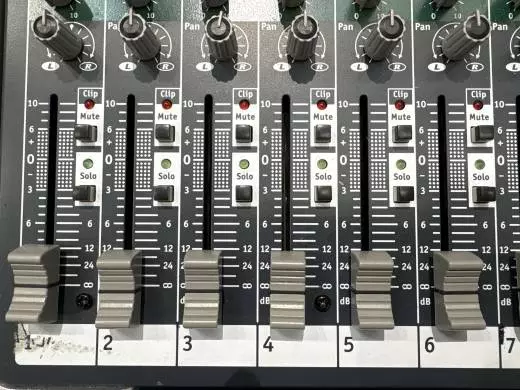

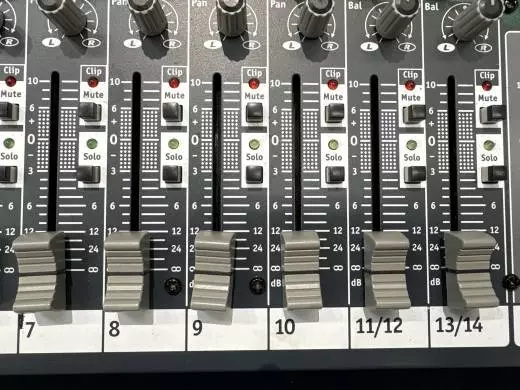

Additional Photos:
Features
Features:
• Ten Mono Input Channels with XLR & -inch TRS inputs
• Channel 9 & 10 Mono Inputs have a Hi-Z input switch
• Two Additional stereo line input channels (11/12 and 13/14)
• Additional XLR mono input per stereo channel for maximum 12 Mic inputs
• Input gain level control with Non-defeatable soft multi-slope compressor on every input
• 3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQs on Stereo Channels
• 60mm Faders Throughout
• Global 48 volt Phantom Power
• Stereo 9-band graphic EQ Assignable Main/Monitor
• Stereo RCA Media Outputs with Level Control
• BREAK Switch (mutes all input channels)
• Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch).
• USB Audio I/O
• Zone/Sub Output with Level Control
• Main stereo TRS phone and XLR outputs
• Sixteen 24bit digital audio effects
• Effects TRS output jack
• Effects defeat footswitch jack
• Effects return to Main and Monitor
• Stereo Return TRS jacks with fader
• Headphone Level Control
• Dual 10-segment LED Output Meter
• IEC removable line cord receptacle (No Adaptors)
• Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz.
Number of Channels: 14
• Channel Inserts: 10
• Mono Channel EQ: 3-Band w/ mid Sweep
• Stereo Channel EQ: 4-Band
• Balance Controls: 11/12, 13/14
• Pan Controls: 1 to 10
• Channel Overload Protection: Yes
• Inputs - XLR (bal): 12
• Inputs - 1/4 IN: 14
• Inputs - RCA (unbal): 1 Stereo Pair
• Solo Switches: Yes - All Channels
• Mute Switches: Yes - All Channels
• Hi Pass Switches: Yes - All Channels
• Activity / Solo LED: Yes - All Channels
• Clip / Mute LED: Yes - All Channels
• Phantom Power: 48 volt + LED indicator
• Internal Effects: 24 Bit Stereo / 16 Effects w/ Modify Control
• Auxiliary Sends: Yes
• Effects Send: Yes
• Effects Return: Yes
• Effects Return to Main: Yes
• Effects Return to Monitor: Yes
• Reverb / Effects Footswitch: Yes
• Record Outputs: Yes (RCA and USB)
• Max Gain to Line Out -Mic Input (dB): 80dB
• Max Gain to Line Out -Line Input (dB): 65dB
• Mixer - Signal to Noise Ratio (dB): Greater than 100dB
• Mixer - Freq Resp (Tone and EQ Flat,2dB): 20Hz - 20KHz
• Mixer- Input Ref Noise to line out @150 Ohms(dBv): -118dBv (@ 150 ohms)
• Mixer THD (Main out w/ -10dB input): Less Than 0.05%
• Amp C-Power Output@8 Ohms: (0.1 PER THD 1kHz): 0
• Amp C - Power Output @ 4 Ohms: 0
• Amp D-Power Output@8 Ohms: (0.1 PER THD 1kHz): 0
• Amp D - Power Output @ 4 Ohms: 0
• Typical crosstalk -1 kHz (dB-: Less Than -60dB
• CMRR @ 60Hz (min/typ): 55dB/65dB
• Power Consumption (typ/max): 26VA (typical)
• Cooling: Fan
• Transformer Type: SMPS
• Chassis Construction: Steel
• Console Lamp Connector 12V DC (BNC): Yes - 12V DC (BNC)
• Other Features: Zone Output, Hi-Z Inputs (Ch9&10) USB I/O
• Dimensions (DWH, inches): 16 x 19 x 2.8
• Dimensions (DWH, cm): 40.6 x 48.3 x 7.1
• Weight (lbs/kg): 13/5.9
Q & A
Reviews
Available In Gear Hunter
Sale Price: $449.00
Rental rates
This product is normally available for rental. Please contact your preferred location for further information.
1 Day from $9.00
1 Week $18.00
1 Month $35.00
