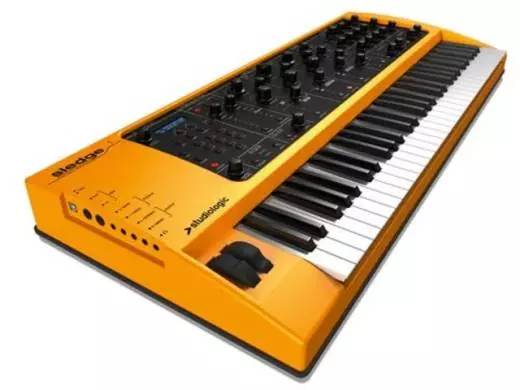

Studio Logic 8 Voice Virtual Analog Synthesizer
Additional Photos:
This product is no longer available.
For many synthesizer enthusiasts, it is the particular interaction of the sound engine and user interface that makes a great instrument. A quick look at Sledge shows you the generous set of controls available to interact directly with the sound engine. When you touch the knobs and switches of the front panel, you will instantly be aware of the meticulous attention to detail our engineers have refined, during many decades building the best electronic keyboards.
You will experience the logical set-up of the synthesizer modules, mirroring the signal flow of a classic analogue synthesizer. But what really distinguishes any synthesizer is its sound. Fortunately, our friends at Waldorf Music have happily shared their experience and know-how on this crucial part of the Sledge Synthesizer.
So we implanted the DSP heart of the latest Waldorf modelling technology into Sledge. The result: enough power to put the foundations of your studio seriously at risk! And plenty of detail, to create the richest analogue pads you could ever want. Besides the classic analogue synthesizer waveforms, you will find a complete set of Wavetables, derived directly from the mother of all digital synthesizers, the PPG Wave.
The sum of three fat oscillators, plus a Noise generator, are fed into Sledge's powerful multimode filter with selectable 24 / 12 dB slope. The highly recognizable Waldorf filter algorithms enable a wide variety of sounds, from smooth to harsh, from fat to distinct, from pure HiFi to badass brutal. Ultra-fast, accurate envelope generators deliver ballsy punch. Two LFOs plus 1 extra Wheel-LFO are on board to offer huge, yet easy to understand, modulation capabilities. And two built-in Effect units deliver sophisticated synthesizer effects, such as Chorus, Phaser and Flanger, as well as a rich Reverb or an analogue style Delay.
And the best part if you are familiar with the operation of a classic analogue synthesizer, you wont have to spend any of your precious time reading the manual. There are no double or multiple functions on any of the knobs or pushbuttons. All synthesizer parameters are clearly and ergonomically arranged in front of your eyes and directly accessible under your fingertips. This makes sound design a blast, and takes you back to the pure user experience which youll soon realise youve been missing.
Specifications:
• 32 Pots
• 3 chicken head rotary switches (7 positions)
• 1 rotary encoder with push function
• 2 x 16 digits backlit LCD
• High Quality Pitch and Mod Wheel
• up to 256 Sounds
• fast and efficient sound selection via numeric keypad
• 2 fast LFOs per voice, each with adjustable Speed and Depth
• 1 extra modulation routing for Mod Wheel, with adjustable Speed and Depth:
- Shape: Sawtooth, Rectangular, Triangle, Sine, Sample & Hold, Ramp
- Destination: Osc 1, Osc2, Ocs3, PWM / Wave / FM, Volume, Filter Cutoff
• 8 Voices polyphony
• Monophonic mode with single or multiple trigger
• 3 Oscillators per voice:
- Range from 64' to 1' each
- Shapes: Sawtooth, Square, Triangle, Sine, Pulse (with Pulse Width Modulation)
- Oscillator 1 with 66 Original PPG Wavetables
• Frequency Modulation of sine and triangle
• Oscillator Hardsync (Osc 2 to Osc 3)
• Noise Generator with selectable white and pink noise
• Mixer with Volume and On/Off switch for each Oscillator and Noise
• 1 Multi Mode Filter per voice:
- 24 / 12dB
- Lowpass
- Highpass
- Bandpass
- Resonance up to Self-Oscillation and beyond
- Adjustable Keytrack and Drive
• 2 fast Envelopes per voice (filter / amplifier)
• Powerful Arpeggiator:
- Latch mode
- syncable to MIDI Clock
- Direction Up, Down, Alternate
- Range up to 10 Octaves
• 2 simultaneuous Effects:
- Effect 1: Chorus / Phaser / Flanger
- Effect 2: Reverb / Delay
• sturdy, lightweight enclosure (less than 10 KG)
• high quality, 5 octaves Fatar TP 9 keyboard
• Master Volume Control Power Switch
• Stereo line output
• Headphone output
• Expression pedal input
• MIDI in and out
• USB connector for MIDI in / out:
- uses standard USB MIDI driver provided by host computer OS
- Windows ME minimum, Windows XP or newer recommended
- Mac OS X 10.2 minimum, Mac OS X 10.3 or newer recommended
• Built in power supply
You will experience the logical set-up of the synthesizer modules, mirroring the signal flow of a classic analogue synthesizer. But what really distinguishes any synthesizer is its sound. Fortunately, our friends at Waldorf Music have happily shared their experience and know-how on this crucial part of the Sledge Synthesizer.
So we implanted the DSP heart of the latest Waldorf modelling technology into Sledge. The result: enough power to put the foundations of your studio seriously at risk! And plenty of detail, to create the richest analogue pads you could ever want. Besides the classic analogue synthesizer waveforms, you will find a complete set of Wavetables, derived directly from the mother of all digital synthesizers, the PPG Wave.
The sum of three fat oscillators, plus a Noise generator, are fed into Sledge's powerful multimode filter with selectable 24 / 12 dB slope. The highly recognizable Waldorf filter algorithms enable a wide variety of sounds, from smooth to harsh, from fat to distinct, from pure HiFi to badass brutal. Ultra-fast, accurate envelope generators deliver ballsy punch. Two LFOs plus 1 extra Wheel-LFO are on board to offer huge, yet easy to understand, modulation capabilities. And two built-in Effect units deliver sophisticated synthesizer effects, such as Chorus, Phaser and Flanger, as well as a rich Reverb or an analogue style Delay.
And the best part if you are familiar with the operation of a classic analogue synthesizer, you wont have to spend any of your precious time reading the manual. There are no double or multiple functions on any of the knobs or pushbuttons. All synthesizer parameters are clearly and ergonomically arranged in front of your eyes and directly accessible under your fingertips. This makes sound design a blast, and takes you back to the pure user experience which youll soon realise youve been missing.
Specifications:
• 32 Pots
• 3 chicken head rotary switches (7 positions)
• 1 rotary encoder with push function
• 2 x 16 digits backlit LCD
• High Quality Pitch and Mod Wheel
• up to 256 Sounds
• fast and efficient sound selection via numeric keypad
• 2 fast LFOs per voice, each with adjustable Speed and Depth
• 1 extra modulation routing for Mod Wheel, with adjustable Speed and Depth:
- Shape: Sawtooth, Rectangular, Triangle, Sine, Sample & Hold, Ramp
- Destination: Osc 1, Osc2, Ocs3, PWM / Wave / FM, Volume, Filter Cutoff
• 8 Voices polyphony
• Monophonic mode with single or multiple trigger
• 3 Oscillators per voice:
- Range from 64' to 1' each
- Shapes: Sawtooth, Square, Triangle, Sine, Pulse (with Pulse Width Modulation)
- Oscillator 1 with 66 Original PPG Wavetables
• Frequency Modulation of sine and triangle
• Oscillator Hardsync (Osc 2 to Osc 3)
• Noise Generator with selectable white and pink noise
• Mixer with Volume and On/Off switch for each Oscillator and Noise
• 1 Multi Mode Filter per voice:
- 24 / 12dB
- Lowpass
- Highpass
- Bandpass
- Resonance up to Self-Oscillation and beyond
- Adjustable Keytrack and Drive
• 2 fast Envelopes per voice (filter / amplifier)
• Powerful Arpeggiator:
- Latch mode
- syncable to MIDI Clock
- Direction Up, Down, Alternate
- Range up to 10 Octaves
• 2 simultaneuous Effects:
- Effect 1: Chorus / Phaser / Flanger
- Effect 2: Reverb / Delay
• sturdy, lightweight enclosure (less than 10 KG)
• high quality, 5 octaves Fatar TP 9 keyboard
• Master Volume Control Power Switch
• Stereo line output
• Headphone output
• Expression pedal input
• MIDI in and out
• USB connector for MIDI in / out:
- uses standard USB MIDI driver provided by host computer OS
- Windows ME minimum, Windows XP or newer recommended
- Mac OS X 10.2 minimum, Mac OS X 10.3 or newer recommended
• Built in power supply
Q & A
There are currently no questions for this product.
Reviews
216.73.216.212
0
Mozilla/5.0 AppleWebKit/537.36 (KHTML, like Gecko; compatible; ClaudeBot/1.0; [email protected])
Synth made for players
0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I've tried it
Closest Store Burlington, Ontario
This synth is a joy to play, and tweak. It's layout is well spaced, and very comfortable, not unlike synths of pre "LCD Screen" era (think Prophet 5, Juno's, Jupiters, Minimoogs, etc). Every aspect is immediately accessible. No menu diving required at all. Excellent for a live performer. Key action is fantastic, as expected when it's built by Fatar.
I'm not crazy about the plastic moulded body, and the bright colour. But it certainly keeps the weight down and helps it stand out in the crowd of virtual analogues.
As for sound, it's excellent if you like Waldorf type tones (as the synth engine is created by Waldorf). Bell like tones, Sine wave leads with delay, and Comp stacks are great on this. And the bass goes DEEP. (Make sure you test it on realy good speakers! If you test on a basic keyboard amp or cheap headphones, you won't get the real picture)
It has a wavetable on Oscillator 1. This feature is sadly missing on most VA's. The wavetable can be modulated by various mod sources such as LFO or envelope. Oscillators can by sync'd and FM'd for more complex tones.
One oddity (that hopefully can be addressed in an update), the filter cutoff seems to lag when moved large amounts. Fortunately, there is no "VA Zipper" noise when doing this though.
Effects are very basic. One knob overdrive that sounds respectable. Delay with level, time, and repeats. Reverb with time, and size. Basic, but perfect for live, not in depth as some other machines. (But we have plugins, pedals or rack effects for more complex stuff)
Overall, it's a not a deep synth but deeper than some of the other basic synths, it sounds great if you want something a more lush or sophisticated rather than raw and brute.
Posted by James on Jul 10, 2013
For those who want true analog experience
0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I've tried it
Closest Store Scarborough, Ontario
If you hate mucking with and endless array of buttons and menus and want to really fine tune your sounds & waveforms, this fits. It has 100 presets, not the greatest sounds, but tweaking cutoff filters and ADSR envelopes can be quite enjoyable however to screw with this in live production will probably mess you up as you'll have to remember where each knob setting was left off and can get very confusing. It is quite large sized for the features it offers which is not too many.
Posted by anonymous on Jun 11, 2013
Seen it, played it, don't recommend it
0 of 0 customers found this review helpful
Features
Quality
Value
Overall
Product Experience I've tried it
Closest Store Toronto (Bloor St.), Ontario
This is a big and clunky looking synth, the main panel is so large you would need 5 arms to operate. It's not really performance minded, the size of the knobs and panel are so ridiculously large that it makes for a very unnecessarily large instrument. It's not a practical buy, and it sounds were mediocre at best in comparison to Nord II at the same price range.
Posted by anonymous on May 13, 2013
