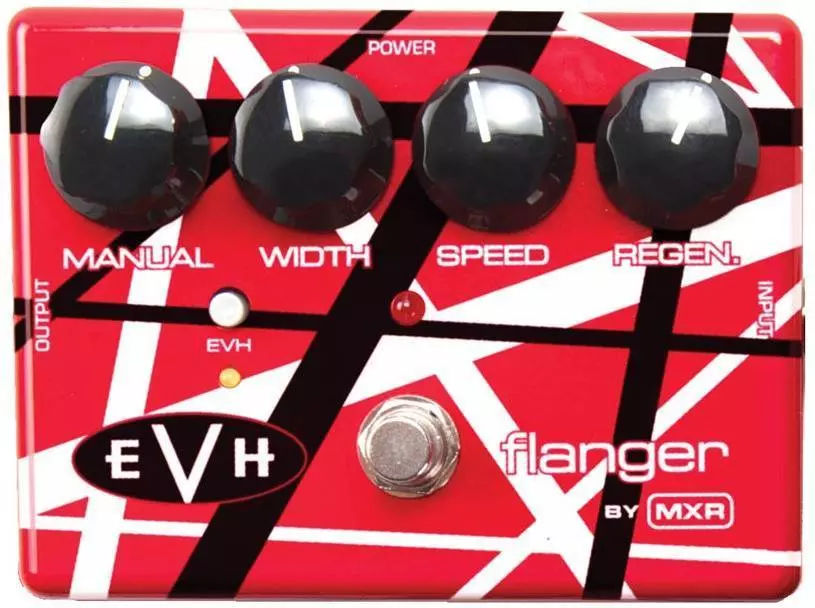

MXR EVH 35th Anniversary Flanger

Classic EVH flanging tonality!

Dunlop's done it again! Dunlop and Edward Van Halen have collaborated to bring back the classic tone of the MXR Flanger that powered timeless Van Halen tunes like "Unchained" and "And the Cradle Will Rock." The result of their effort is the MXR EVH 117 Flanger, a stompbox with the same bucket-brigade technology that provided the sweeping, whooshing magic of the original. This updated model comes with the EVH Switch, which instantly calls up Eddie's "Unchained" sound with the exact settings used to get the original guitar tone. On top of that, it comes painted with the cool striped graphics Eddie used to customize his guitars.

MXR EVH-117 Eddie Van Halen Flanger Features:

Manual, Speed, Width, and Regeneration controls
EVH Switch activates preset Manual, Speed, Width, and Regeneration settings for instant "Unchained" tone
Original bucket-brigade circuit
Die-cast housing
EVH striped graphics

Features and Specifications
Input Impedance: 470K Ohm
Output Impedance: 1K Ohm
Max Input Level: +5 dBV @ 1kHz
Max Output Level: +5 dBV @ 1kHz
Signal to Noise (All Controls Mid-Position): >98dB 'A' weighted (Vref 1V RMS)
Frequency Response: 20Hz - 20kHz
Max Delay: 37.9ms
Max Phase Shift: 13.64k deg. @ 1kHz
Noise Reduction: 2:1 ratio, optimum independent attack and recovery
Rate Control: 0.1 Hz - 10Hz
Housing Dimensions: 5" x 3-3/4" x 1-1/2"
Weight: 1.5 lbs
Housing Material: Zinc
Power Draw: 35 mA
Power Requirement: Dunlop ECB-004 18VDC adaptor with 5.5mm x 2.1mm positive barrel & negative centre or two 9v batteries
