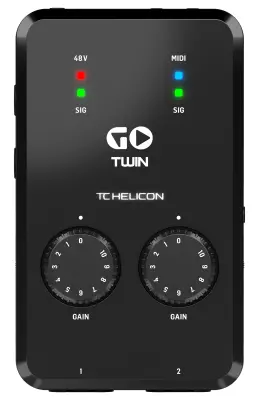

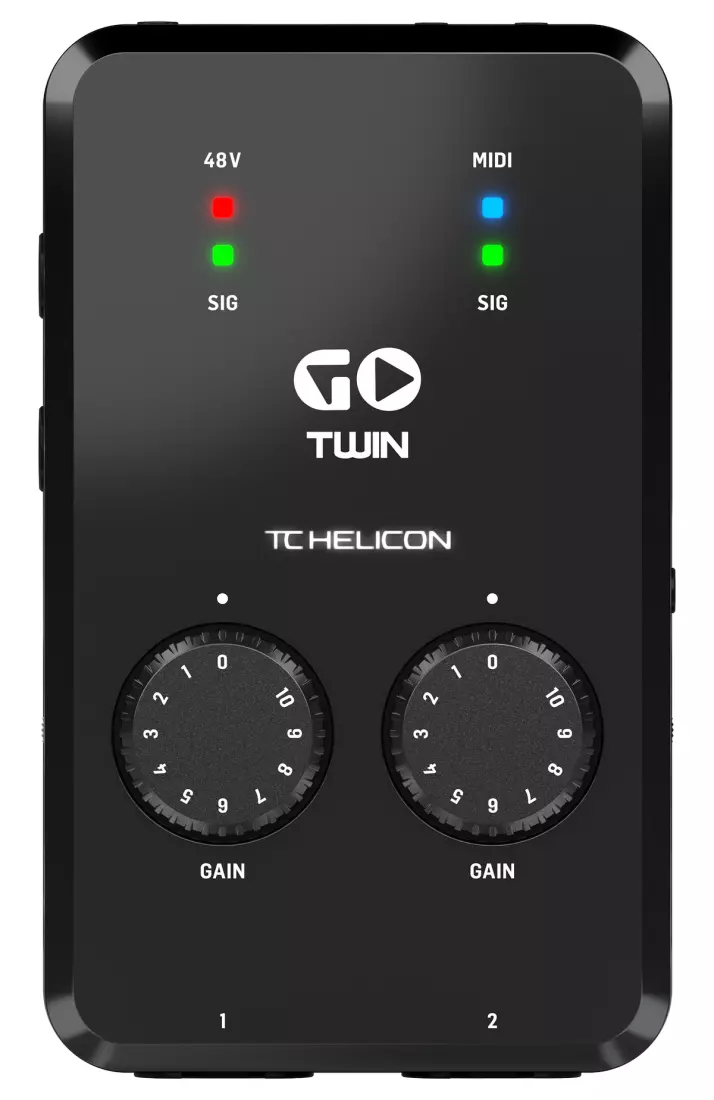

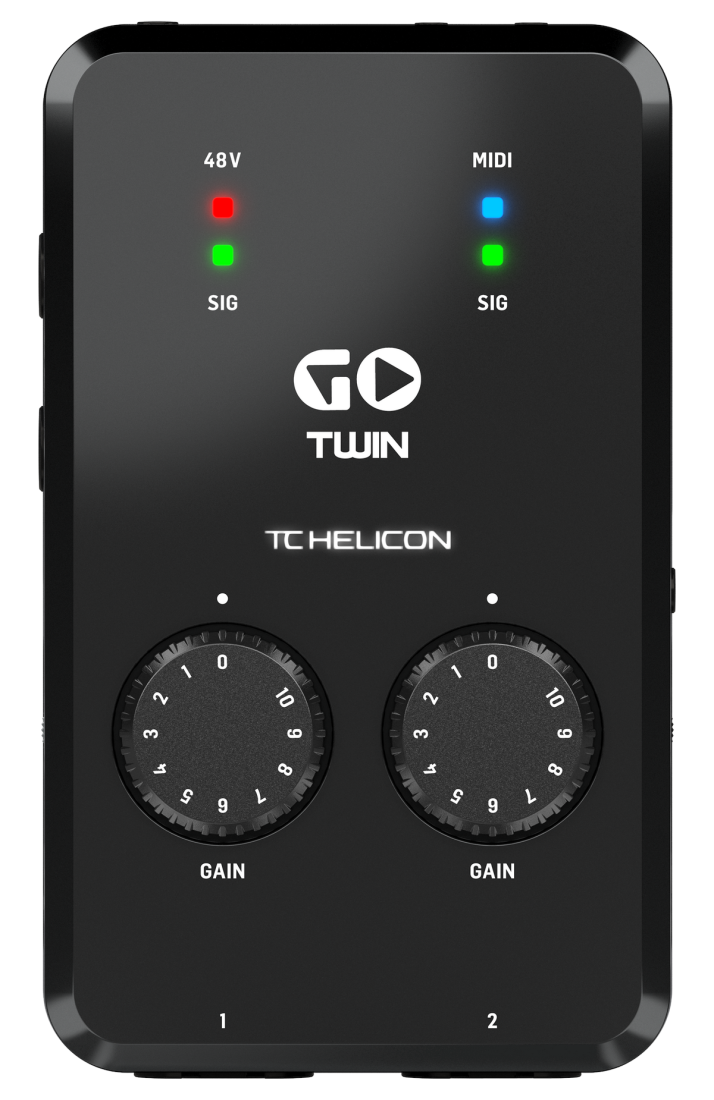

TC-Helicon GO TWIN High-Definition 2-Channel Audio/MIDI Interface for Mobile Devices

Professional Recording, Anywhere
GO TWIN allows creators the freedom to record quality dual-track audio anywhere, anytime using your mobile iOS, Android, Mac and PC devices. Now, record anything with any compatible device. Enjoy crystal-clear professional level 24-bit 48khz audio recording in a small, mobile package.

Creator Friendly
Whether you're a musician, podcaster, Youtuber or all three, being able to record yourself quickly and easily is essential to capturing inspiration. Never let another moment pass you by with the speed and ease of recording with GO TWIN.

Small-Box, Big Sound
GO TWIN contains two ultra-clean pre-amps from award-winning, high-end mixing console manufacturer Midas. 48 V Phantom Power makes sure you'll always have enough juice for your condenser mic wherever you record.

Real-Time Monitoring
Real-time signal and peak level indicators and adjustable, oversized gain knobs allow you to precisely control your recording levels. Monitor yourself live and latency-free via the 1/4" headphone jack and focus on making great recordings.

MIDI Might
Built with chaining and routing in mind. Connect your keyboards, controllers, and sound modules with two standard 5-pin MIDI to 2.5 mm cables. Use the MIDI OUT for additional routing possibilities to control sounds, samples, and more.

App Suite Spot
Enjoy a suite of free, fully unlocked apps from TC-Helicon when you plug your GO TWIN device into your compatible iOS device. Transform your guitar with a fully featured pedal board and amp emulator using Guitar Rack. Capture backing tracks and live vocal and video effects using Go Studio FX. Create clean voice recordings, loops and entire songs with Go Record. With GO TWIN, your app comes automatically unlocked.

Features
• Record high-quality audio using your mobile device
• Control sounds, samples and more with integrated MIDI
• Dual combo XLR jacks for microphone, line level and instrument inputs
• High-quality microphone preamps with +48 V phantom power
• Integrates seamlessly with the creative suite of TC Helicon and other mobile apps
• Stereo headphone output with adjustable gain allows real-time monitoring
• Dual 1/4" TRS outputs with level control connect to your PA or studio monitors
• 2 x 2.5 mm MIDI I/O jacks allow you to connect your 5-pin MIDI devices (cables included)
• Connects directly to your iOS, Android, Mac and PC devices using USB or MFi Lightning cables provided
• Powered via USB or 2 AA batteries

Specifications
Analog Connections
Microphone input: 2 x XLR balanced
Impedance: approx 2.3 kΩ
Instrument input: 2 x 1/4" TS unbalanced
Impedance approx: 470 kΩ
Headphones: 1 x 1/8" TRS, stereo
Line output: 2 x 1/4" TRS , balanced
Impedance approx: 1.5 kΩ
Digital Connections
Mobile device / computer: Mini USB 10 pin
Driver: USB Audio 1.0 Class Compliant
Controls
Input gain: 0 to +47 dB, adjustable
Phantom power: Off / on, switchable
Voltage: +48 V
Direct monitor: Off / on, switchable
MIDI
Connectors: 2 x 2.5 mm (cables included)
System Processing
A/D - D/A conversion: 24-bit @ 44.1 kHz, 48 kHz
Frequency response: 20 Hz to 20 kHz, +0.2/-1.2 dB
Dynamic range: > 98 dBA
Power
Power source: USB bus power, DC power supply, battery power
Power supply: 5 V DC, ≥2.5 A, center positive (not included)
Batteries: 2 x AA (included)
Dimensions / Weight
Dimensions: 40 x 77 x 128 mm (1.6" x 3.0" x 5.0")
Weight: 0.37 kg (0.81 lbs)
