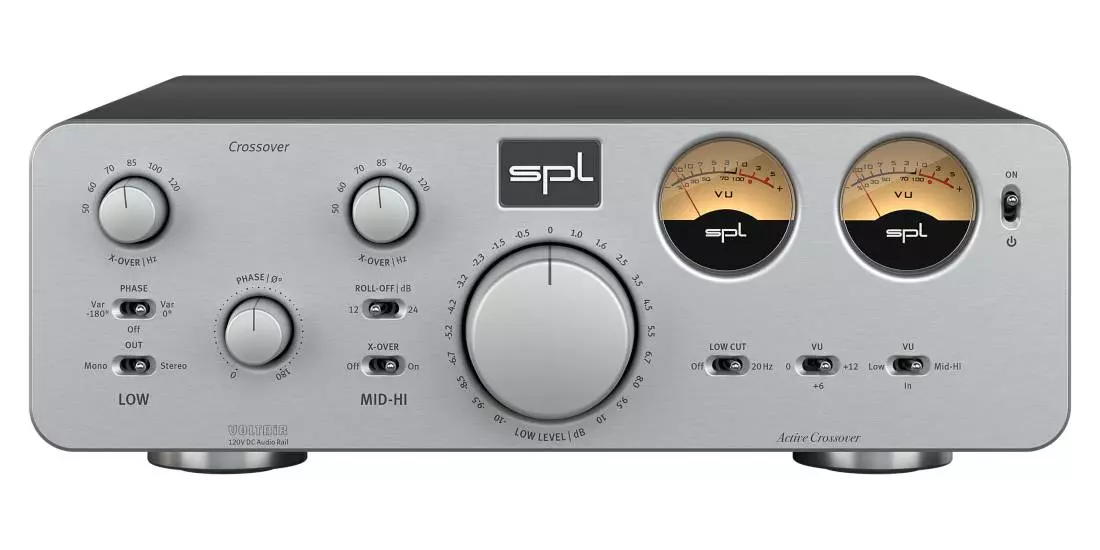

SPL Active Analog 2-Way Crossover - Silver
Additional Photos:
The SPL Crossover is a high-end active analog 2-way crossover that will perfectly team up your subwoofer(s) with your top speakers. You can tune crossover frequencies, align the phase response and set levels all in the analog domain.
VOLTAiR technology is proprietary 120V rail technology used in the Professional Fidelity series. The Crossover uses this technology throughtout and makes it an outstandig device in terms of dynamic range, signalto-noise ratio and headroom. It delivers an exceptional sound experience with invincible serenity, transparency and realness.
Crossing Over
The crossover is divided into two section: The Low section for the bass loudspeaker or subwoofer (mono or stereo) and the Mid-Hi section for the top/main speakers. The crossover frequencies for Low and Mid-Hi can be set individually from 50 Hz to 120 Hz in 6 positions.
In the LOW section you control the crossover frequency, the level, the phase of the LOW section. You also select whether your playback system has a single subwoofer or two subwoofers. The Low filter has a slope of 24 dB per octave. The slope of the MID-HI filter can be switched from 12 dB (Butterworth) to 24 dB (Linkwitz/Riley).
One or two?
If you want to connect two bass loudspeakers or subwoofers (one for L and one for R), this switch should be set to stereo.
If you only use one bass loudspeaker or subwoofer, switch to mono. The crossover creates a mono signal of the Low frequencies and outputs it to both Low outputs (L + R).
On or off?
If you prefer to run the top/main speakers full-range, you can switch off the MID-Hi filter.
Low Cut Filter
With the Low Cut filter all frequencies below 20 Hz can be filtered out with a 6dB roll-off. This way, no inaudible low frequencies get into the power amplifier, which relieves it a lot.
As long as you're having fun
The playback volume of the bass loudspeaker or subwoofer can be varied from -10 dB to +10 dB.
In addition to the purely corrective adjustment of the speaker system, you can add more bass into recordings that lack low end.
Good ol' times
Two mechanical VU meters visualize the input levels for the left and right audio channel.
With the VU switch you can optimize the display for different signal levels.
Sources
The Crossover offers both balanced inputs with XLR sockets and standard inputs with gold-plated RCA sockets.
Low & Mid-Hi
On the output side, the power amplifiers or active loudspeakers as well as bass loudspeakers or subwoofers are connected to the Low & Mid-Hi output sockets by means of balanced XLRs. This means that even long cable runs to e.g. mono power amps placed next to the speaker are possible without the risk of interference.
AMP CTL
The AMP CTL sockets can connect up to four power amplifiers with 12 V trigger inputs to switch them on and off together with the crossover. The crossover itself can also be switched on by a preamplifier like the Director Mk2 or Phonitor x.
Specifications
XLR inputs
• Neutrik XLR, balanced, Pin 2 = (+)
• Impedance: ca. 20 kohms
• CMR: -82 dBu (at 1 kHz)
• Max. Input level: +32.5 dBu
RCA inputs
• Unbalanced
• Impedance: ca. 10 kohms
• Max. Input level: +32.5 dBu
Internal operating voltages
• Analog: +/- 60 V
Power supply
• Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 Hz
• Fuses: 230 V: T 630 mA; 115 V: T 1.2 A
• Power consumption: max 50 VA
• Stand-by power consumption: < 0.1 W
Dimensions (incl. feet)
• (WxHxD) 10.94 x 3.94 x 12.99 in (278 x 100 x 330 mm)
Weight
• 11.90 lbs (5.4 kg)
