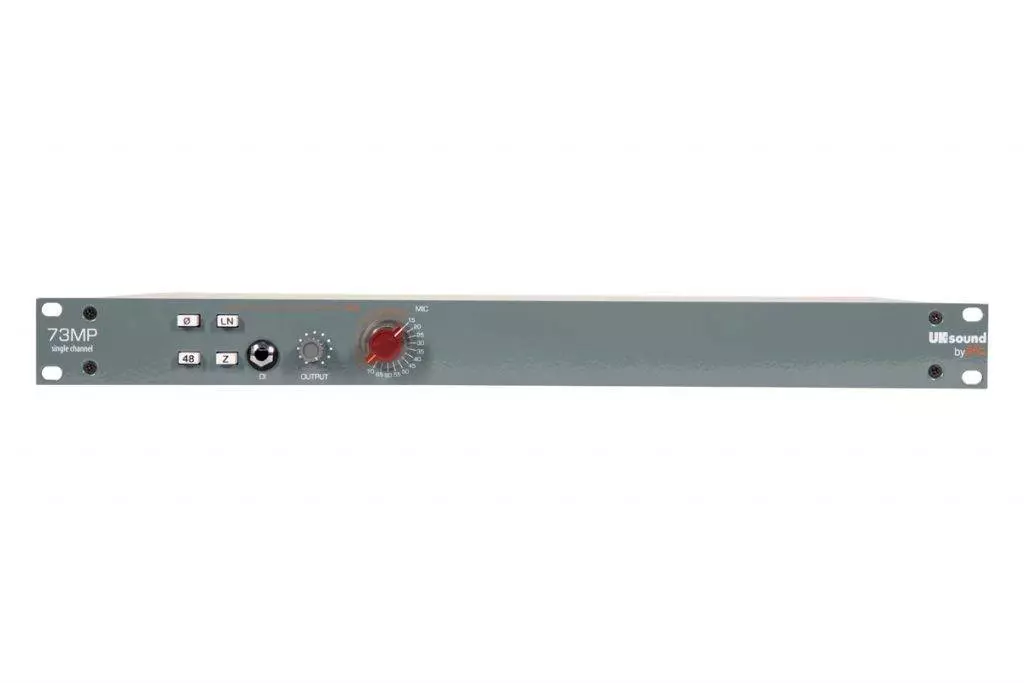

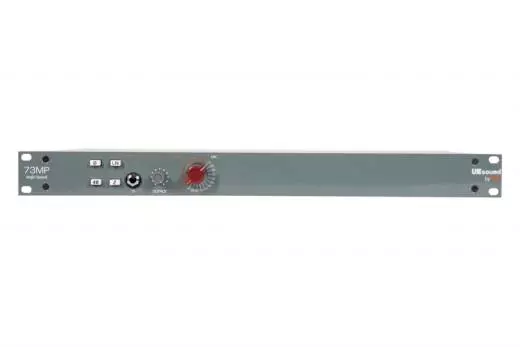

BAE Audio UK Sound 73MP Single Channel Microphone Preamp

Departments > Pro Audio & Recording > Channel Strips > BAE Audio > UK Sound 73MP Single Channel Microphone Preamp
  Add to Wish List
SKU: # 748640
Model: #

UK73MP

Your Price: $839.00 CDN
2 models to choose from:

Online

 Add to Cart

In-Store

This is the mic pre-amp version of the 1073 equaliser having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

A Carnhill transformer coupled input, with two selectable impedances makes the 1073MP work well with a variety of microphones.

There is also a line input feature for adding depth to 2-bus mixes and a DI input for all passive and active instruments.

As a coloured and versatile mic-pre, the 1073MP maintains its sonic signature across a wide bandwidth.

Features
• All Class A, transformer-coupled design in a 19" 1U chassis
• Line level XLR inputs for extra versatility as a line preamp
• High impedance DI for guitar and synth
• The same Class A components as the 1073 and 1084
• Illuminated phase reverse and phantom power push-buttons
• Input impedance selector switch
• Same modular design and hand-wiring BAE is known for
• Regulated linear power supply will run up to four channels

Specifications
Frequency Response: 6Hz to -3dB at 75kHz, Flat within 0.5dB between 20Hz and 20kHz
Mic Input Impedance: ≈600/150 ohms
Line Input Impedance: 10k ohms
DI Input Impedance: ≈150k ohms
Output Impedance: 65 ohms
Common Mode Rejection Ratio: 100dB min @ 60Hz
Maximum Output Level: +27.4 dBu @ 600Ω
Power Requirements: 115/230 VAC, 30W
Gain dB: 0 to 71 dB
Equivalent Input Noise: -110 dBu; Unweighted 300kHz Bandwidth
Weight (Single): 5 lbs / 2.27 kg
Dimensions (W x L x D): 19" x 1.75" x 9"
There are currently no reviews for this product, be the first to write one!

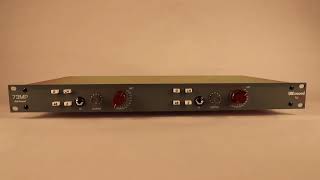

UK Sound 73MP
