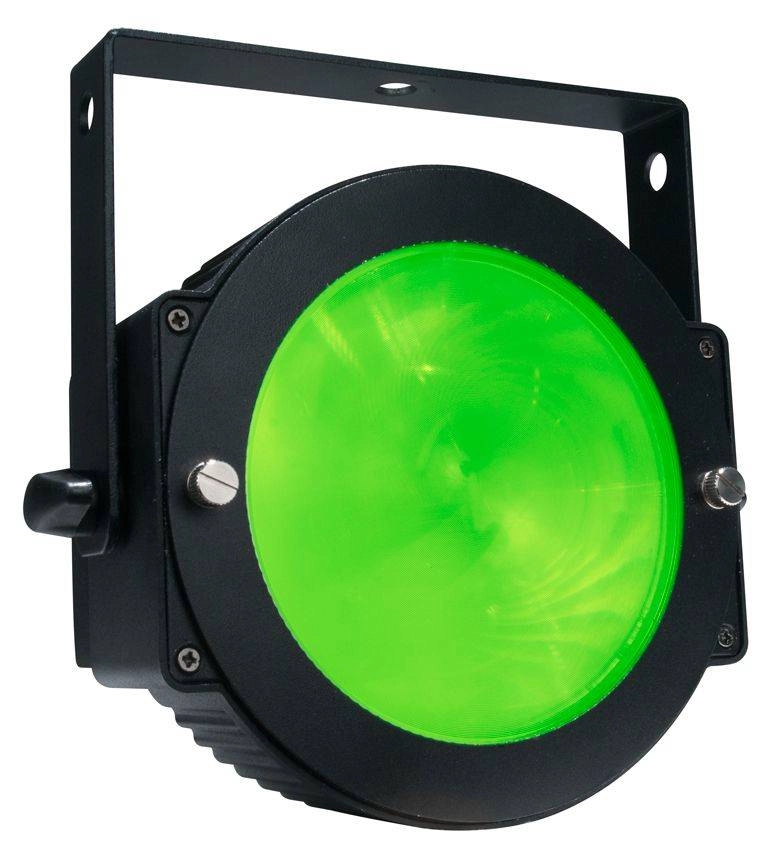

American DJ Dotz Par - Low Profile COB LED Par
Additional Photos:
The Dotz Par produces wash of 60-degrees (25-degrees if you put on the supplied lens kit). It has 4 DMX Channel modes for programming flexibility, 32 built-in colour macros and 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, DMX and power power daisy-chaining , and a 4-button LCD DMX display. Dotz Par may run in its stand-alone mode from built-in programs, sound actively, from a DMX controller, or from the ADJ Par RF wireless remote control (sold separately).
Specifications
• COB Technology (Chip On Board) produces powerful, smooth RGB colour mixing with rich palettes of colour
• Use as Wash/par or Pixel Mapped for a stunning visual effect
• 5x Operational modes: Auto Run, Sound Active, Colour Macro, Dimmer, and DMX Controlled Mode
• 4 DMX channel modes: 3, 4, 5 or 9 channel
• Built-In preset colours and programs
• 32 built-in Colour Macros
• LED pulse and strobe effect
• 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
• Beam angle: 60-degrees (25-degrees with supplied lens kit)
• 3-pin XLR chassis mount connectors for DMX linking
• With Wired Digital Communication Network
• IEC AC IN/OUT to daisy chain power (up to 10 Dotz Par's @ 120V and 22 Dotz Par's @ 230V)
• Power Cable Length: 1.8M (IEC)
• 4-button LCD DMX display on rear panel
• Compatible with ADJ Par RF wireless remote control (sold separately)
• Light Source: 1x 36-Watt COB TRI LED (RGB: 3-IN-1, rated at approximately 50,000 hrs)
• Light output: LENS ON: 970 LUX @2M; 266 LUX @4M (25-degree beam), LENS OFF: 130 LUX @2M; 36 LUX @4M (60-degree beam)
• Refresh Rate: 3.6KHz
• Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
• Dimensions (LxWxH): 6.5" x 4.5" x 6.5"/ 165 x 114 x 165mm (Without Bracket) / 8.25" x 4.5" x 8.75" / 209 x 114 x 222mm (With Bracket)
• Weight: 5 lbs / 2 kg
• ETL Approved
