Departments > Pro Audio & Recording > Multi-track Recorders > Recorders - Digital Multitrack > JoeCo > BBWR24B BLUEBOX Workstation Interface Recorder w/ 24 Balanced Analog In & Outs

JoeCo

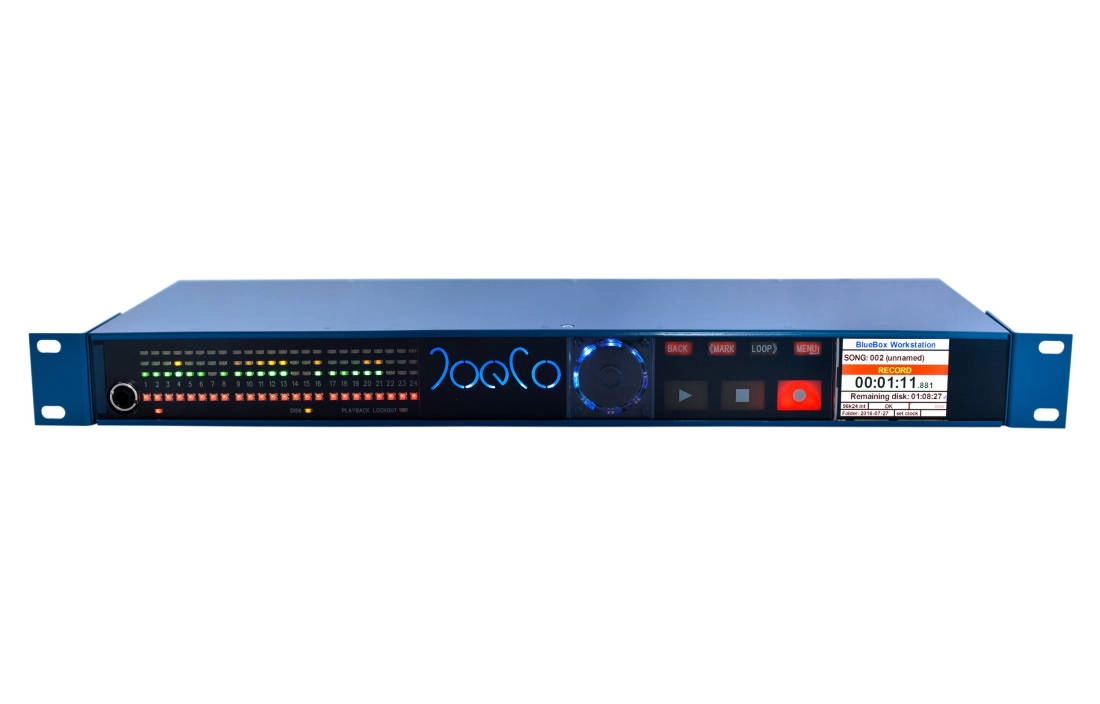

BBWR24B BLUEBOX Workstation Interface Recorder w/ 24 Balanced Analog In & Outs

SKU: # 757250   |   Model: # BBWR24B   |    Product Reviews0 Reviews  Write a Review

BBWR24B BLUEBOX Workstation Interface Recorder w/ 24 Balanced Analog In & Outs
Your Price: $4,399.00 CDN
or from $203 CDN/mo

Buy Online

 Add to Cart

Buy In-Store

Based on JoeCo's award-winning BLACKBOX Recorder technology, the new BLUEBOX range of Workstation Interface Recorders brings you more than just top of the range interfaces for your DAW. Each BLUEBOX is also a trusted, professional multi-track location recorder, and a unique back-up solution that ensures no source recordings are ever lost.

The most affordable BLUEBOX yet has arrived in the shape of the BBWR24B, giving you 24 balanced line inputs, 16 Lightpipe inputs (with SMUXII support for higher sample rates) and 24 balanced outs, plus the same field recording capabilities as the award-winning BLACKBOX Recorder, and simultaneous back up of all source recordings as an audio interface.

Features
• 24 channel mic/line recording to workstation at 24bit/96kHz
• 24 channels analogue output from workstation at 24bit/96kHz simultaneously
• 24-channel simultaneous local recording or playback at 24bit/96kHz
• 24 high-quality integrated mic preamps (full 24bit/96kHz operation)
• Synchronisation options: timecode, word clock, video sync
• Remote control, monitoring and set-up via JoeCoControl computer interface or via JoeCoRemote for iPad
• Multiple connection options: switchable mic/line inputs, balanced outputs
• Records standard broadcast WAV files to an external USB2/3 drive. Captured audio material can be imported into any digital workstation for instant re-purposing. No file transfer necessary
• Simultaneous stereo mixdown during recording
• Runs off 12V power source for location use
• Safe'n'Sound Record Recovery protects files in case of power failure

Technical Specifications
Inputs: 40
Mic Preamps / line ins: 24 line inputs / 16ch ADAT Lightpipe inputs
Digital Inputs: No
Balanced Outputs: 24
Headphone outputs: 2 stereo, 2 assignable output feeds
Video Sync: No
Timecode sync: No

Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
Bit depth: 16/24 bit

Workstation
Capacity: 24 channels / 24 bit / 96kHz to and from DAW simultaneously
Interface: USB2

Recorder
Disk interface: USB2 (compatible with USB3)
Disk format: FAT32 compatible with both Mac and PC
File format: Broadcast WAV (BWAV)

Mic preamps:
• Soft limiter: software selectable on/off;
• Hi-pass filter: -6dB @ 100Hz, 12dB/octave
• Max input level: +21dBu
• EIN: < -124dBu (20-22kHz)
• THD: < -110dBFS (20-22kHz @ -10dBFS input) Cross talk rejection > 80dB @ 20kHz
• ZIN: > 10kOhm (single ended); > 2kOhm (differential)
• Line level balanced outputs (+21dBu = 0dBFS)

Outputs:
• Artist's stereo headphone output
• Engineer's stereo headphone output
• 2 stereo artist feeds for feeding external headphone amps
• THD+N E-E: < -90 dBFS (unity gain, 20 - 22kHz, unweighted)

E-E Monitoring: Frequency response: > +/- 0.5dB, 20-40kHz @ 96kHz sampling

Control and Synchronisation
Audio clock synchronisation: Word clock, AES/EBU or SPDIF clock, Video reference and SMPTE linear timecode (all std frame rates supported)

Control:
• JoeCoControl for on screen control;
• JoeCoRemote for iPad;
• GPI, Sony 9-pin and MIDI (MMC) for transport controls

Physical: 19" rack-mounted 1U (435 x 44 x 170mm) > 3kg

Power: 12V DC (Kycon 4-pole connector), 35W max.
External universal PSU included
