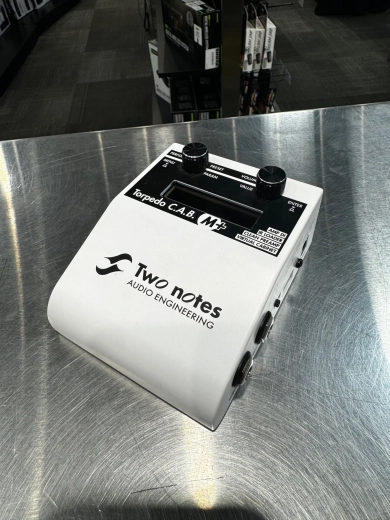

Two Notes
Torpedo C.A.B. M+
Additional Photos:
Product Videos :
The all new selection of 32 premium DynIR Virtual Cabinets include official cabinet captures from Celestion, Engl and Victory Amplification. In addition to the cabinets, Torpedo C.A.B M+ offers a clean preamp based on an all original '74 SilverFace B'man, tube poweramp emulations and a wide range of effects designed to shape your tone the way you hear it in your head.
The virtual miking is achieved by choosing one cabinet and two microphones, and fine-tuning the position of each microphone in front of the cabinet. The Torpedo C.A.B. M+ allows the user to assume the role of the sound engineer in a professional studio.
In the Box:
1x Torpedo C.A.B. M+ unit in a protecting sleeve
1x mains power adapter
1x USB cable
1x 256 Mb memory card
1x quickstart guide
Specifications

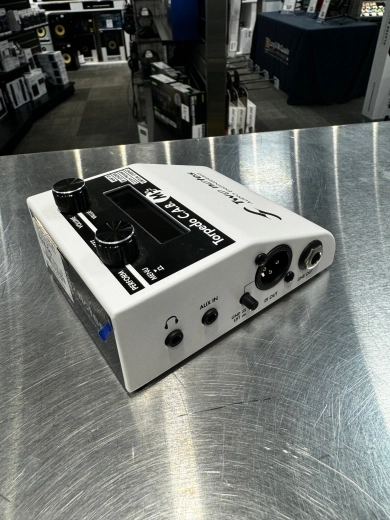

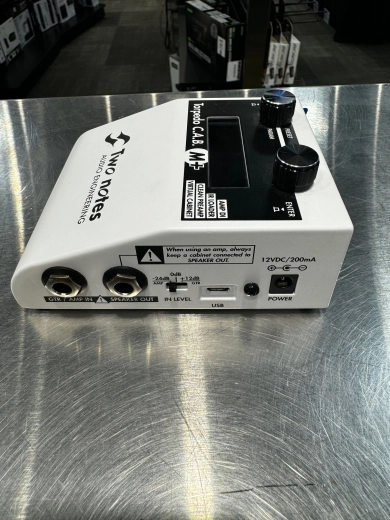

Input / Output
Amp/Inst/Line Input: 1/4" Jack balanced (TRS)
Aux In: 1/8" (3.5mm) TRS Jack
Speaker output*: 1/4" Jack balanced (TS)
*Unprocessed, unbuffered, directly connected to Amp In
DI output: XLR balanced
Line output: 1/4" Jack balanced (TRS)
Headphones output: 1/8" Mini-Jack (TRS)
USB connector: USB 2.0 Micro-B
Memory card: 256Mb Micro-SD included, Up to 32Gb cards supported
Digital Audio
AD/DA Converters: Studio-grade 24 bits / 96 kHz
Bandwidth (-1dB): 30 Hz 19 kHz
Signal-to-noise ratio: 91 dB
Internal Processing: 32 bits floating-point
Latency: 2.2 ms (Line Input to Line Output)
Power
Power adapter: DC Jack 2.1mm, negative center
Input voltage: 12V DC
Power consumption: Approximately 2W
Current consumption: 200mA
Dimensions & weight
Dimensions (W x D x H): 12.1cm x 10cm x 6cm / 4.8" x 4" x 2.4" (Including connectors and knobs)
Weight: 450 g / 0.99 lbs
*If you have an original C.A.B. M and update your firmware to C.A.B. M+ (for FREE), you keep your existing 32 virtual cabinets from your original purchase and enjoy the benefits of the upgrade.
